TECHNICAL PASSPORT

Dishwasher

Connection Of Drain Hoses

Insert the drain hose into a drain

pipe with a minimum diameter of 4 cm,

or let it run into the sink, making sure

to avoid bending or crimping it. The

height of drain pipe must be less than

1000mm. The free end of the hose must

not be immersed in water to avoid the

back flow of it.

Please  securely  fix  the  drain  hose  in

either position A or position B.

How  to  drain  excess  water  from

hoses

If the connection to the drain pipe is

positioned higher than 1000 mm, excess

water may remain in the drain hose. It

will be necessary to drain excess water

from the hose into a bowl or suitable

container that is held outside and lower

than the sink.

Water outlet

Connect the water drain hose. The

drain  hose  must  be  correctly  fitted  to

avoid water leaks. Ensure that the water

drain hose is not kinked or squashed.

Extension hose

If you need a drain hose extension,

make sure to use a similar drain hose.

It must be no longer than 4 meters;

otherwise the cleaning effect of the

dishwasher could be reduced.

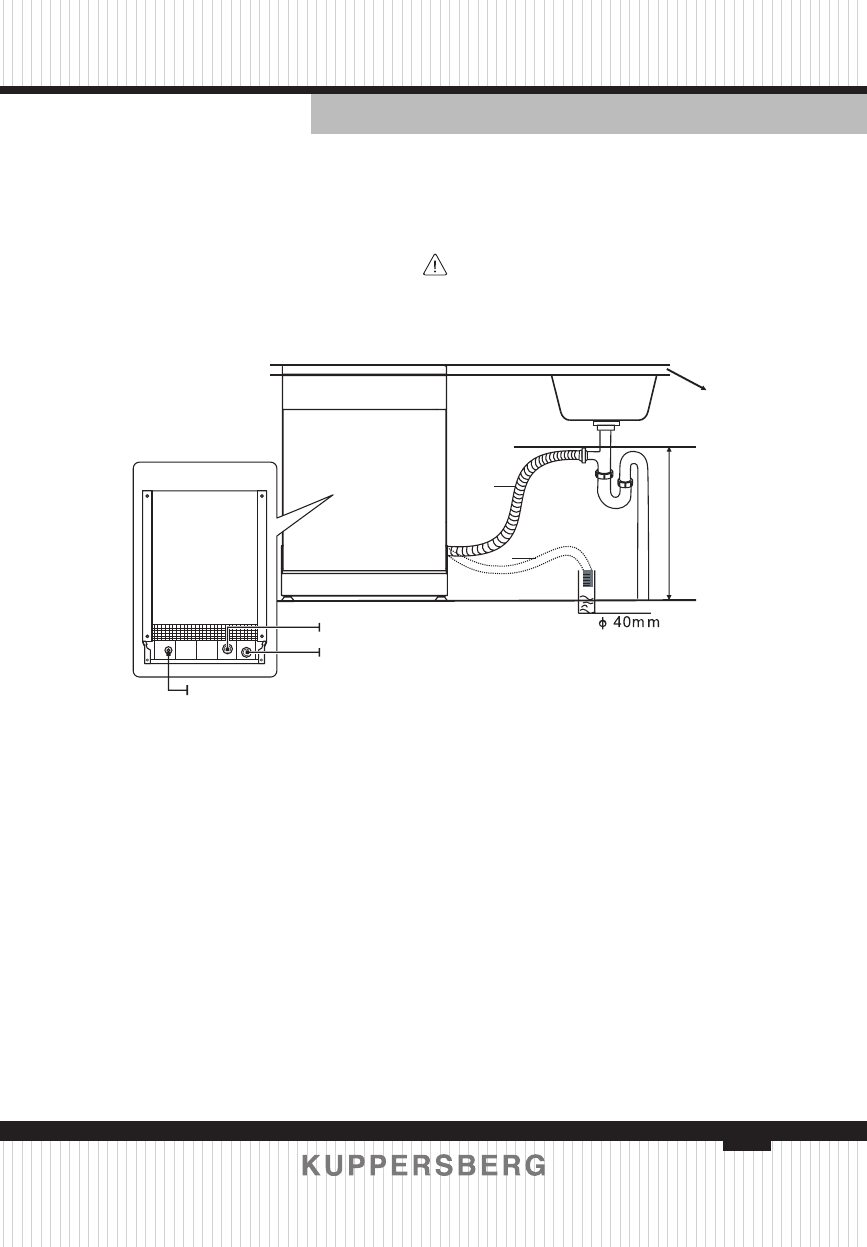

Syphon connection

The waste connection must be at a

height less than 1000 mm (maximum)

from the bottom of the dishwasher.

Back of
dishwasher

Counter

MA

X 1000mm

Drain hose

Mains Cable

Water Inlet
Drain Pipe

A

B
