60

GB

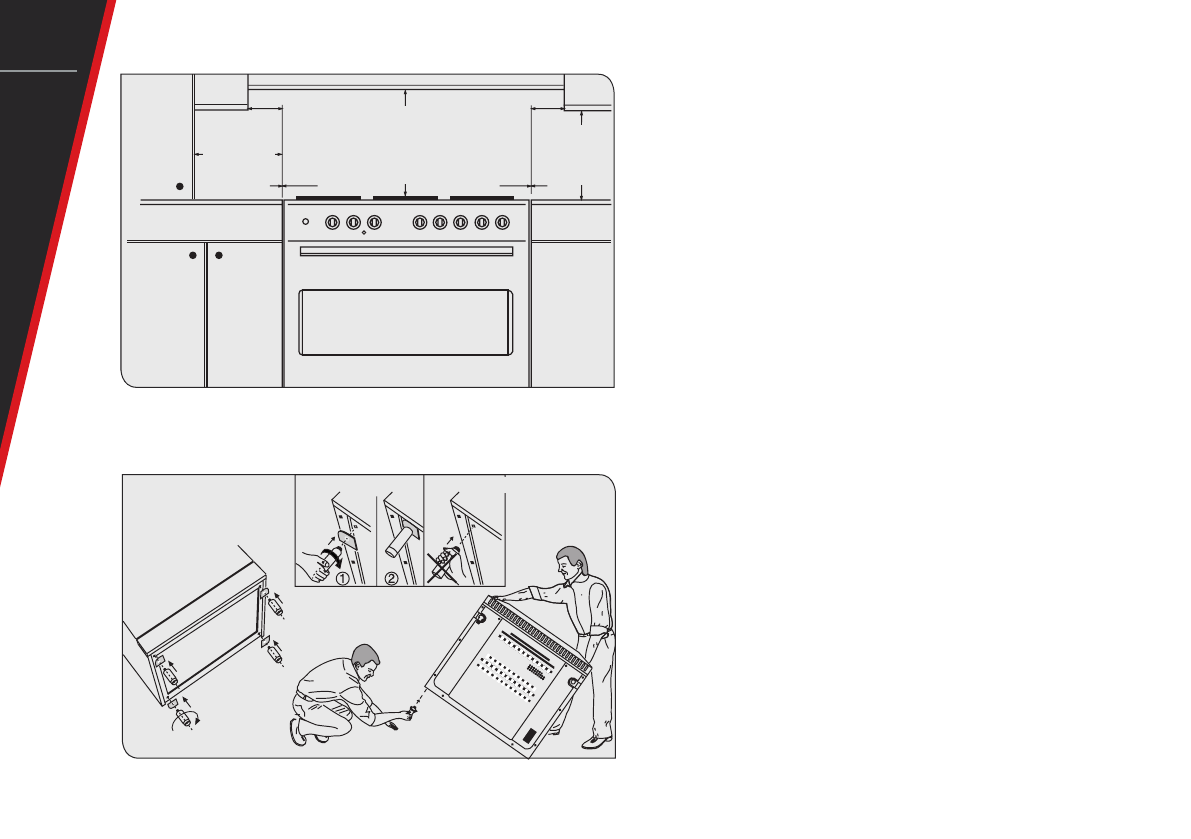

The cooker is fitted with 4 legs (fig. 8).
Adjustable height only for some models.

ROOMS VENTILATION

GAS APPLIANCES

This appliance is not connected to a device to vent the combustion
products. It must therefore be installed and connected in
conformity with the installation standards in force.
Particular attention must be paid to the standards on ventilation
of the room.

VENTILATION OF ROOMS

Remember that this appliance can be installed and work in
well ventilated rooms only, according to the standards in force,
such as to allow, with openings on the external walls or with
special ducts, a correct natural or forced ventilation

ensuring

permanently and sufficiently

both the entry of the air needed

for correct combustion and the removal of spent air.

In particular when there is only this gas appliance in the room,
there must be a hood over the appliance to ensure the natural
and direct removal of spent air, with a vertical straight duct of
length equal to at least twice the diameter and a minimum section
of at least 100 cm

2

 .

For the indispensable entry of fresh air into the room there must
be a similar 100 cm

2

 opening directly to the outside, situated at

a height near floor level so that it is not blocked either inside or
outside the wall and so as not to cause disturbances to correct
burners combustion and to the regular removal of spent air and
with a difference of height with respect to the outlet opening of at
least 180 cm.

min. 50 mm

min. 50 mm

min. 400 mm

min. 100 mm

min. 650 mm

«0» mm

«0» mm

OK

NO

Fig. 8
