www.timberk.com • electric oil filled radiator

4

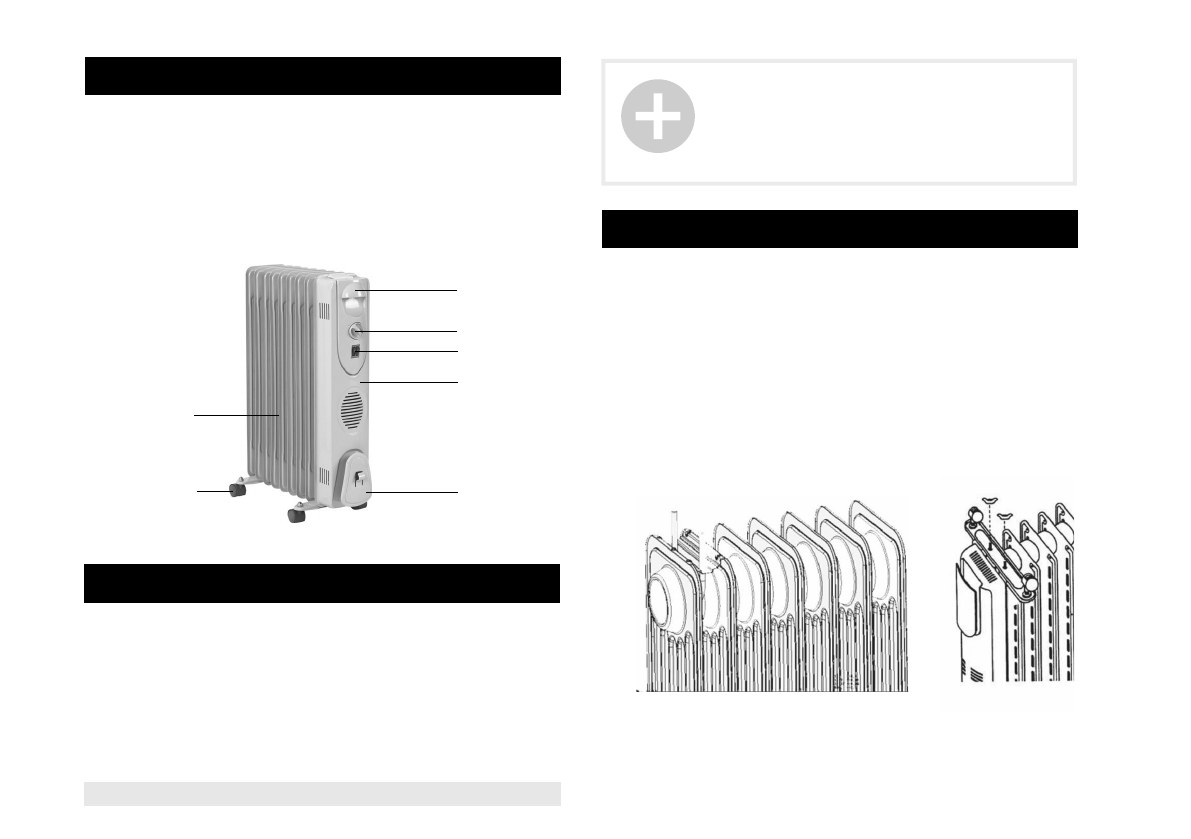

1. Handle for moving
2. Thermostat hardle
3. Power mode switcher
4. Wheel
5. Front cover
6. Radiator sections
7. Cord holder

4. RADIATOR DESCRIPTION

1. Oil-filled radiator - 1 pc

2. Roller wheels, assembled - 2 pcs

4. Finger nut - 1 set

5. User manual - 1 pcs

6. Guarantee slip - 1 pcs

7. Packing - 1 pcs

Fig. 1

5. DELIVERY SET

1. Unpack the radiator and roller wheels and remove all the packaging
material.

2. Overturn the radiator on a mat or no soft surface, to avoid damage to
lacquer coating.

3. Install wheel plates on the lower part of radiator sections, into two fixed
supports.

4. Draw up two finger nuts on one side and two finger nuts on the other - in
clamp extensions passed through the wheel plate supports, after making
sure that 2 openings in the wheel plate match together with the clamp
extensions (see Figure 3).

5. Turn the radiator back and tip it up.

6. ASSEMBLY AND INSTALLATION

NOTE:

Design and technical characteristics of the convector
heater, as well as its complete set may be changed by
the manufacturer without prior notification, when it is
needed to improve its quality.

Fig. 2

Fig. 3

3

2

5

7

6

4

1
