Dear Customer!

Thank you for your good choice! You purchased a Timberk oil filled radiator.

We did everything for the unit to operate reliably for a long time.

Timberk electric oil filled radiator is designed to heat the air and create a

comfortable  environment  indoors  during  cold  season  (early  spring,  fall,

winter).  The  radiator  is  very  easy-to-use,  easy  to  install,  and  also  has  an

increased  heat  transfer  and  an  efficient  air  flow  distribution.  Besides,

Timberk Professional oil filled radiators are additionally equipped with an

air ionizing function. The built-in air ionizer can operate independently of

the air heating mode.

You  must  install  the  oil  filled  radiator

only  vertically

  and  only  on  a  rigid

surface (for example, on the floor) in a place, where it is possible to connect

to 220 V single-phase power supply wiring

with an earth circuit.

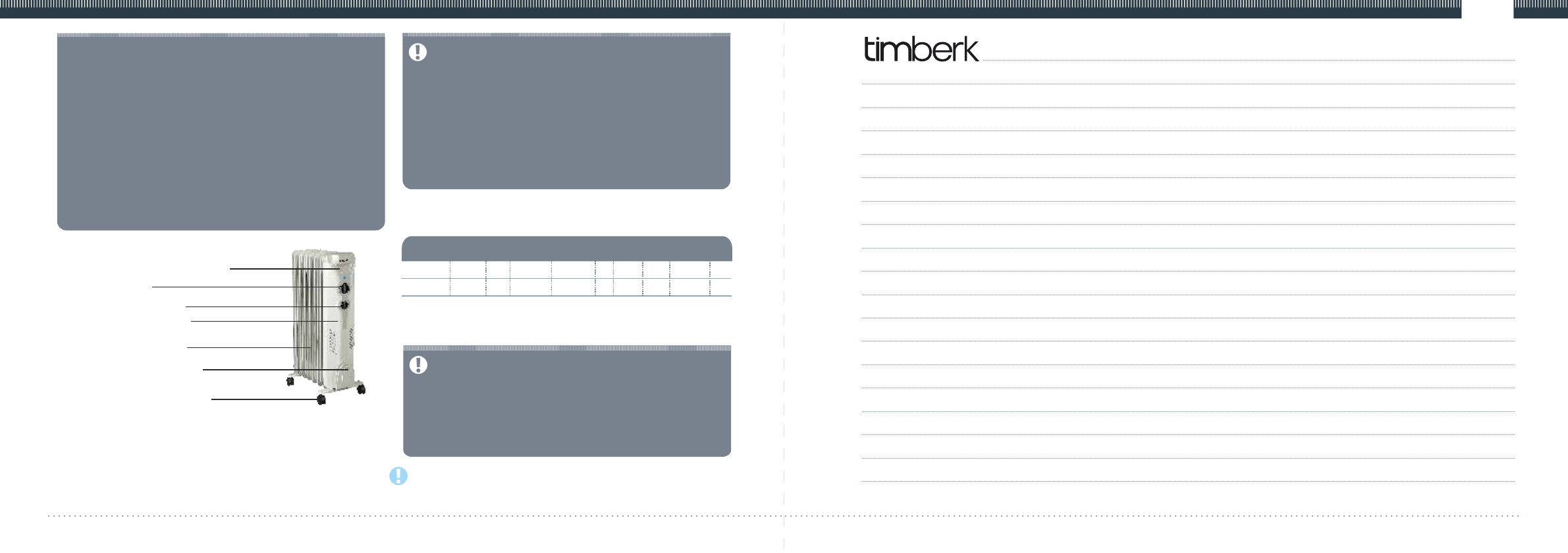

Appearance and components

.

Assembly.

1. Turn the appliance upside down and install the wheel supports to the

first and last elements of the radiator.

2. Fix the wheel supports using the provided U-shaped brackets and

finger nuts. For that, pass the U-shaped bracket under the intersectional

connecting element of the radiator, and then connect the bracket with

the wheel support and tighten the finger nut up to stop.

3. Turn the appliance back to the correct position and place it vertically

onto the surface.

WARNING!

The  appliance  should  be  placed  far  away  from  inflammable  or  easily

deformable objects.
-  Exclude  damage  of  the  appliance  surface  with  sharp  objects,  since

scratches on the painted coating may lead to occurrence of rust (metal

corrosion).

- During use, the appliance sections are heated up to high temperature,

therefore, please try to touch nothing except for knobs and switches.
- Do not dry wet clothes or any other things on the appliance surface,

since it may result in incorrect operation of the thermostat and disable

the appliance.

Do not cover the appliance during operation.

Specifications*

*

Fins can be filled by oil with a little difference from lot to lot. So, indicate net weight of device

approx only. Please, note this.

Precautions

.

1. Read this manual carefully prior to use of the unit to get a detailed

understanding of the features of oil filled radiators.

Handle for convenient movement of the radiator

Power keys of operation modes

with activation indicators

Thermostat control knob

Roller wheels for movement of the radiator

Front plate of the radiator body

Radiator sections

Power cord holder

2

www.timberk.com

electric oil felled radiator

11

www.timberk.com

electric oil felled radiator

220/50

Rated

current

Rated power

V/Hz

Model

Dimensions

(mm)

6,8

9,1

600/900/1500

800/1200/2000

7

9

620 235 340

620 235 420

220/50

I

2

0

TOR 21.1507 DPX

TOR 21.2009 DPX

Electric

protection

class

I

Power

operation

mode (W)

Fins

 Water

protection

class

I

2

0

I

~Net

weight

(

kg

)*

8,6

10

,

3

The manufacturer reserves the right to change the set-list of the

device (including liquid and powder components) for different

supplies without prior notice. The changes either in no way

influence the basic technical parameters of the device or may

improve them, and also not violate the legislation or quality

standards of the countries of manufacture, transit and selling.
The changes in the set-list may result in changing of the weight

and dimensions of the device, but not more than by +\- 5-20%

(depending on the product category)

Power

consumption

(W)

1500

2000
