Thermozone AD  200 A/E

  25

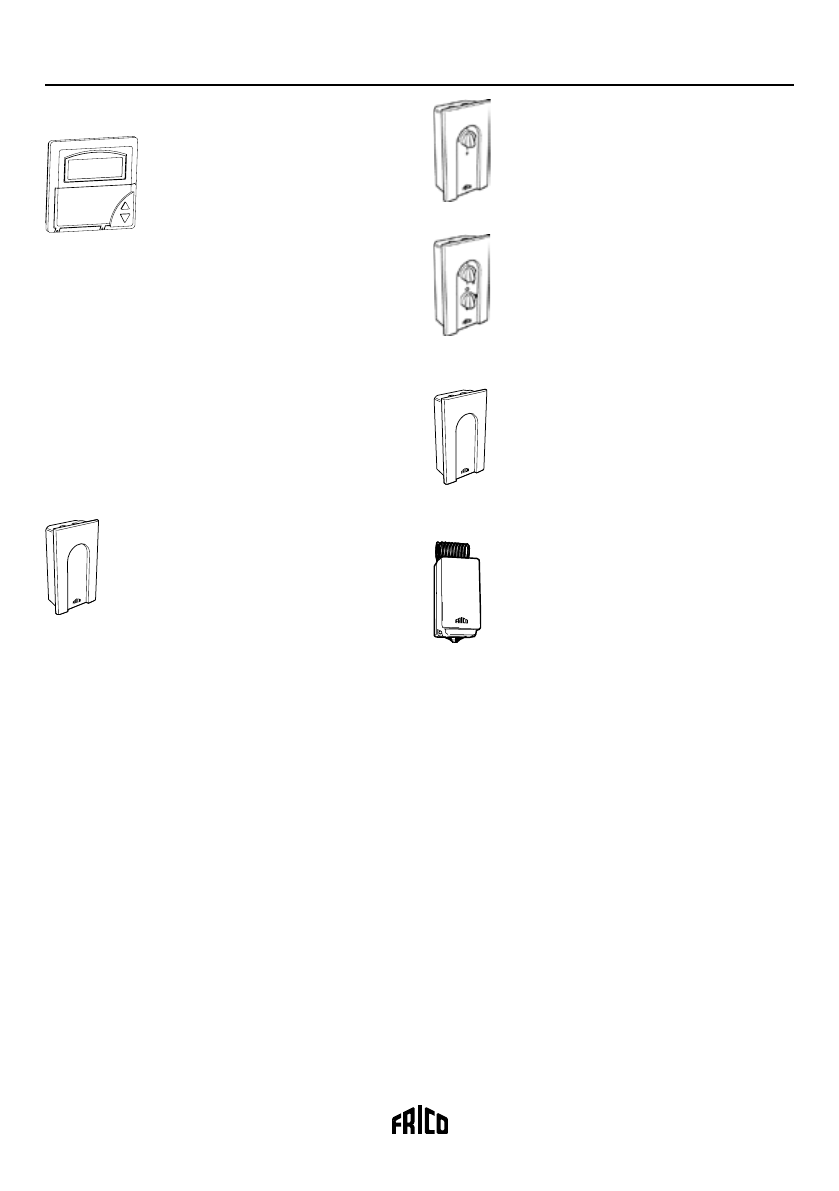

KRT2800, 2-step capillary tube
thermostat

2-stage thermostat with two change-
over contacts for heat regulation
or fan operation. with adjustable
temperature difference between the

steps (1– 4°C) and internal setting for

a temperature range 5–40°C.

Protection class: IP55

CB30N,

Control panel

 (3-step)

Wall mounted manual three step regulation
of the fan speed.

Controls a maximum of 6 units (max. cur

-

rent 10A).
Protection class: IP44

RTI2, electronic 2-step thermostat

RTI2 with adjustable temperature dif-

ference between the steps (1– 10°C)

and internal  setting for a temperature

range 5–35°C.

Protection class: IP44

Description

Typ

HxBxD

  [mm]

Control panel (3-step)

CB30N

155x87x50

Control panel

CB32N

155x87x50

Air curtain regulator, IP30

ADEA

89x89x26 (display unit)

External control board

ADEAEB

254x200x100

External room sensor

ADEAIS

75x75x27

Magnetic door contact with time delay

MDC

155x87x43

Electronic 2-step thermostat

RTI2

155x87x43

Capillary tube thermostat

KRT2800

165x60x57

False ceiling grille (1192 x 192)

   22003

1192x192

False ceiling grille (1515 x 192)

   22004

1515x192

Pendulum brackets (2 pcs)

ADPF1

Suspension set

 ADPK1

Accessories

CB32N, Control panel

Wall mounted manual three step
regulation of the fan speed and two
step regulation of the output.

Controls a maximum of 6 units (max.

current 10A).
Protection class: IP44

GB

ADEA, air curtain regulator

ADEA is an advanced and user friendly regulator for air
curtains. ADEA is ready to run directly after installation
on account of the pre-programmed parameters. An out-
door sensor, room sensor and door contact govern the
regulator, which adapts the heat and fan speed. In its
basic design the fan speed is controlled in 3 steps, but

can, via a 0-10V signal, govern an external controller

(ADSR54 or frequency inverter) to provide fully variable
control. A control board needs to be added,

ADEAEB

(IP55) for external mounting. One ADEA is needed for

each opening, but it may control several air curtains.
Protection class: IP30

MDC, magnetic door contact with time delay

Starts the air curtain or increases from low to high speed
when the door is opened. When the door is closed,
the fan continue running the preset time (2s –10 min).
Prevents the fan from starting/stopping continuously and
is especially suitable for doors that are frequently ope-
ned. Three alternating volt-free contacts 10A, 230V~.
Protection class: IP44
