Heating element

KSD thermostat

KSD thermostat

Temperature sensor

Switch

Tip over switch

5. SCOPE OF DELIVERY

1. Convector – 1 pc.
2. Operation manual – 1 pc.
3. Warranty card - 3 pc.
4. Packing – 1 pc.
5. Castor wheel stand – 2 pc.
6. Wall mount bracket – 2 pc.
7. Rubber emphasis in a wall – 1 pc.

8. Screw – 3 pc.

Operation guide

1. STARTING
1.1 Take out the heater from the carton carefully. Please save the
carton for off-season storage.

1.2 Make sure the power switch(13) Is In the OFF position before
plugging it in.
1.3 Ensure the heater is fully assembled according to the Mounting
Guide.

1.4 It’s better not to use the same electric outlet with other high
wattage electrical appliances in order to avoid overloading your circuit.

6. OPERATION OF THE UNIT

Fig. 3  Control panel

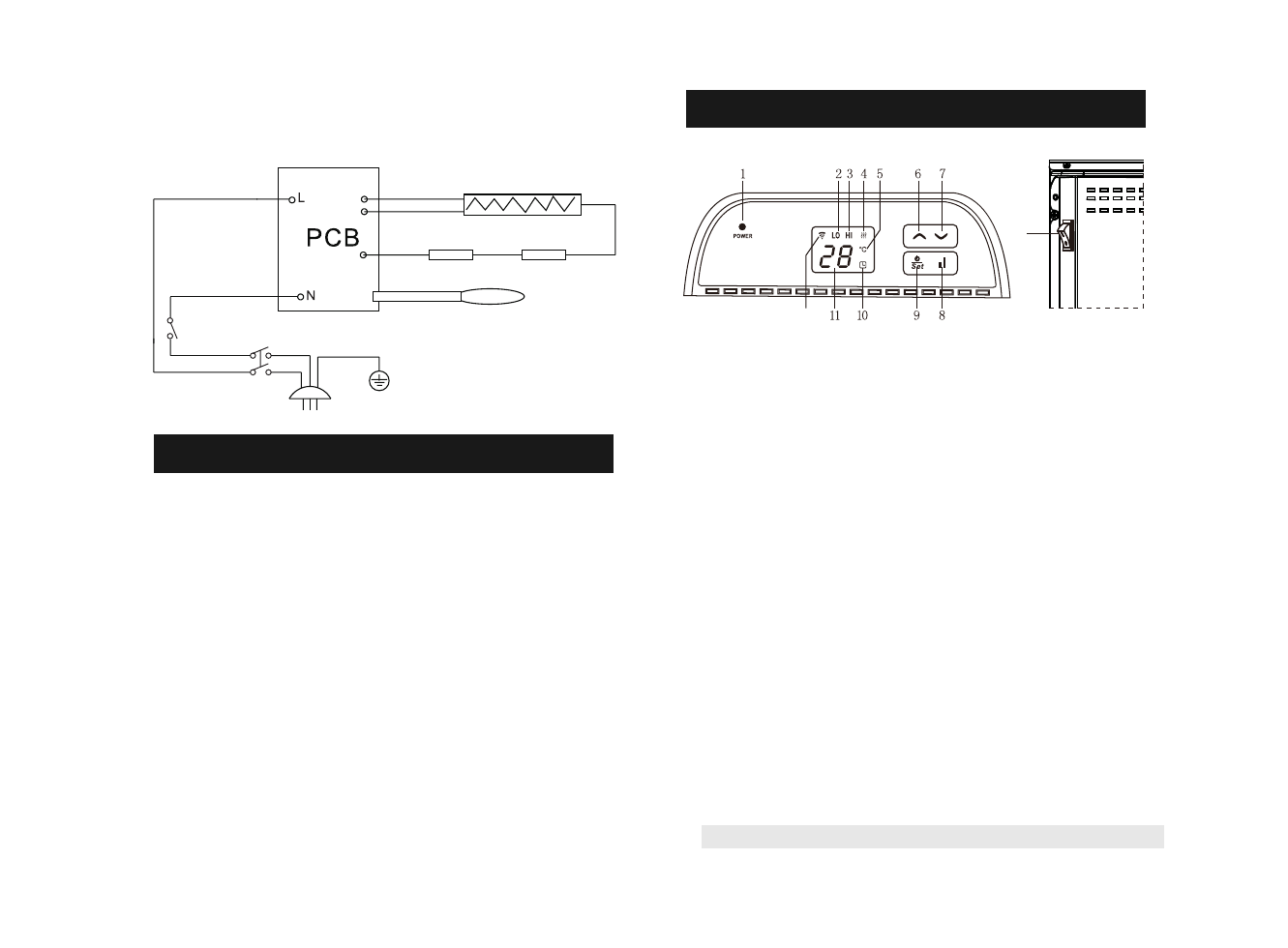

Circuit diagram

Fig. 2  Electric circuit

13

12

1 . P o w e r L i g h t
2 . L o w P o w e r A c t i v e
3 . H i g h P o w e r A c t i v e
4 . H e a t i n g I n d i c a t o r
5 . Te m p e r a t u re ° C I n d i c a t o r
6 . U p S e l e c t
7 . D o w n S e l e c t

8 . F u l l / H a l f P o w e r S e l e c t
9 . P o w e r & S e t t i n g B u t t o n
1 0 . T i m e r I n d i c a t o r
1 1 . T i m e D i s p l a y
1 2 . W i - F i D i s p l a y
1 3 . P o w e r S w i t c h

2. Power on
Plug in the unit, turn on power switch “13”, the power indicator lights
up after a short buzz. Press 9 firstly to turn on the unit, room
temperature is displayed. The temperature light will be on, and the
default temperature is factory-set 35°C.
