iNSTRUCTioN MANUAl

FM CloCk RAdio WiTH TEMPERATURE

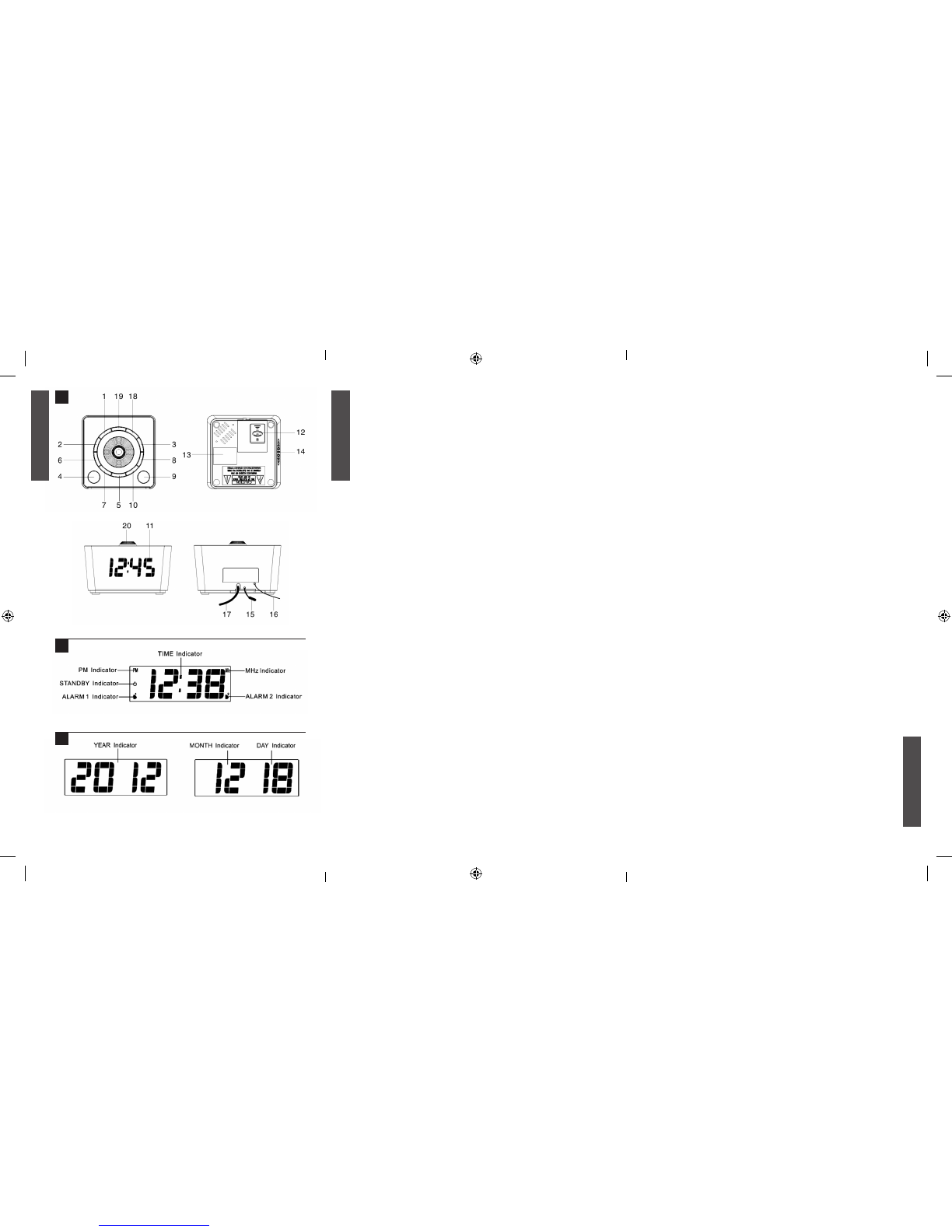

loCATioN oF CoNTRolS (see fig. 1)

diSPlAY dESCRiPTioN (see fig. 2)
PoWER CoNNECTioN

Plug the AC power cord to a household outlet AC source. This unit is equipped with a

battery back up system, it requires a 1x3V CR2032 Flat Lithium battery (Not included).

Insert the battery in the battery compartment, making certain that the positive and

negative (+ and -) battery terminals are attached to the corresponding terminals on the

plate in the battery compartment. If an AC power failure occurs, the clock automatically

switches to the battery power supply, the clock and timer memory continue running. When

the AC power resumes, the clock switches back to AC again.

TiME ANd CAlENdAR MANUAl SETTiNg

Press CLK.ADJ.TEMPERATURE button (5), in standby mode, and keep depress

over 2 seconds to enter time set mode, after enter the setting mode, press CLK.ADJ.

TEMPERATURE button (5) to change the mode cycle as follows :

Normal



 Year



 Month



 Day



 12/24h



 Real time Hour



 Real time Min



 Normal

Action (during data adjustment):

•  Press <</Tune- button (6) to adjust data backward.

•  Press >>/Tune+ button (7) to adjust data forward.

•  Keep depress << or >> button for 2 seconds to enable auto forward.

AlARM SETTiNg

1. SETTiNg AlARM 1 ANd AlARM 2

Press alarm set button (2/3) during normal mode and keep depress over 2 seconds to

enter alarm set mode, after enter the setting mode, press alarm set button (2/3) to change

the mode cycle as follows :

Normal



 AL Hour



 AL Min



 AL weekday Alarm



 AL wake beep



 AL wake radio



AL wake radio volume



 Normal.

Select alarm weekday mode as follows

1-5: Monday to Friday

1-7: Whole week

6-7: Saturday & Sunday

1-1: One day of week

Action (during data adjustment):

•  Press <</Tune- button (6) to adjust data backward.

•  Press >>/Tune+ button (7) to adjust data forward.

•  Keep depress << or >> button for 2 seconds to enable auto forward.

2.  AlARM dURATioN ANd SNooZE FUNCTioN

Alarm Duration – Beep alarm or radio alarm will continue output for 30 minutes if no key

press, then it will stop automatically and wait for same alarm time on next day.

Action for Snooze:

•  During alarming, press Snooze button (4) will enable snooze function, Beep alarm or

Radio alarm will stop.

•  Snooze interval is 9 minute (not include second offset)

•  Snooze will continue unless press ON/OFF button to alarm off of Buzzer alarm or

Radio Alarm stop automatically after 30 minutes.

3. NAP TiMER FUNCTioN (CoUNT doWN TiMER)

During radio off mode, press MEMORY.SET/MEMORY+/NAP button (1) to turn on NAP

mode, the NAP time will keep by 5 seconds; within 5 seconds and press MEMORY.SET/

MEMORY+/NAP button (1) button can change the duration from 90min – 10min.

The alarm buzzer will sound for 30min and then shut off automatically. To stop the alarm

buzzer, press the ON/OFF button (9).

Press the MEMORY.SET/MEMORY+/NAP button (1) has no effect during alarm operation.

Press ON/OFF button (9) to cancel NAP function.

Note: The NAP does not include the wake up light function.

liSTENiNg To RAdio

Press the ON/OFF button (9) to turn the unit on.

Use the Tune+ or Tune- button to select the desired FM station. If you press and hold the

Tune+ or Tune- button for one second, the release, the unit will automatically scan to the

next broadcasting station.

Press the ON/OFF button (9) to turn the radio OFF.

1.  To SET/RECAll THE RAdio PRESETS

Press the ON/OFF button (9) to turn the unit ON.

Use the Tune+ or Tune- button to select the desired FM station.

Press the memory/memory+ button; “P01” will blink in the display.

Press the memory/memory+ button again to set the preset.

Repeat steps 2 through 4 to set more presets.

The unit can preset 10 stations totally for FM.

When “P01-P10” is blinking, press the Tune+ or Tune- button to select the preset number.

Note:

Ensure that the FM antenna is completely unrolled and extended for best FM reception.

2.  SlEEP oPERATioN

When listening to radio, press Snooze/Sleep button (4) to enter sleep mode. You can just

adjust the sleep timer from 90mins to 15mins by pressing the Snooze/Sleep button (4).

The unit will automatically turn off after the selected time.

oTHER FUNCTioNS

1.  diSPlAY oN/oFF FUNCTioN

•  Press MEMORY. SET/MEMORY+/DISPLAY AUTO ON-OFF/NAP button (1) for 3

seconds, the LED display Indicator will light on, the LED display will turn off after 15

seconds automatically. Press any button to maintain the LED display for 15 seconds.

•  Press MEMORY. SET/MEMORY+/DISPLAY LIGHT AUTO ON-OFF/NAP button (1) for

3 seconds, the LED display Indicator will light off to cancel this function.

2.  diMMER CoNTRol

The DIMMER switch (4) allows you to set the brightness of the LED display.

1.  MEMORY/MEMORY+/NAP/AUTO OFF

displaY

2.  alarM 1 on/oFF sEt

3.  alarM 2 on/oFF sEt

4. snooZE/slEEp/diMMEr

5.  CLOCK.ADJUSTEMENT/

tEMpEraturE

6.  <</TUNE-/YEAR/MONTH/DAY

7.  >>/TUNE+/DST/C-F

8.  VoluME up/displaY auto

changE on/oFF

9.  ON/OFF

10. VOLUME DOWN

11. displaY

12. BattErY  coMpartMEnt

13. rating  laBEl

14. spEakEr

15. TEMPERATURE SENSOR (IN DOOR)

16. FM antEnna

17. AC POWER CORD

18. PROJECTION TIME 180° FLIP/TIME-

tEMpEraturE

19. PROJECTION ON/OFF

20. FOCUS ADJUSTMENT FOR

PROJECTION UNIT
