Installation

Installation and operating instructions Wilo-Star-Z NOVA T

15

Engl

ish

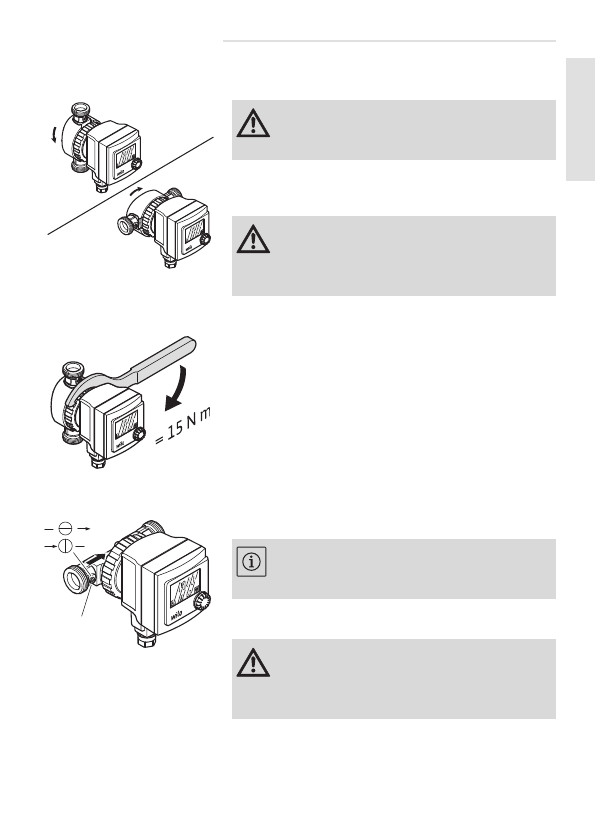

Turning the motor head

or removing it

3.

Release the union nut - unscrew it completely
if necessary.

4.

Turn the motor head so that the
Wilo-Connector points downwards.

Tightening the union nut

5.

Retighten the union nut using a suitable tool.

Opening the stop valve

6.

Turn the slot (1) with a screwdriver so that it is
parallel to the direction of flow.

7.

Fit the thermal insulation shell.

CAUTION:

Do not damage the housing

seal. Replace damaged gaskets.

CAUTION:

If the position is wrong, water

can enter the pump and destroy the motor or
electronics.

1

NOTICE:

To close, turn the slot so that it is

perpendicular to the direction of flow.

CAUTION:

The plastic parts of the motor

may not be heat-insulated in order to protect
the pump from overheating.
