Electrical
Installation must comply with all applicable electrical codes
and be properly grounded (earthed).
Locate the electrical supply as shown in the illustrations on
the following pages. The receptacle may also be located
in an adjacent cabinet within reach of the power cord. A
separate circuit, servicing only this appliance is required. A
ground fault circuit interrupter (GFCI) is not recommended
and may cause interruption of operation.
ELECTRICAL REQUIREMENTS
Electrical Supply
220-240V, 50Hz
Service
1600 Watts
Power Cord
1.2 m
IMPORTANT NOTE:
Connection of this appliance should be
through a fused connection unit or a suitable isolator, which
complies with national and local safety regulations. The
on/off switch should be easily accessible after the appli-
ance has been installed. If the switch is not accessible after
installation (depending on country) an additional means of
disconnection must be provided for all poles of the power
supply. When switched off there must be an all pole contact
gap of 3 mm in the isolator switch. This 3 mm contact dis-
connect gap must apply to any isolator switch, fuses and/or
relays according to EN60335.

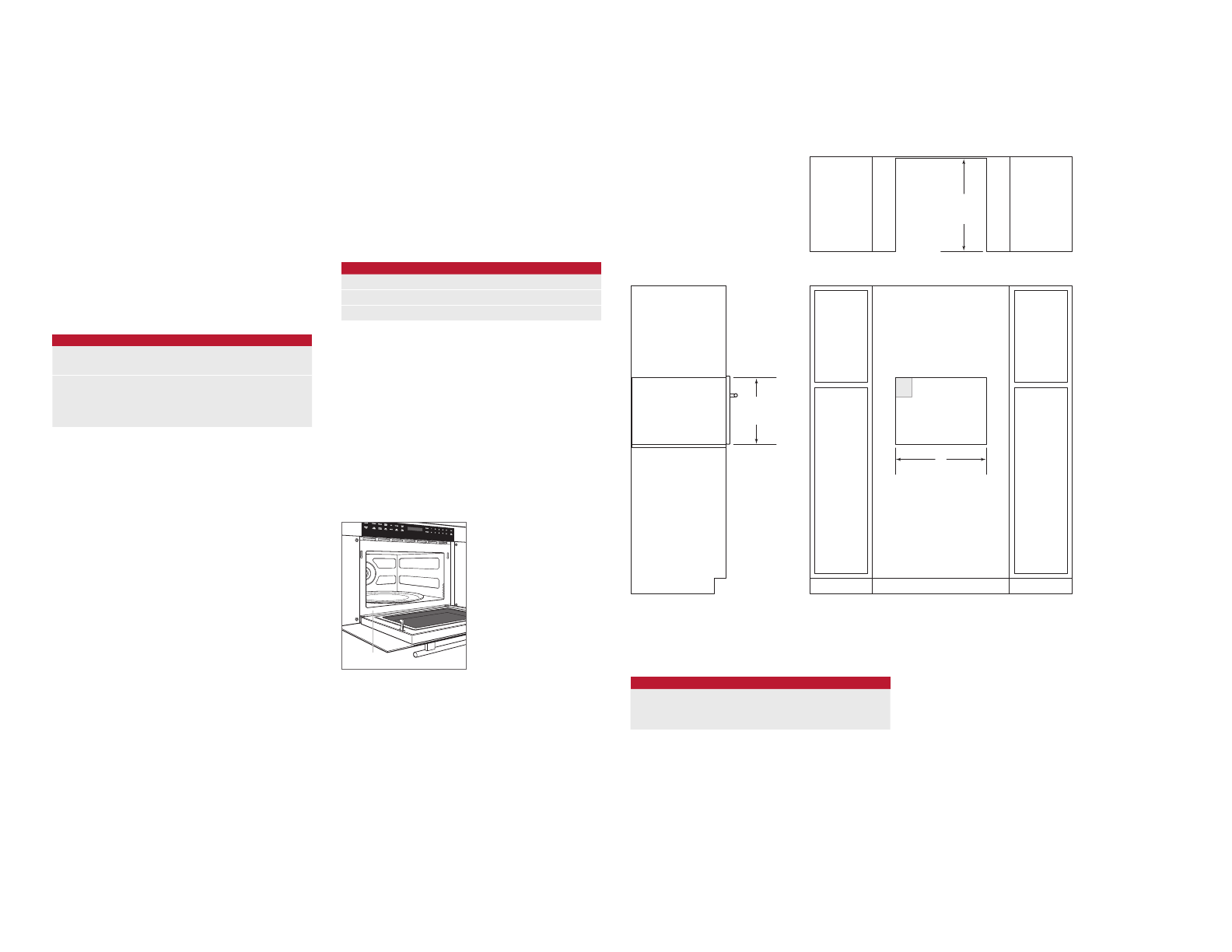

SPECIFICATIONS
Installation Requirements
The drop down door microwave oven can be installed in a
standard or flush inset application.
Finish the edges of the opening. They may be visible when
the door is open.
For standard installations, face trim will overlap stiles and
rails. Refer to the chart.
For flush inset installations, a minimum 3 mm reveal is
required on all sides. To ensure consistent reveals, each
corner of the opening must be exactly 90°.
If the drop down door microwave oven is installed above or
below a Wolf E series oven in a flush inset application, a 6
mm reveal is required.
INSTALLATION REQUIREMENTS
BASE SUPPORT
MIN
Drop Down Door Microwave
57 kg
TRIM OVERLAP
610 mm MODEL
762 mm MODEL
Top
5 mm
5 mm
Bottom
0 mm
0 mm
Sides
18 mm
98 mm
Drop Down Door Microwave Oven
STANDARD INSTALLATION
OPENING WIDTH
MICROWAVE OVEN
W
610 mm Model
562 mm
762 mm Model
562 mm
E
FRONT VIEW
SIDE VIEW
NOTE: 610 mm and 762 mm models require the same opening dimensions.
449 mm
OPENING
HEIGHT
548 mm
OPENING
DEPTH
TOP VIEW
W
OPENING WIDTH
Rating plate location.
RATING PLATE
