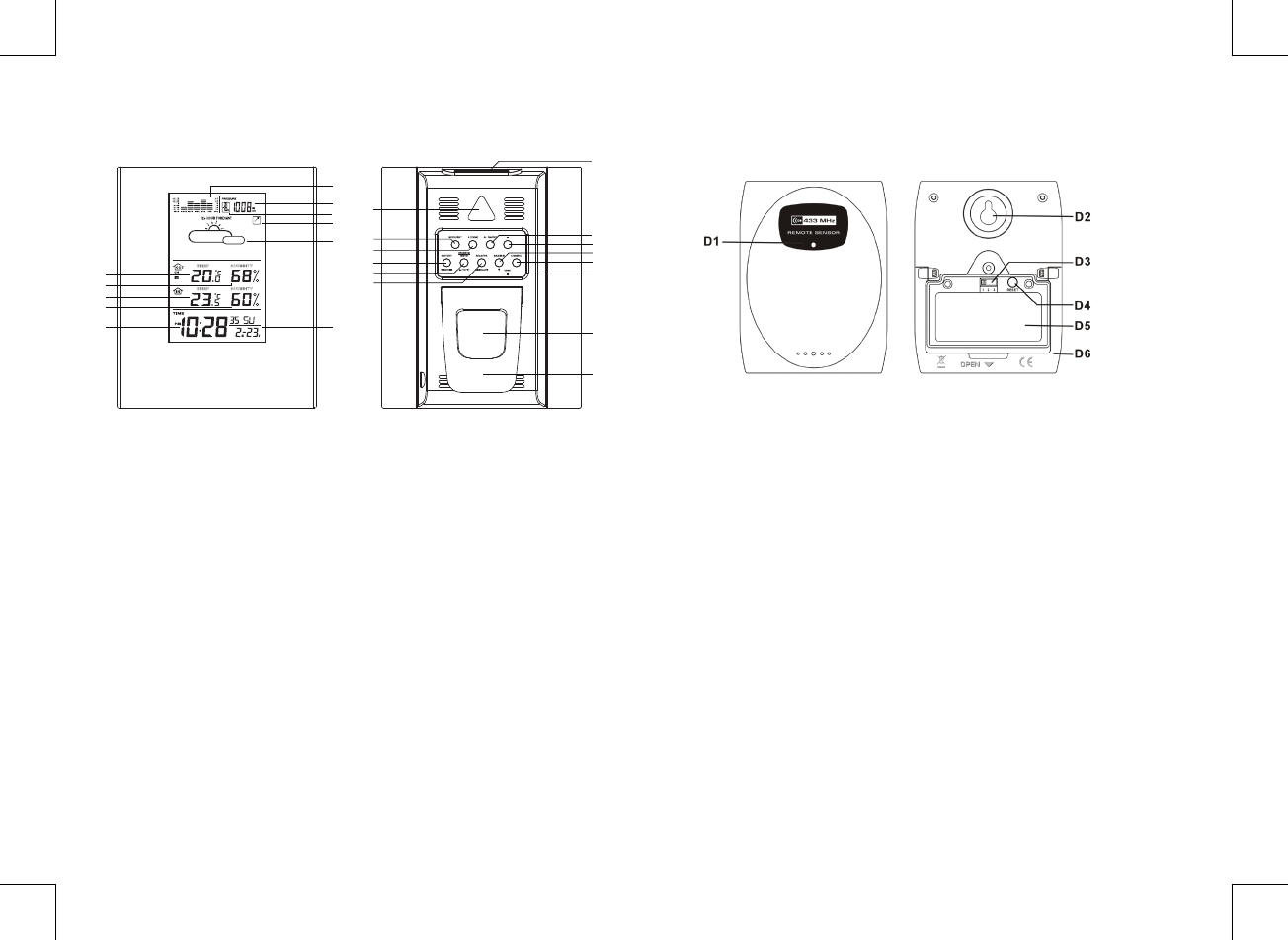

2. Main Unit Appearance

3. Outdoor Thermo Sensor

2.1 Part A- LCD

A1:   Outdoor Temperature
A2:   Outdoor Humidity
A3:   Indoor Temperature
A4:   Indoor Humidity
A5:   Time Display
A6:   Barometer Pressure Trend
A7:   Weather Forecast
A8:   Barometric Pressure Bar Graph
A9:   Past Hour (Pressure History)
A10: Absolute/ Relative Barometric

Pressure Reading

A11: Date, Day of Week

2.2 Part B- Buttons

B1:   “MODE/SET” button
B2:   “+ (12/24)” button

B3:   “ALARM ON/OFF” button
B4:   “-” button
B5:   “SNOOZE/LIGHT” button
B6:   “HISTORY/WEATHER” button
B7:   “HPA/INHG/MMHG/

▲

 (°C/ °F) button

B8: “RELATIVE/ ABSOLUTE” button

B9:   “MAX/MIN/

▼

” button

B10: “CHANNEL” button
B11: “RESET” button

2.3 Part C - Structure

C1:  Wall Mount Hole
C2:  Battery Cover
C3:  Stand

D1: Transmission Indication LED
D2: Wall Mount Hole
D3: Channel Select Switch
D4: “RESET” button
D5: Battery Compartment

D6: Stand

4. Getting Started:

4.1 Main Unit:

 •

  Slide open main unit battery compartment cover [C2]

 •

  Insert 3 x AAA batteries observing polarity [ “+” and “ –“ marks]

 •

  Replace main unit battery compartment cover [C2]

 •

  Use a pin to press the RESET [B11] button on the rear of the main unit, the main unit is

now ready for use

4.2 Outdoor Thermo Sensor

 •

  Batteries compartment (D5) of thermo sensor is locating behind the back cover,

unscrews the batteries cover to open.

 •

   Insert 2 x AAA batteries observing polarity [ “+” and “–“ marks]
