Hardware Installation

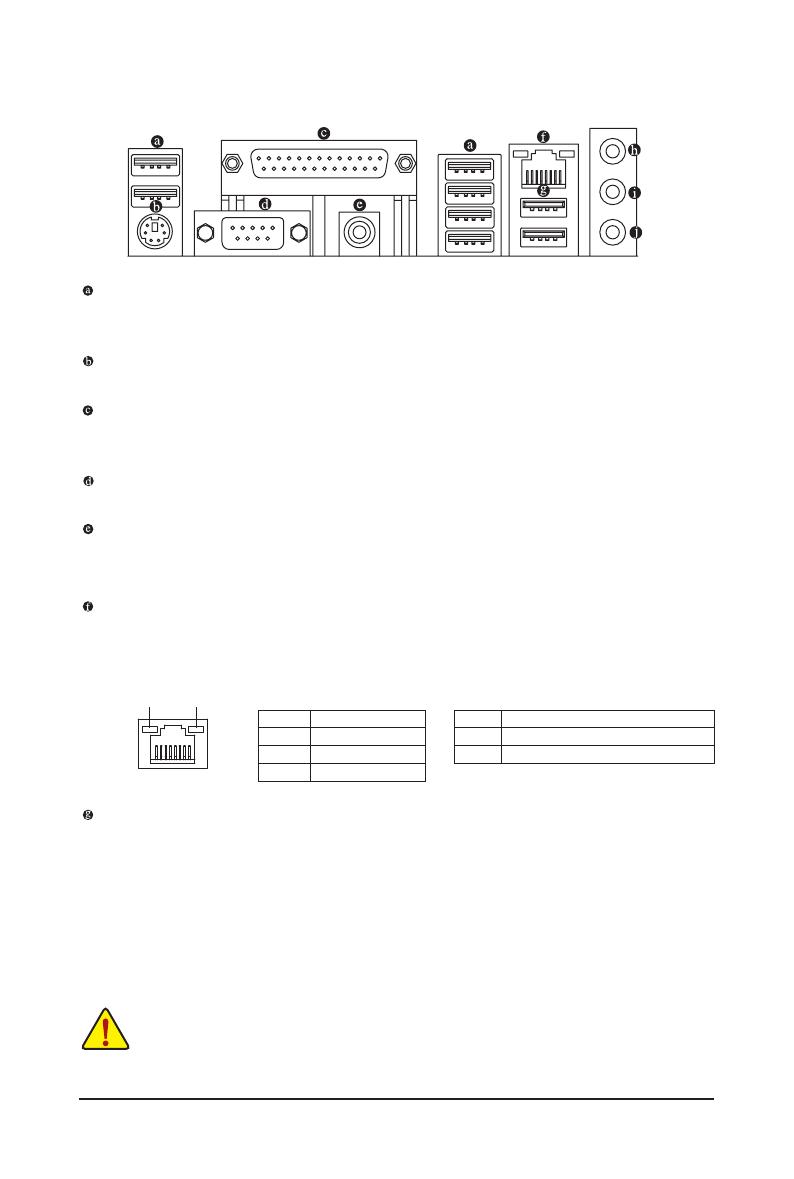

1-6  Back Panel Connectors

  USB 2.0/1.1 Port

The USB port supports the USB 2.0/1.1 specification. Use this port for USB devices such as a USB key

-

board/mouse, USB printer, USB flash drive and etc.

  PS/2 Keyboard/Mouse Port

Use this port to connect a PS/2 keyboard or mouse.

  Parallel Port

Use  the  parallel  port  to  connect  devices  such  as  a  printer,  scanner  and  etc.  The  parallel  port  is  also
called a printer port.

  Serial Port

Use the serial port to connect devices such as a mouse, modem or other peripherals.

  Coaxial S/PDIF Out Connector

This connector provides digital audio out to an external audio system that supports digital coaxial audio.
Before using this feature, ensure that your audio system provides a coaxial digital audio in connector.

RJ-45 LAN Port

The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following de-
scribes the states of the LAN port LEDs.

Activity LED:

State

Description

Blinking  Data transmission or receiving is occurring
Off

No data transmission or receiving is occurring

Connection/Speed LED:

State

Description

Orange

1 Gbps data rate

Green

100 Mbps data rate

Off

10 Mbps data rate

Activity LED

Connection/

Speed LED

LAN Port

•

When removing the cable connected to a back panel connector, first remove the cable from your

device and then remove it from the motherboard.

•

When  removing  the  cable,  pull  it  straight  out  from  the  connector.  Do  not  rock  it  side  to  side  to
prevent an electrical short inside the cable connector.

USB 3.0/2.0 Port

The USB 3.0 port supports the USB 3.0 specification and is compatible to the USB 2.0/1.1 specification.
Use this port for USB devices such as a USB keyboard/mouse, USB printer, USB flash drive and etc.
