Appendix

- 65 -

English

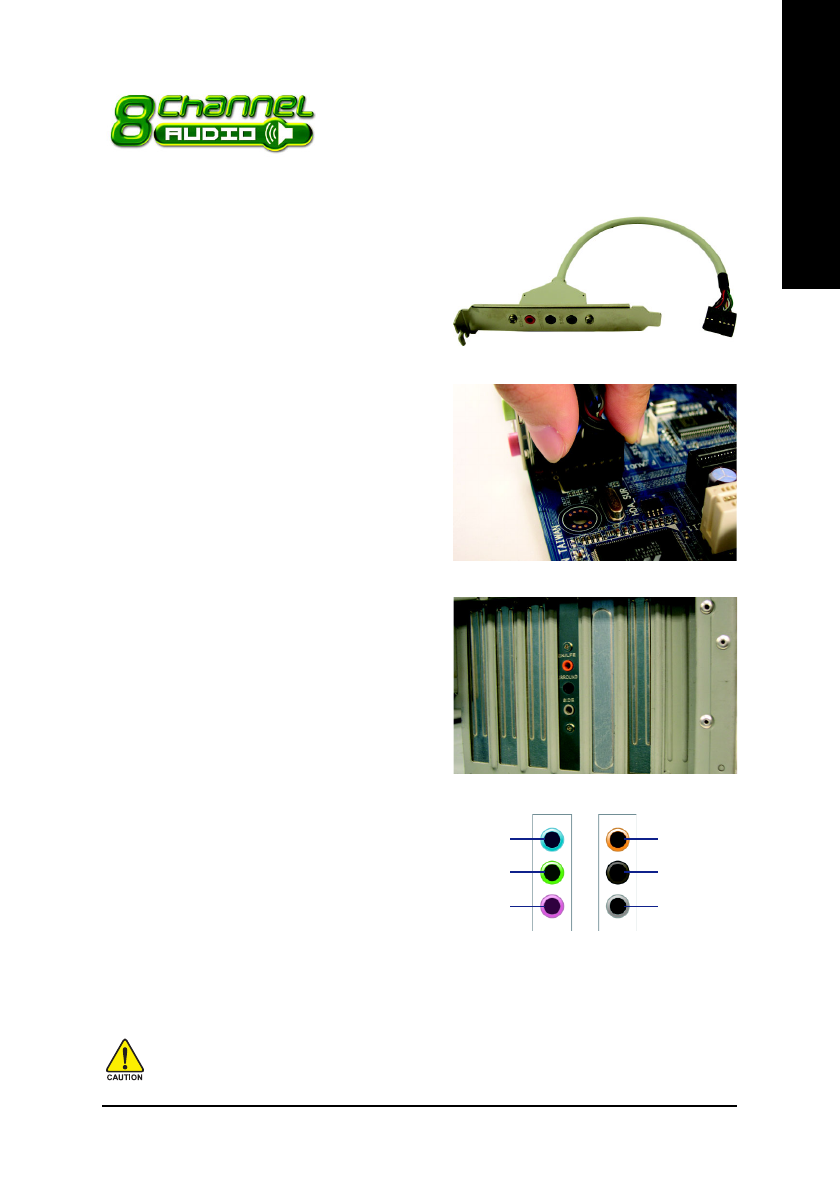

4-1-4 2- / 4- / 6- / 8- Channel Audio Introduction

This motherboard comes with three audio jacks. To set up multi-
channel surround sound, install an additional 5.1/7.1 surround
cable (optional) and enable the feature through the audio driver.

Installing the 5.1/7.1 Surround Cable (Optional)

T h e   5 . 1 / 7 . 1   S u r r o u n d   C a b l e   p r o v i d e s   c e n t e r /
subwoofer speaker out, rear speaker out, and side
speaker out audio jacks. To set up multi-channel
surround sound, this cable needs to be installed.

Step:
1. Connect the 5.1/7.1 surround cable connector to

the HDA_SUR header on the motherboard.

2 . Secure the cable's metal bracket to the chassis

back panel with a screw.

For the microphone to work correctly, you MUST connect it to either the default Mic In jack or
the Line In jack and configure it in the audio driver.

Audio Jacks Introduction

The optional 5.1/7.1 surround cable adds addi-
tional 3 audio jacks to the 3 onboard audio jacks.
The picture to the right shows the default speaker
settings for the 6 audio jacks. The jack retasking
capability of HD Audio allows users to change the
function for each jack through the audio driver.
For example, if a rear speaker is plugged into the
c e n t e r / s u b w o o f e r   s p e a k e r   o u t   j a c k ,   y o u   c a n
reconfigure the center/subwoofer speaker out jack
to function as a rear speaker out jack.

Line Out

(Front Speaker

Out)

° ¼ ³ â ¥ z
¿é¥X

Center/Subwoofer

Speaker Out

Line In

R e a r   S p e a k e r
Out

M ic I n

Side Speaker

Out

Onboard Audio
Jacks

Audio Jacks on 5.1/7.1
Surround Cable
