GA-8I945GMBX Motherboard

- 74 -

English

4-1-5 2- / 4- / 6- / 8- Channel Audio Function Introduction

This motherboard provide 6 audio connector. You are able to use 2-/
4-/6-/8-channnels audio feature by audio software selection.

Rear Speaker Out

Center/Subwoofer

Speaker Out

Side Speaker

Out

Line In

Line Out

(Front Speaker Out)

Mic In

Stereo Speakers Connection and Settings:

We recommend that you use the speaker with amplifier to acquire the best sound effect if the stereo output
is applied.

The default speaker settings for the 6 audio jacks are
as shown in the picture to the right. The jack retasking
capability supported by HD Audio allows users to
change the function for each audio jack by the audio
software provided. For example, if  a rear speaker is
plugged into the center/subwoofer speaker out jack,
you can change the center/subwoofer speaker out jack
to fucntion as a rear speaker out jack via the audio
software.

Note that if you wish to connect a microphone, you MUST connect it to the default Mic In jack for the
microphone to work correctly.

Please follow the steps to install the function. (Following pictures are in Windows XP)

HD Audio

With multiple built-in high quality digital-to-analog converters (DACs) that support audio output at up to 192
kHz/24-bit quality and multi-streaming applications, HD Audio is able to handle multiple audio streams (in
and out) simultaneously. Multi-channel audio experiences have become a reality so you can, for instance,
listen to MP3 music, have an Internet chat, make a telephone call over the Internet, and etc. all at the same
time.

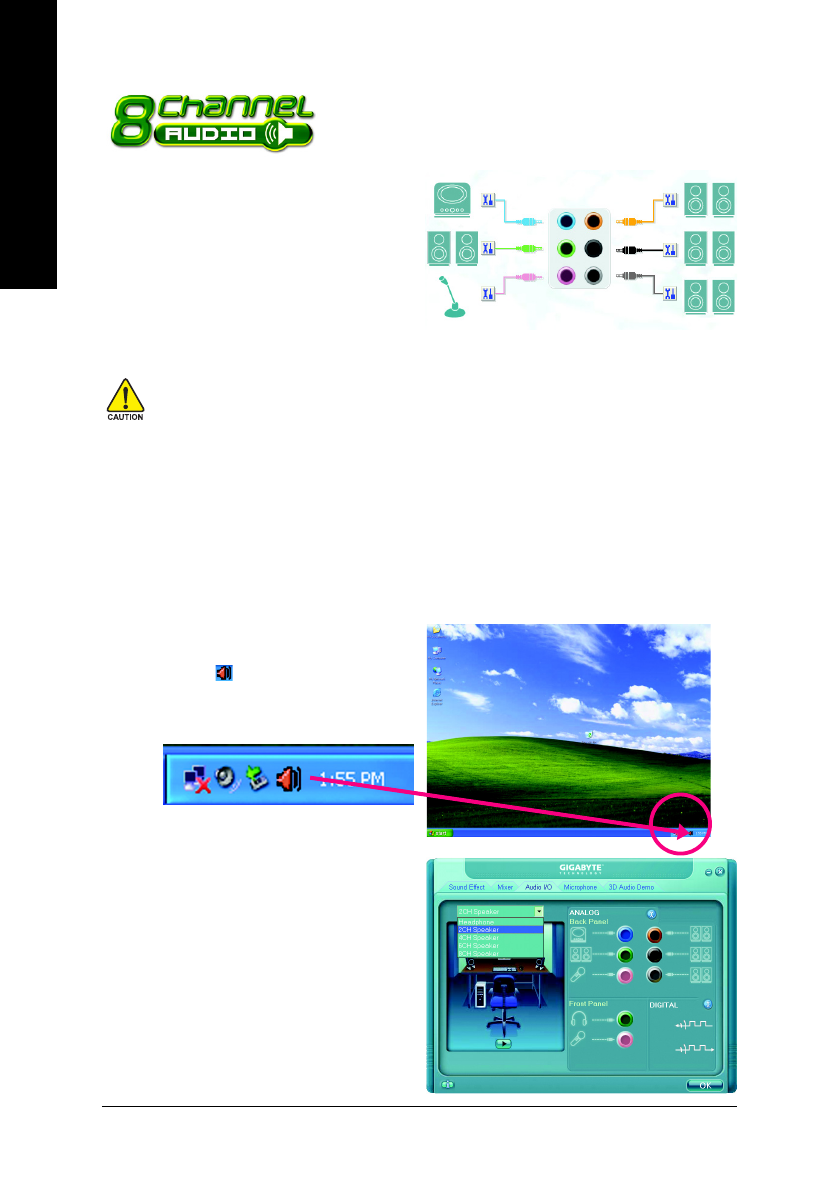

STEP 1 :
After installation of the audio driver, you should find
an Audio Manager    icon in your system tray (you
can also find the icon in Control Panel).  Double-click
the icon to open the Audio Control Panel.

STEP 2:
In the Audio Control Panel, click the

Audio I/O

 tab. In

the upper left list, click

2CH Speaker

.
