Hardware Installation

- 17 -

English

1-6

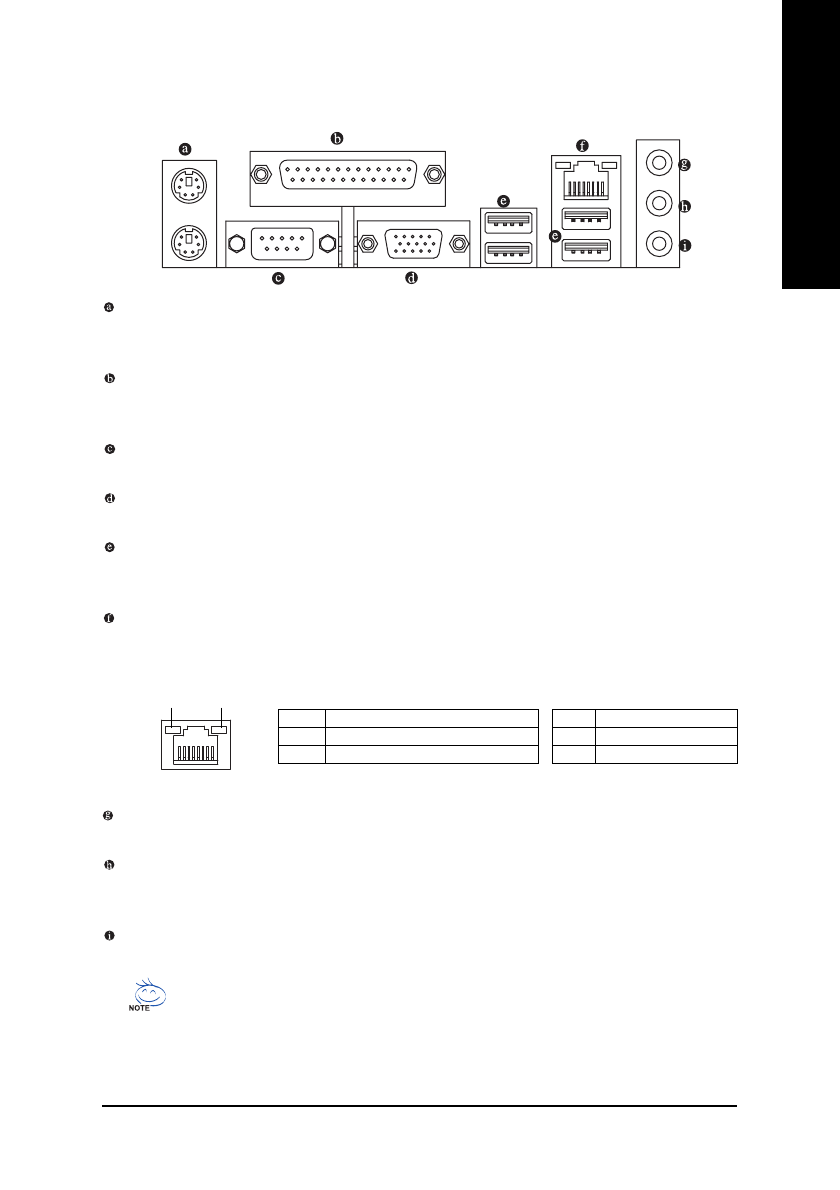

I/O Back Panel Introduction

You can use audio software to configure 2-/4-/6- channel audio functioning.

PS/2 Keyboard and PS/2 Mouse Port

Use the upper port (green) to connect a PS/2 mouse and the lower port (purple) to connect a PS/2
keyboard.

Parallel Port

Use the parallel port to connect devices such as a printer, scanner and etc. The parallel port is also
called a printer port.

Serial Port

Use the serial port to connect devices such as a mouse, modem or other peripherals.

VGA Port

The VGA port supports a 15-pin VGA connector (D-Sub). Connect the monitor's VGA cable to this port.

USB Port

The USB port supports the USB 2.0/1.1 specification. Use this port for USB devices such as an
USB keyboard/mouse, USB printer, USB flash drive and etc.

RJ-45 LAN Port

The Fast Ethernet LAN port provides Internet connection at up to 100 Mbps data rate. The following
describes the states of the LAN port LEDs.

Line In Jack (Blue)

The default line in jack. Use this audio jack for line in devices such as an optical drive, walkman, etc.

Line Out Jack (Green)

The default line out jack. Use this audio jack for a headphone or 2-channel speaker. This jack can
be used to connect front speakers in a 4/6-channel audio configuration.

Mic In Jack (Pink)

The default Mic in jack. Microphones must be connected to this jack.

Activity LED

Connection
LED

LAN Port

Connection LED:

Activity LED:

State

Description

Blinking

Data transmission or receiving is occurring

Off

No data transmission or receiving is occurring

State

Description

On

LAN link is established

Off

LAN link is not established
