Hardware Installation

- 20 -

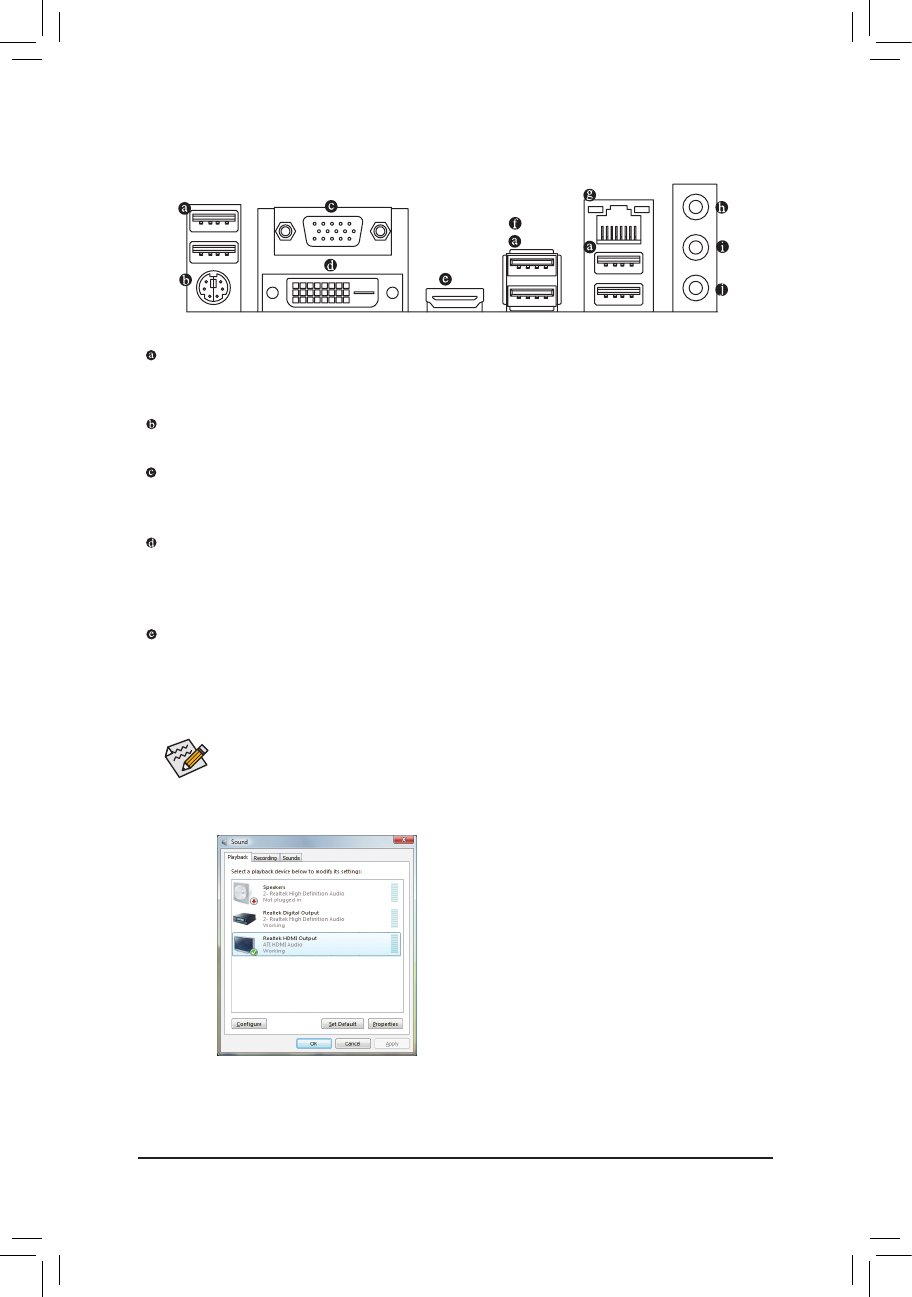

1-7  Back Panel Connectors

USB 2.0/1.1 Port

The USB port supports the USB 2.0/1.1 specification. Use this port for USB devices such as a USB key

-

board/mouse, USB printer, USB flash drive and etc.

PS/2 Keyboard/Mouse Port

Use this port to connect a PS/2 mouse or keyboard.

D-Sub Port

The D-Sub port supports a 15-pin D-Sub connector. Connect a monitor that supports D-Sub connection
to this port.

DVI-D Port

 (Note 1) (Note 2)

The DVI-D port conforms to the DVI-D specification and supports a maximum resolution of 1920x1200

(the actual resolutions supported depend on the monitor being used). Connect a monitor that supports
DVI-D connection to this port.

HDMI Port

 (Note 2)

The HDMI (High-Definition Multimedia Interface) provides an all-digital audio/video interface to transmit

the uncompressed audio/video signals and is HDCP compliant. Connect the HDMI audio/video device to
this port. The HDMI Technology can support a maximum resolution of 1920x1200 but the actual resolu-
tions supported depend on the monitor being used.

In Windows Vista, select Start>Control Panel>Sound, select

Realtek

HDMI Output

 and then click

Set Default

.

(Note 1)  The DVI-D port does not support D-Sub connection by adapter.

(Note 2)   Simultaneous output for DVI-D and HDMI is not supported.

•

After installing the HDMI device, make sure the default device for sound playback is the HDMI

device.  (The  item  name  may  differ  by  operating  system.  The  following  screen  is  from  Win-

dows Vista.)

•

  Please  note  the  HDMI  audio  output  only  supports AC3,  DTS  and  2-channel-LPCM  formats.

(AC3 and DTS require the use of an external decoder for decoding.)

j

 Only for GA-880GM-USB3L.

k

 Only for GA-880GM-D2H.

j
k
