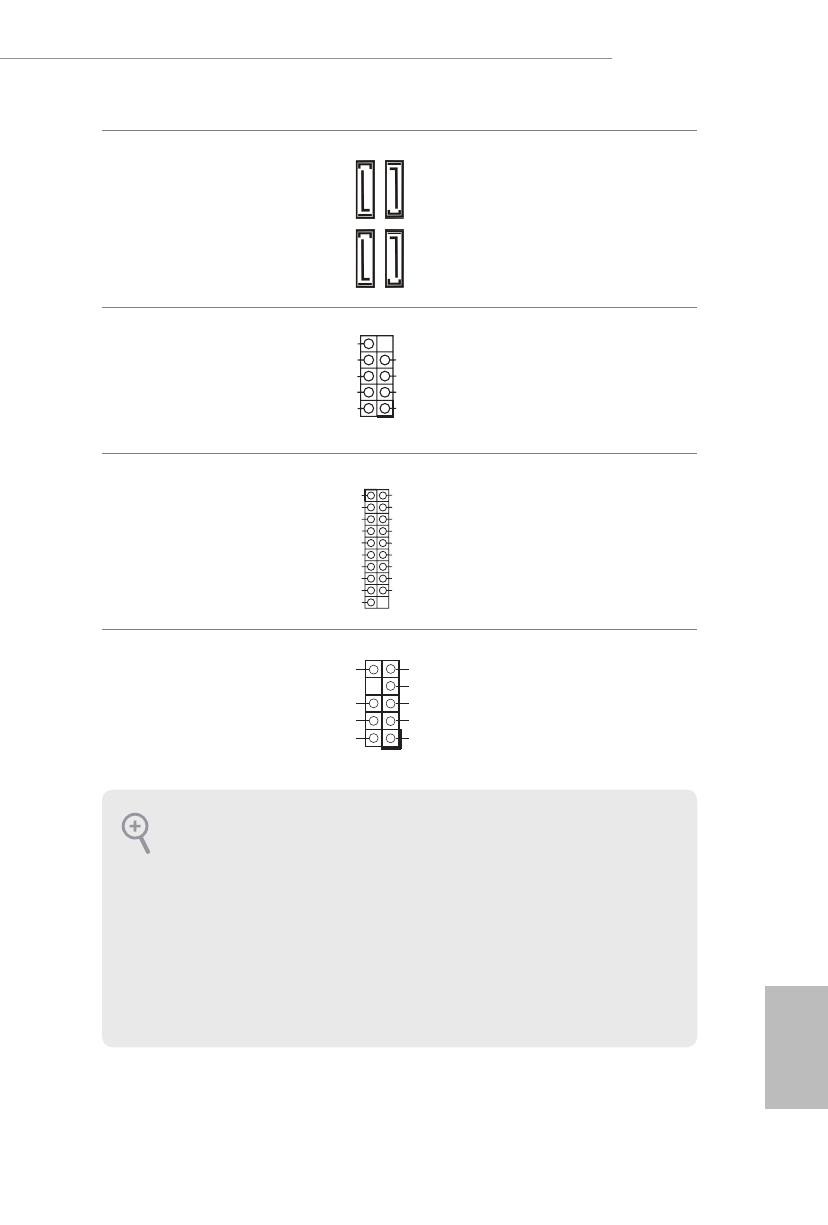

Serial ATA3 Connectors
(SATA3_1_3:
see p.1, No. 7)
(SATA3_2_4:
see p.1, No. 8)

These four SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.

USB 2.0 Headers
(9-pin USB_3_4)
(see p.1, No. 11)

There is one header on
this motherboard. This
USB 2.0 header can
support two ports.

USB 3.2 Gen1 Header
(19-pin USB3_4_5)
(see p.1, No. 9)

There is one header on
this motherboard. This
USB 3.2 Gen1 header can
support two ports.

Front Panel Audio Header
(9-pin HD_AUDIO1)
(see p.1, No. 15)

This header is for
connecting audio devices
to the front audio panel.

DUMMY

GND

GND

P+
P-

P+
P-

USB_PWR

USB_PWR

1

1

IntA_PB_D+

Dummy

IntA_PB_D-

GND

IntA_PB_SSTX+

GND

IntA_PB_SSTX-

IntA_PB_SSRX+

IntA_PB_SSRX-

Vbus

V

Vbus

V

IntA_PA_SSRX-

IntA_PA_SSRX+

GND

IntA_PA_SSTX-

IntA_PA_SSTX+

GND

IntA_PA_D-

IntA_PA_D+

1.  High Definition Audio supports Jack Sensing, but the panel wire on the chassis

must support HDA to function correctly. Please follow the instructions in our
manual and chassis manual to install your system.

2.  If you use an AC’97 audio panel, please install it to the front panel audio header by

the steps below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for the HD audio panel only. You don’t need to
connect them for the AC’97 audio panel.
E. To activate the front mic, go to the “FrontMic” Tab in the Realtek Control panel
and adjust “Recording Volume”.

AGND_A

OUT  L

1

MIC2_DETECT

OUT_DETECT

OUT  R
MIC2-R
MIC2-L

AGND_A

N/A

SA

TA3_4

SA

TA3_2

SA

TA3_3

SA

TA3_1
