19

English

A320M-ITX

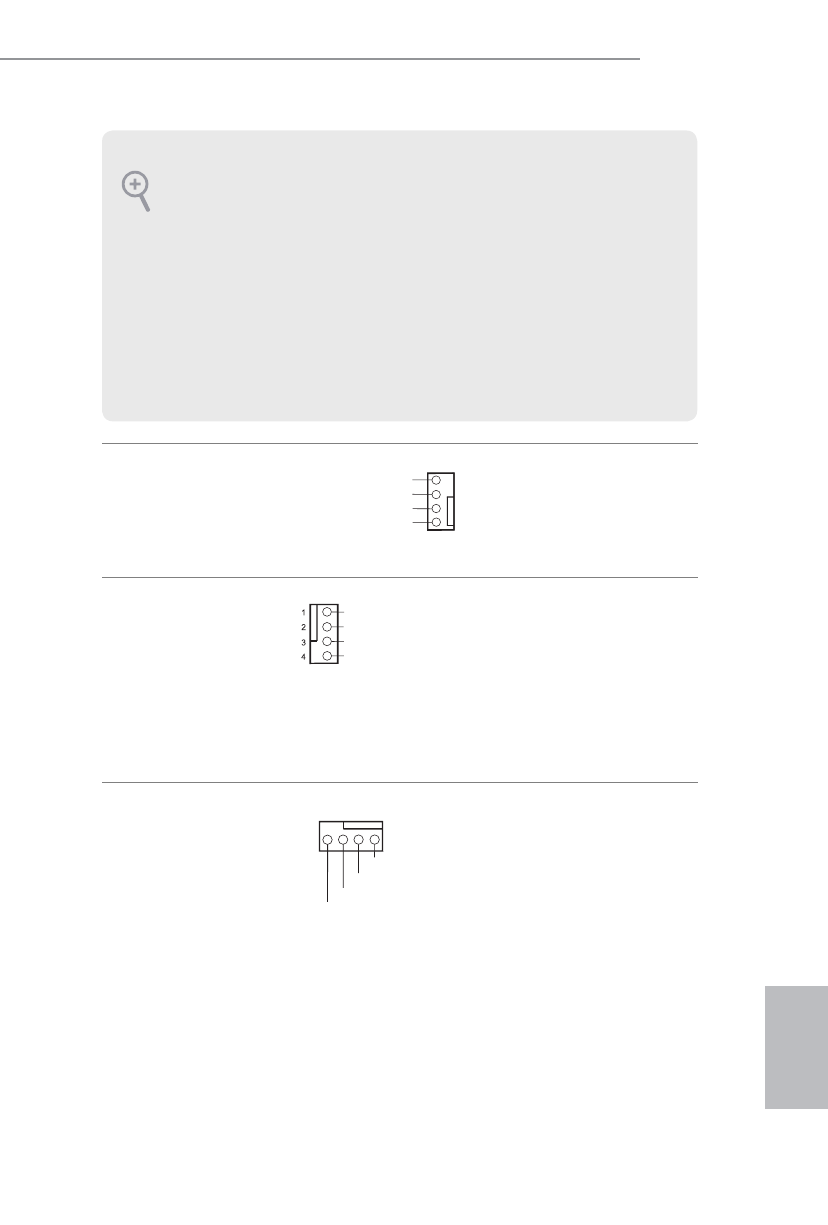

Chassis Fan Connector
(4-pin CHA_FAN2)
(see p.1, No. 6)

Please connect fan cables
to the fan connectors and
match the black wire to
the ground pin.

Chassis/Water Pump Fan
Connector
(4-pin CHA_FAN/W_
PUMP)
(see p.1, No. 17)

This motherboard
provides a 4-Pin water
cooling chassis fan
connector. If you plan to
connect a 3-Pin chassis
water cooler fan, please
connect it to Pin 1-3.

CPU Fan Connector
(4-pin CPU_FAN1)
(see p.1, No. 4)

This motherboard pro-
vides a 4-Pin CPU fan
(Quiet Fan) connector.
If you plan to connect a
3-Pin CPU fan, please
connect it to Pin 1-3.

G N D

FA N _ V O LTA G E _ C O N T R O L

FA N _ S P E E D

FA N _ S P E E D _ C O N T R O L

1.  High Definition Audio supports Jack Sensing, but the panel wire on the chassis must

support HDA to function correctly. Please follow the instructions in our manual and
chassis manual to install your system.

2.  If you use an AC’97 audio panel, please install it to the front panel audio header by

the steps below:
A. Connect Mic_ IN (MIC) to MIC2_ L.
B. Connect Audio_ R (RIN) to OUT2_ R and Audio_ L (LIN) to OUT2_ L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_ R ET and OUT_ R ET are for the HD audio panel only. You don’t need to
connect them for the AC’97 audio panel.
E. To activate the front mic, go to the “FrontMic” Tab in the Realtek Control panel
and adjust “Recording Volume”.

G N D

F A N _ V O L T A G E

C H A _ F A N _ S P E E D

F A N _ S P E E D _ C O N T R O L

C P U _ F

F A N _ V O L T A G E

G N D

A N _ S P E E D

FA N _ S P E E D _ C O N T R O L

4     3     2    1
