15

Connecting the console cable and setting terminal
parameters

Connecting the console cable

CAUTION:

The serial ports on PCs do not support hot swapping. To connect a PC to an operating router, first
connect the PC end. To disconnect a PC from an operating router, first disconnect the router end.

To connect the console cable:

1.

Select a configuration terminal, which can be an ASCII terminal with an RS232 serial port or a
PC. (A PC is more commonly used.)

2.

Connect the DB-9 connector (female) of the console cable to the RS-232 serial port on the
configuration terminal and the RJ-45 connector to the console port of the router.

NOTE:

If the configuration terminal does not have an RS-232 serial port, a serial adapter is required to
connect the console cable to a USB port on the terminal.

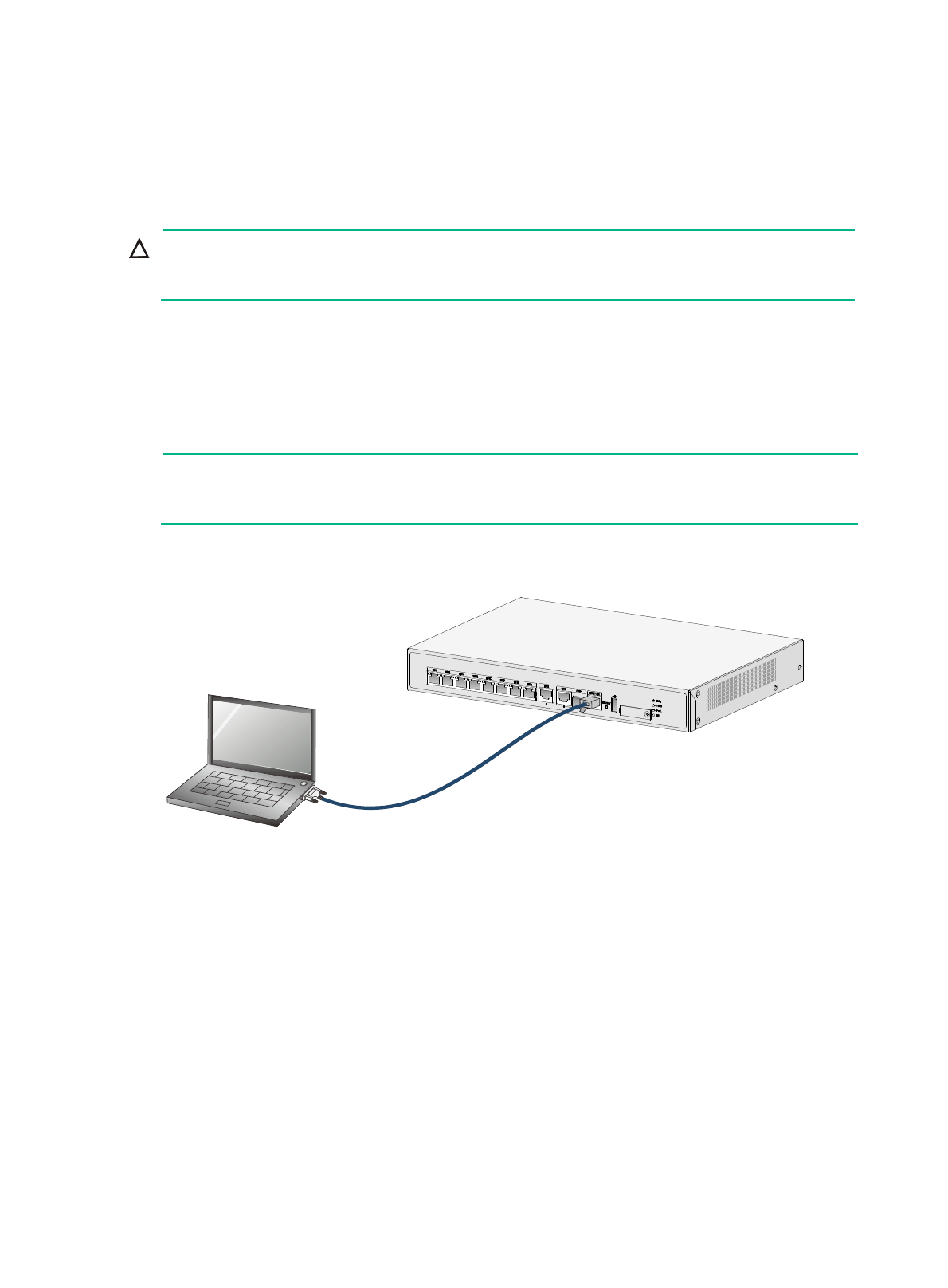

Figure 14 Connecting the console cable

Setting configuration terminal parameters

To access the device through the console port, you must run a terminal emulator program
(HyperTerminal, PuTTY, or Tera Term) on the configuration terminal. For information about using a
terminal emulator program, see the program's user guide.

The following are the required terminal settings:

•

 Baud

rate

—9600.

•

 Data

bits

—8.

•

 Stop

bits

—1.

•

 Parity

—none.

•

 Flow

control

—none.
