Trim frame installation
To install the trim frame, press it to the unit body and push it to fix it in place. This should be done before
installing the front panel; otherwise you are not able to install the trim frame. When the trim frame being
installed, the side with the groove should face down and fixed first.

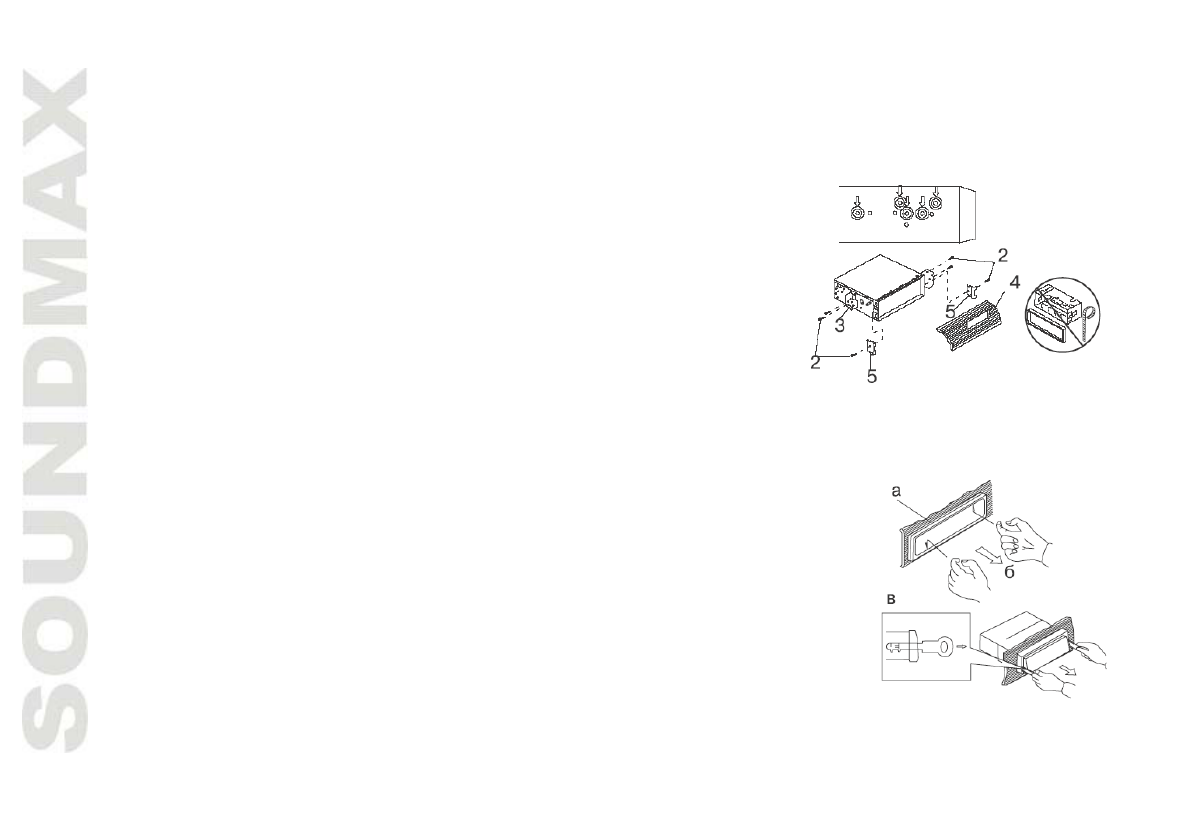

2. DIN rear-mount (Method B)
For this method, use the screw holes in the lateral sides of the unit. Fix the
unit with the help of the factory radio mounting brackets.
1. Select a position in which the screw holes of the brackets (3) are
aligned with the screw holes in the unit body, and screw in two screws (2)
in each side.
2. Screw.
3. Factory radio mounting brackets.
4. Vehicle dashboard.
5. Lock (remove this part).
Note: The outer trim frame and mounting sleeve are not used for method of installation.
Dismantling the unit
– Trim frame
– Frame uninstall direction
– Release key insertion
1. Switch off the unit and detach the front panel.
2. Insert your fingers into the groove in the front side of the trim frame (apply
some effort to detach the frame). Pull the frame to detach it.
3. Insert the supplied release keys into the both sides of the unit body to click, as
shown in the picture. To extract the unit from the dashboard, pull the release keys
or the unit body to pull it out. Before detaching the unit, ensure it is not fixed with
the metal strap.
