Kenwood KDC-W4527(G) - Инструкция по эксплуатации - Страница 28

English

— 28 —

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

TEL MUTE

P.CONT

ANT.CONT

REAR

L

R

REMO.CONT

Rear right output (Red)

4

10

Rear left output (White)

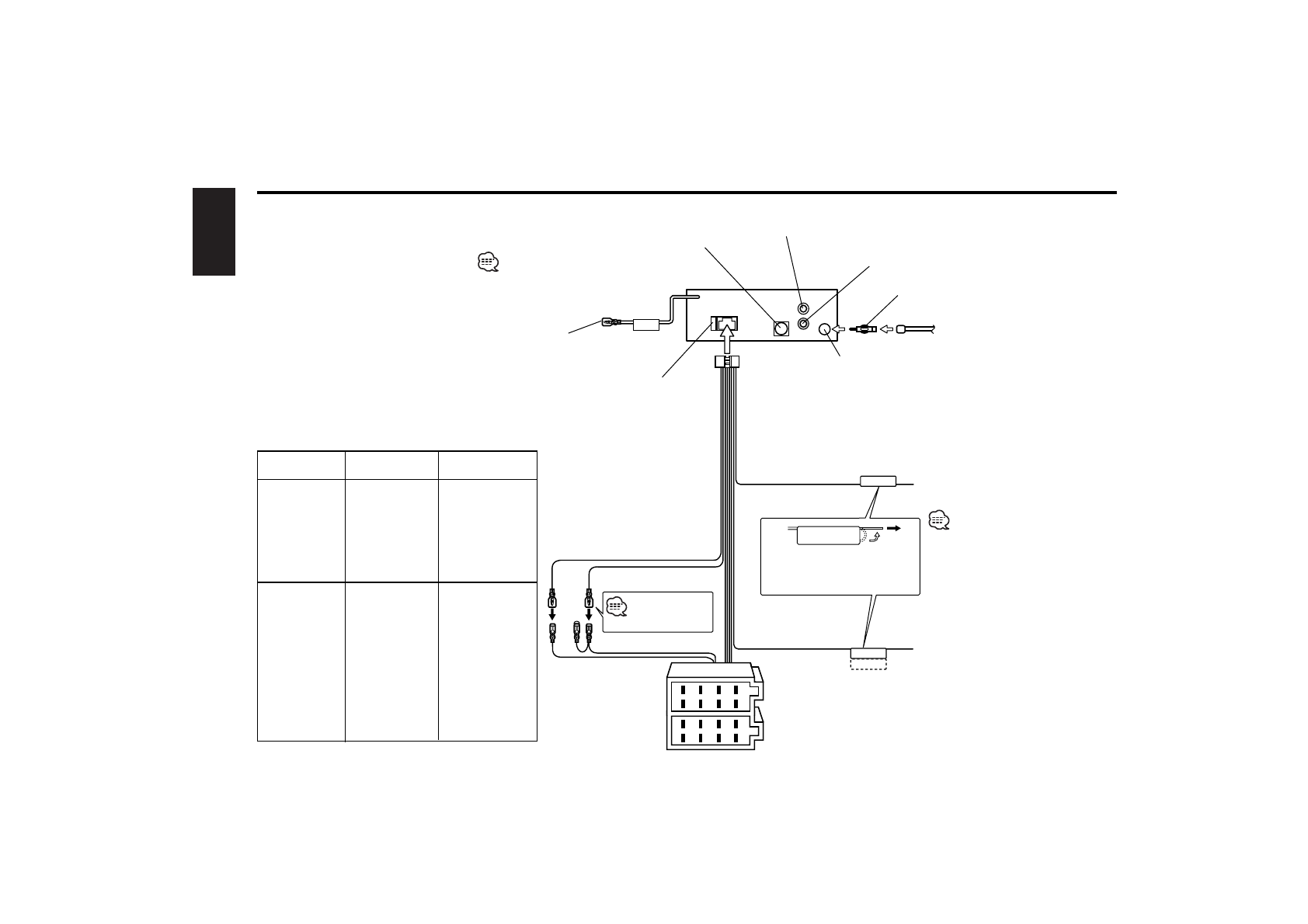

Connector Function Guide

Pin Numbers for

ISO Connectors

Cable Color

Functions

External Power
Connector

A–4
A–5
A–7
A–8

Speaker
Connector

B–1
B–2
B–3
B–4
B–5
B–6
B–7
B–8

Yellow
Blue/White
Red
Black

Purple
Purple/Black
Gray
Gray/Black
White
White/Black
Green
Green/Black

Battery
Power Control
Ignition (ACC)
Earth (Ground)
Connection

Rear Right (+)
Rear Right (–)
Front Right (+)
Front Right (–)
Front Left (+)
Front Left (–)
Rear Left (+)
Rear Left (–)

KENWOOD disc changer input

14

Battery wire (Yellow)

6A

Ignition wire (Red)

7A

FM/AM antenna
input

3

Antenna Cord (ISO)

1

Antenna Conversion Adaptor
(ISO–JASO) (Accessory

3

)

2

To connect the Disc changer, consult your
Disc changer manual.

15

To connect the
KENWOOD navigation
system, consult your
navigation manual.

22

Wiring harness
(Accessory

1

)

16

If no connections are made,
do not let the wire come
out from the tab.

18a

Power control/ Motor
antenna control wire
(Blue/White)

20

17

TEL mute wire (Brown)

Connect either to the power
control terminal when using
the optional power amplifier,
or to the antenna control
terminal in the vehicle.

23

Connect to the terminal that is
grounded when either the
telephone rings or during
conversation.

21

A–7 Pin (Red)

8

A–4 Pin (Yellow)

9

Connector A

Connector B

Fuse (10A)

13

Connecting Wires to Terminals

To Steering remote (Blue/Yellow)
(Optional Accessory)

See page 29

30
