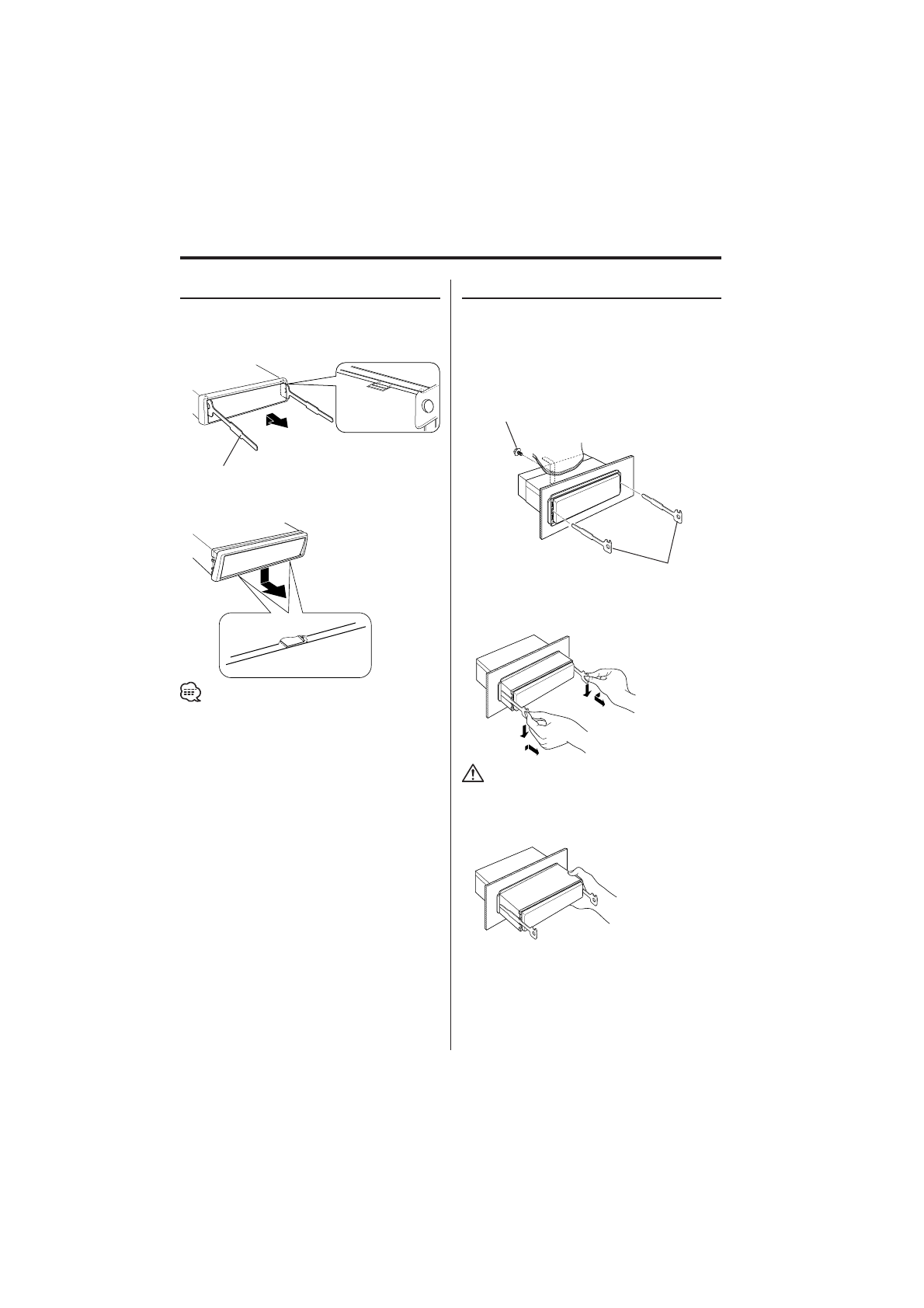

Removing the Unit

Removing the Unit

1

  Refer to the section 'Removing the hard rubber

frame' (page 25) and then remove the hard
rubber frame.

2

  Remove the screw (M4 × 8) on the back panel.

3

  Insert the two removal tools deeply into the slots

on each side, as shown.

4

  Lower the removal tool toward the bottom, and

pull out the unit halfway while pressing towards
the inside.

•  Be careful to avoid injury from the catch pins on the

removal tool.

5

  Pull the unit all the way out with your hands,

being careful not to drop it.

Removing the hard rubber frame

1

  Engage the catch pins on the removal tool and

remove the two locks on the upper level.
Upper the frame and pull it forward as shown in
the figure.

2

  When the upper level is removed, remove the

lower two locations.

•  The frame can be removed from the bottom side in the

same manner.

Accessory

2

Removal tool

Lock

Accessory

2

Removal tool

Screw (M4X8)

(commercially available)
