Installation/Connection

Operation

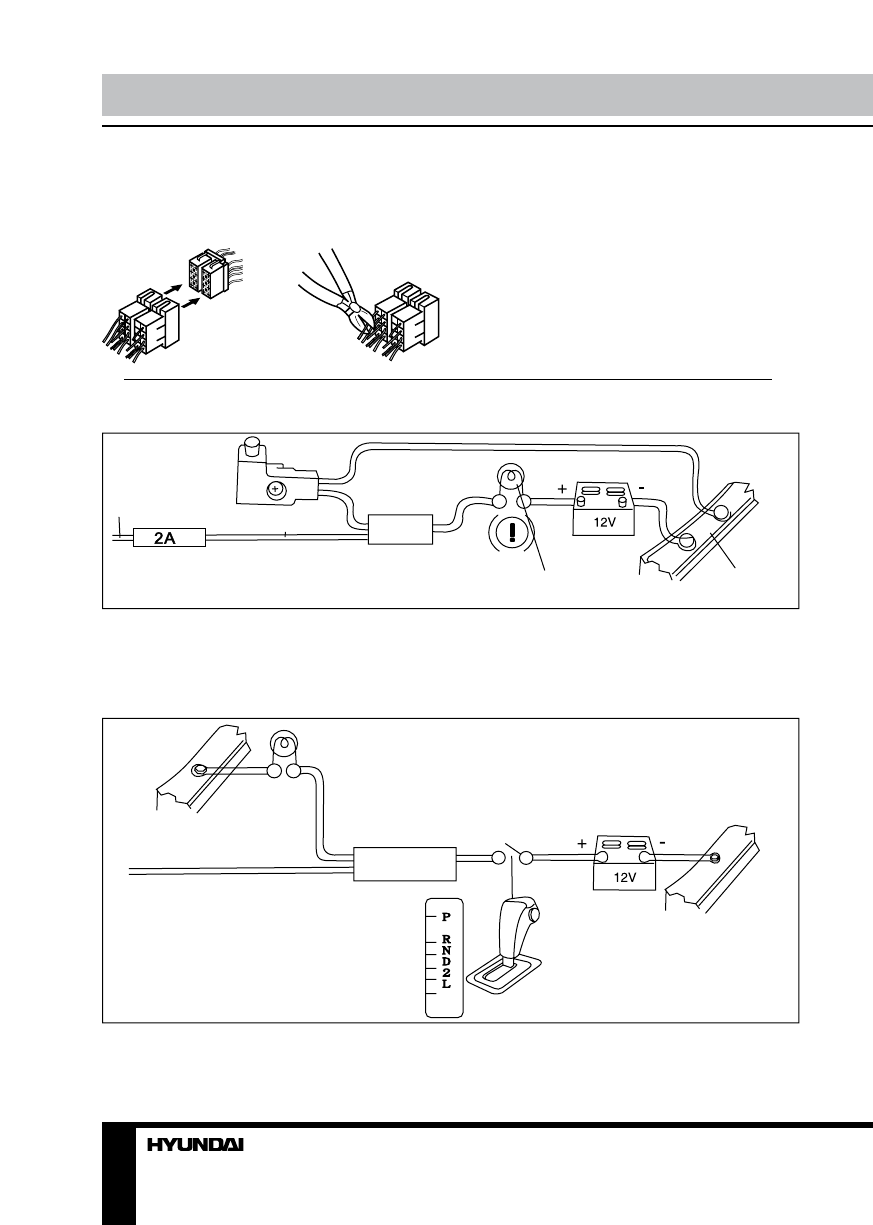

Using the ISO Connector

1.   If your car is equipped with the ISO

connector, then connect the ISO connectors as
illustrated.

1

2

2.  For connections without the ISO

connectors, check the wiring in the vehicle
carefully before connecting, incorrect connection
may cause serious damage to this unit.

Cut the connector, connect the colored leads

of the power cord to the car battery as shown
in the colour code table above for speaker and
power cable connections.

Parking wire connection

Parking brake lead

Brake light

Car frame

Battery

Purple Wire

If Parking cable is connected to hand brake switch, the video display of the TFT monitor will be

controlled by driving status. When the car is moving ahead, if the video disc is played, the screen
shows warning and blank screen. The warning screen will prevent the driver from watching images.

Reverse driving cable connection

Car frame

Car frame

Rear view video camera lead

Reverse driving light

Gearbox

Pink wire

Battery

If the rear view video camera is connected, the unit automatically switches to camera mode

during reverse driving. The unit returns to the original work mode after the reverse driving is done.
