Installation/Connection

Connection

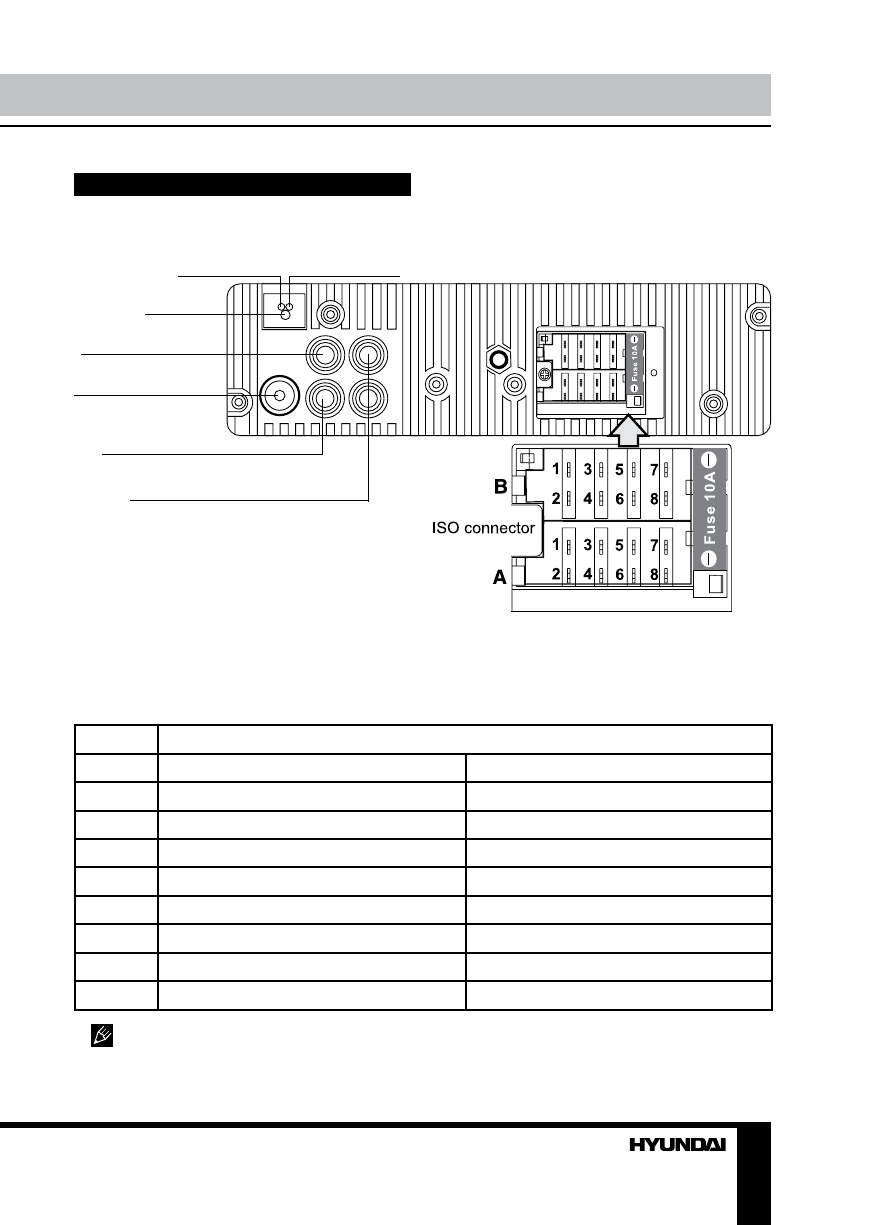

Connection diagram

Radio antenna socket

Video output (yellow)

Rear view camera input (yellow)

RCA line out (left=white; right=red)

TV antenna

Reverse (pink)

Parking (purple)

ISO connection table

Location

Function

Connector A

Connector B

1

-

Rear right (+) - Blue

2

-

Rear right (-) - Blue/White

3

-

Front right (+) - Grey

4

Battery +12V/Yellow

Front right (-) - Grey/White

5

Power antenna/Orange

Front left (+) - Green

6

Panel light/White

Front left (-) - Green/White

7

Ignition key (+12V)/Red

Rear left (+) - Brown

8

Ground/Black

Rear left (-) - Brown/White

  Power antenna wire is intended for power supply of the antenna and for remote control of

an additional amplifier.
