Installation/Connection

Connection

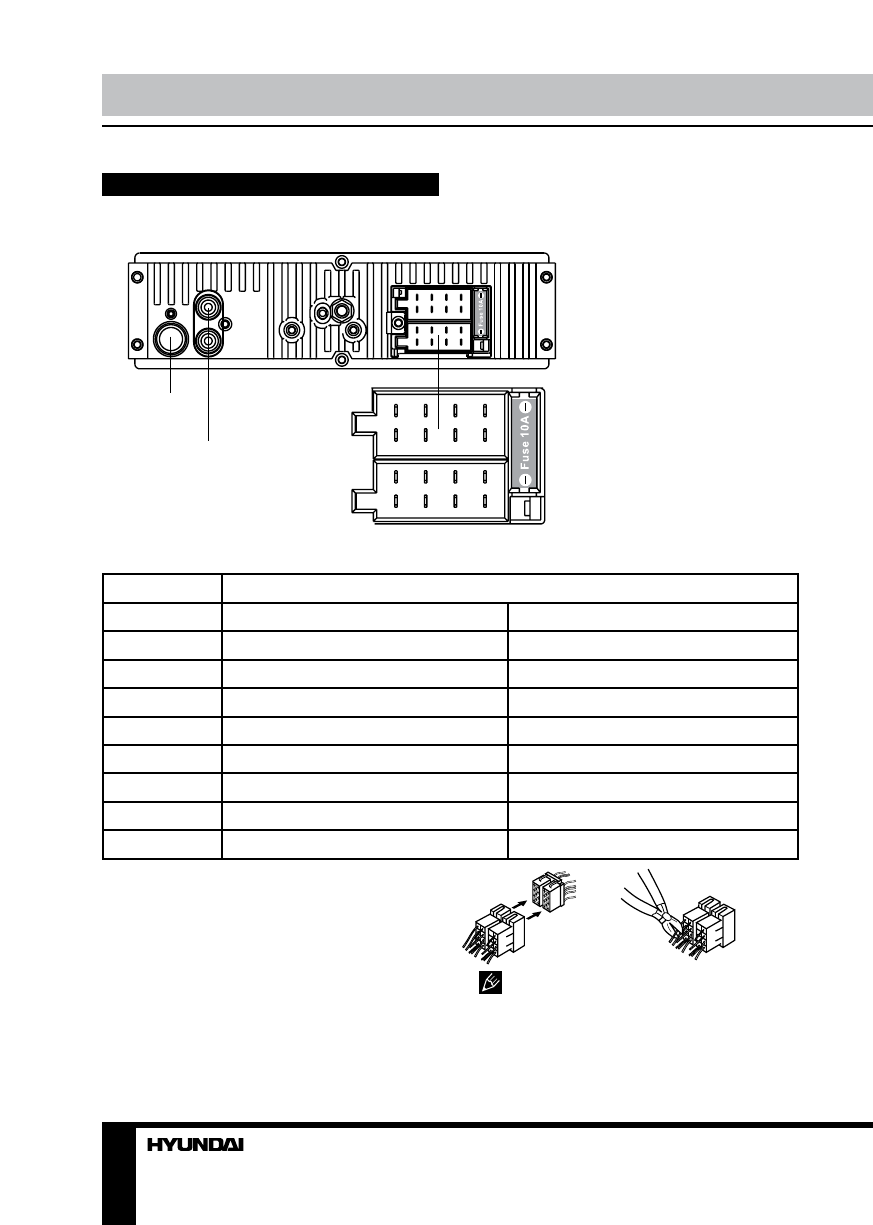

Connection diagram

RCA line out
left=white
right=red

Antenna socket

A

B

1

1

3

3

5

5

7

7

2

2

4

4

6

6

8

8

Using the ISO Connector

Location

Function

Connector A

Connector B

1

Rear Right(+)---Blue

-

2

Rear Right(-)---Blue/White Stripe

-

3

Front Right(+)---Grey

-

4

Front Right(-)---Grey/White Stripe

Battery 12V (+)/yellow

5

Front Left(+)---Green

Power Antenna/Orange

6

Front Left((-)---Green/White Stripe

Panel light/White

7

Rear Left(+)---Brown

ACC+/red

8

Rear Left(-)---Brown/White Stripe

Ground/black

1. If your car is equipped with the ISO

connector, then connect the ISO connectors as

illustrated.

2. For connections without the ISO

connectors, check the wiring in the vehicle

carefully before connecting, incorrect connection

may cause serious damage to this unit.

Cut the connector, connect the colored leads

of the power cord to the car battery as shown

in the colour code table above for speaker and

power cable connections.

  Panel light wire should be connected

to “+” of the side parking lights wire. Power
antenna wire is intended for power supply
of the antenna and for remote control of an
additional amplifier.
