6

Installation/Connection

Connection

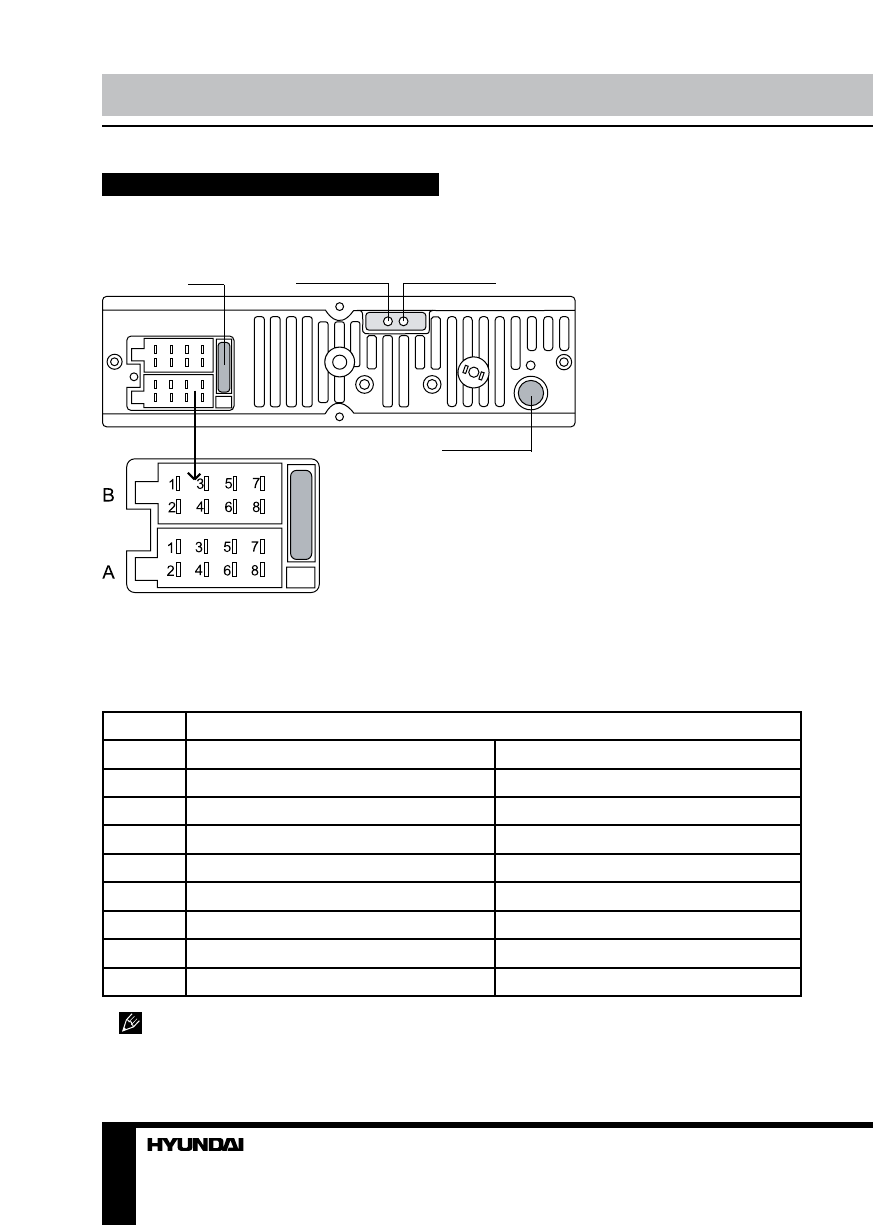

Connection diagram

Line-out left (White)

Connector A

1. -
2. -
3. -
4. Memory +12V
5. Auto antenna output
6. -
7. +12V (to ignition key)
8. Ground

Connector B

1. Rear right speaker (+)
2. Rear right speaker (-)
3. Front right speaker (+)
4. Front right speaker (-)
5. Front left speaker (+)
6. Front left speaker (-)
7. Rear left speaker (+)
8. Rear left speaker (-)

ISO connector

Fuse

Line-out right (Red)

Antenna jack

ISO Connection table

Location

Function

Connector A

Connector B

1

-

Rear right (+) - Blue

2

-

Rear right (-) - Blue/White

3

-

Front right (+) - Grey

4

Battery +12V/Yellow

Front right (-) - Grey/White

5

Power antenna/Orange

Front left (+) - Green

6

-

Front left (-) - Green/White

7

Ignition/Red

Rear left (+) - Brown

8

Ground/Black

Rear left (-) - Brown/White

  Power antenna wire is intended for power supply of the antenna and for remote control of

an additional amplifier.
