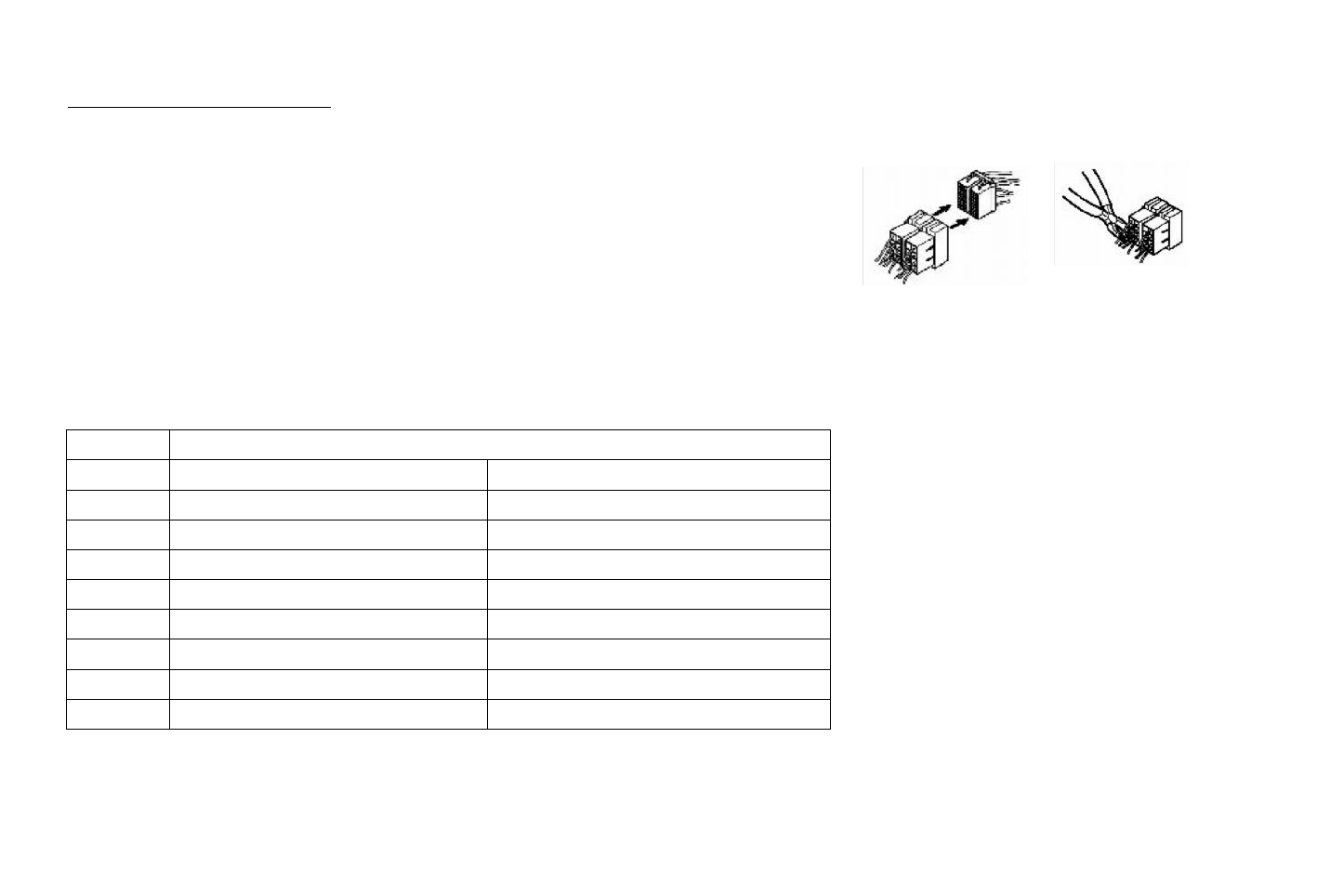

Using the ISO Connector

1.  If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated.

2.  For connections without the ISO connectors, check the wiring in the vehicle carefully before connecting, incorrect connection
may cause serious damage to this unit.
Cut the connector, connect the colored leads of the power cord to the car battery as shown in the colour code table below for speaker
and power cable connections.

Location

FUNCTION

Connector A

Connector B

1

Rear Right(+)---Blue

2

Rear Right(-)---Blue/White Stripe

3

Front Right(+)---Grey

4

Battery 12V (+)/yellow

Front Right(-)---Grey/White Stripe

5

Auto Antenna/Orange

Front Left(+)---Green

6

Panel light/White

Front Left((-)---Green/White Stripe

7

ACC+/red

Rear Left(+)---Brown

8

Ground/black

Rear Left(-)---Brown/White Stripe
