Installation/Connection

4

technician check the system.

•   Always keep the volume low

enough so that you can hear sounds
from outside the vehicle.

•   Should this product fail to

operate properly, contact your dealer
or nearest service center.

Installation

General notes

•   Choose the mounting location

where the unit will not interfere with the
normal driving function of the driver.

•   Before finally installing the unit,

connect the wiring and make sure that
the unit works properly.

•   Consult with your nearest dealer if

installation requires the drilling of holes
or other modifications of the vehicle.

•   Install the unit where it does not

get in the driver’s way and cannot
injure the passenger if there is a
sudden stop, like an emergency stop.

•   Avoid installing the unit where it

would be subject to high temperature,
such as from direct sunlight, or from
hot air, from the heater, or where
it would be subject to dust, dirt or
excessive vibration.

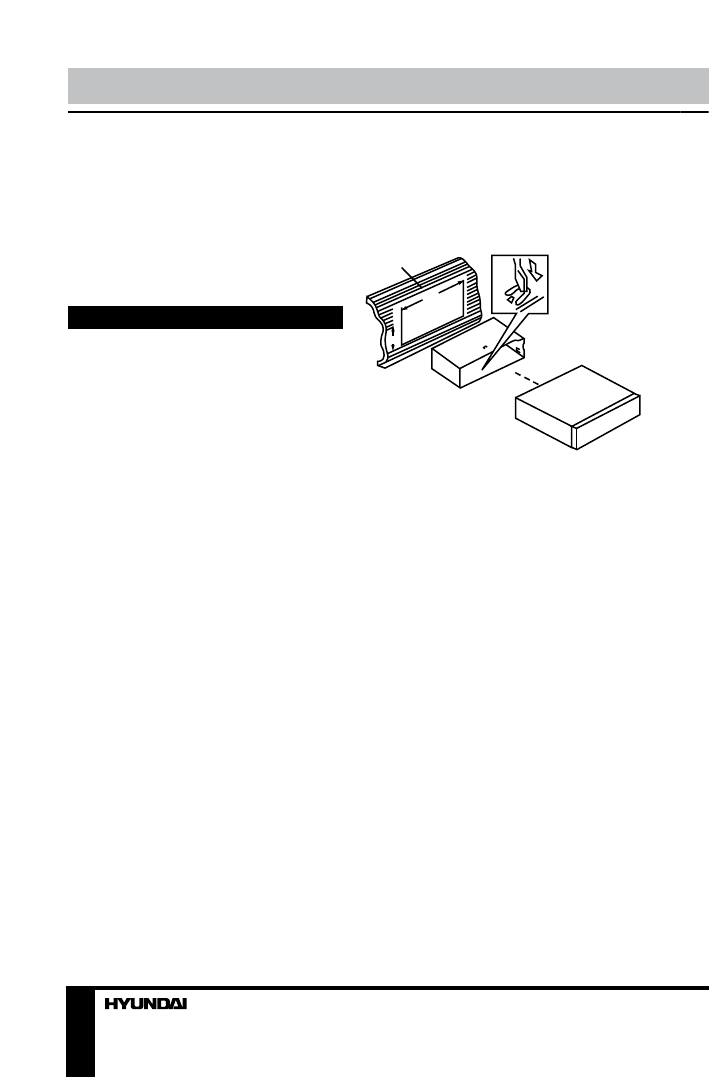

DIN front-mount (Method A)

1. Install the sleeve into the

dashboard; ensure it is installed with
the correct side and there are no
obstacles (wires, dashboard elements,
etc) for the unit installation.

2. After installing the sleeve into the

dashboard, bend tabs fitting to the
size of the dashboard to fix the sleeve
in place.

3.  Make the necessary wire

connections. Ensure the connections
are correct.

4.  Install the unit into the sleeve until

the side locks are fixed.

2

1

182

53

1. Dashboard
2. Sleeve tab to bend

Trim frame installation

To install the trim frame, press it

to the unit body and push it to fix it
in place. This should be done before
installing the front panel; otherwise you
are not able to install the trim frame.

DIN rear-mount (Method B)

For this method, use the screw

holes in the lateral sides of the unit.
Fix the unit with the help of the factory
radio mounting brackets.

1. Select a position in which the

screw holes of the brackets (3) are
aligned with the screw holes in the unit
body, and screw in two screws (2) in
each side.

2. Screw.
3. Factory radio mounting brackets.
4. Vehicle dashboard.
5. Lock (remove this part).
