www.timberk.com • Electric air conditioner

6

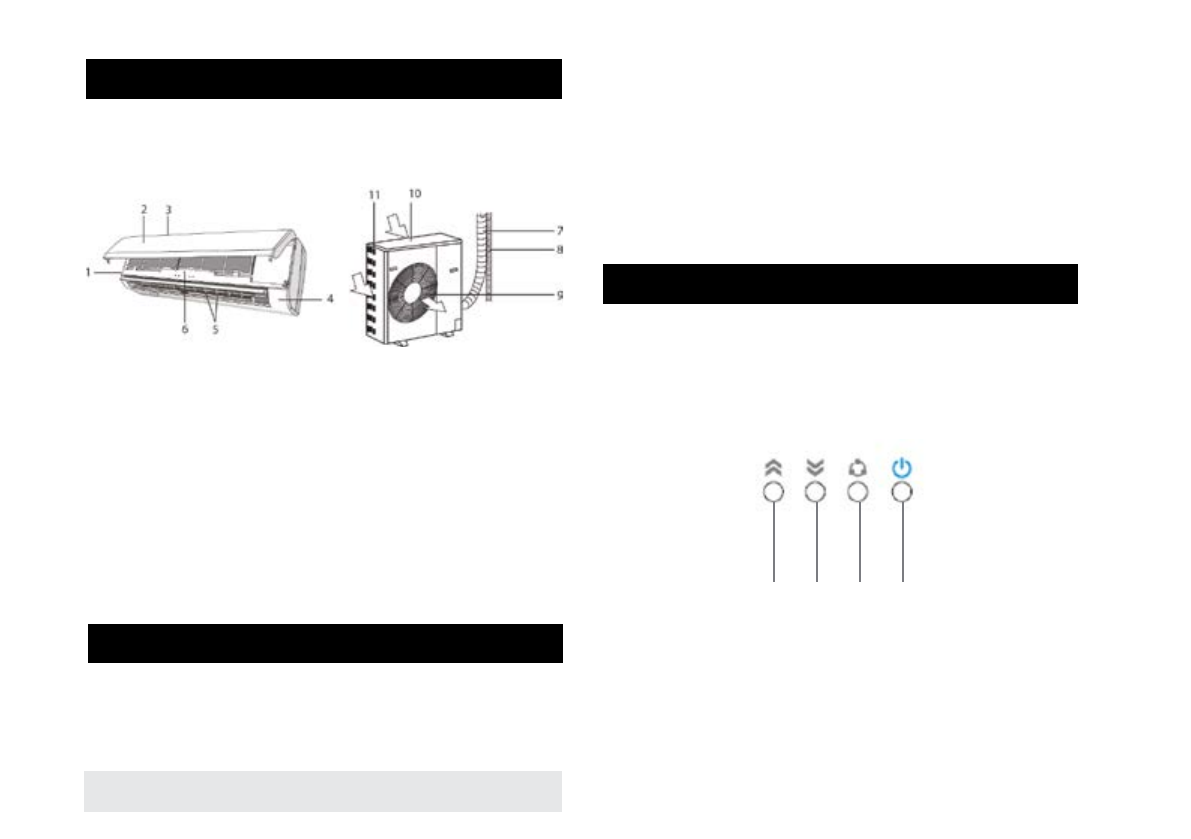

4. APPLIANCE DESCRIPTION

5. DELIVERY SET

6. APPLIANCE CONTROL

The conditioner consists of indoor and outdoor units connected by

pipelines. The conditioner may be controlled from a remote control board

or from an indoor unit control panel.

Complete set of air conditioner (split system) includes:
Conditioner unit for indoor installation -1 piece
Conditioner unit for outdoor installation -1 piece

1. Conditioner unit for indoor installation.
2. Front panel.
3. Air-intake grille of the indoor unit.
4.  Сontrol panel of the indoor unit.
5. Blinds (deflectors) for distribution of treated air.
6. Air outlet of the indoor unit.
7. Copper tube for gas (freon), connection line*.
8. Tube for condensate removal*.
9. Air-outlet grille of the outdoor unit.
10. Conditioner unit for outdoor installation.
11. Air-intake grilles of the outdoor unit.

Remote control board -1 piece
Batteries for remote control board - 2 pcs.
User manual -1 piece
Guarantee slip -1 piece
Packing of indoor-installation unit -1 piece
Packing of outdoor-installation unit -1 piece

* not supplied

1,2. Buttons «TEMP» (increase/decrease). Using this button, you may set

needed air temperature indoors.
3. SET button. Press this button to select ventilation, drying heating or

cooling mode.
4. Button «ON/OFF» (Power). Using this button, you may turn the

conditioner on or off.

The conditioner may be controlled from a remote control board or from an

indoor unit control panel.

Description of indoor unit control panel

Fig. 2

Fig. 1

1         2         3         4
