En-3

● OPERATING INSTRUCTIONS ●

•  Press CLOCK gently using a thin instrument.

•

Make sure the polarity of the batteries is correct.

•   Do not use manganese batteries and leaking batteries. The remote controller could

malfunction.

•   Do not use rechargeable batteries.

•   The  battery  replacement  indicator  lights  up  when  the  battery  is  running  low.  In

about 7 days after the indicator starts lights up, the remote controller stops working.

•   Replace all batteries with new ones of the same type.

•  Batteries can be used for approximately 1 year. However, batteries with expired

shelf lives last shorter.

•  Press RESET gently using a thin instrument.

  If the RESET button is not pressed, the remote controller may not operate correctly.

Before operation:

 Insert the power supply plug into the power outlet and/or turn the breaker on.

Operation indicator lamp

Remote control receiving

section

Emergency

operation

switch

 Page 6

Horizontal

vane

Air inlet

Air fi lter

Air cleaning fi lter

(Silver-ionized air

purifi er fi lter)

Front panel

Installing the remote controller batteries

Setting current time

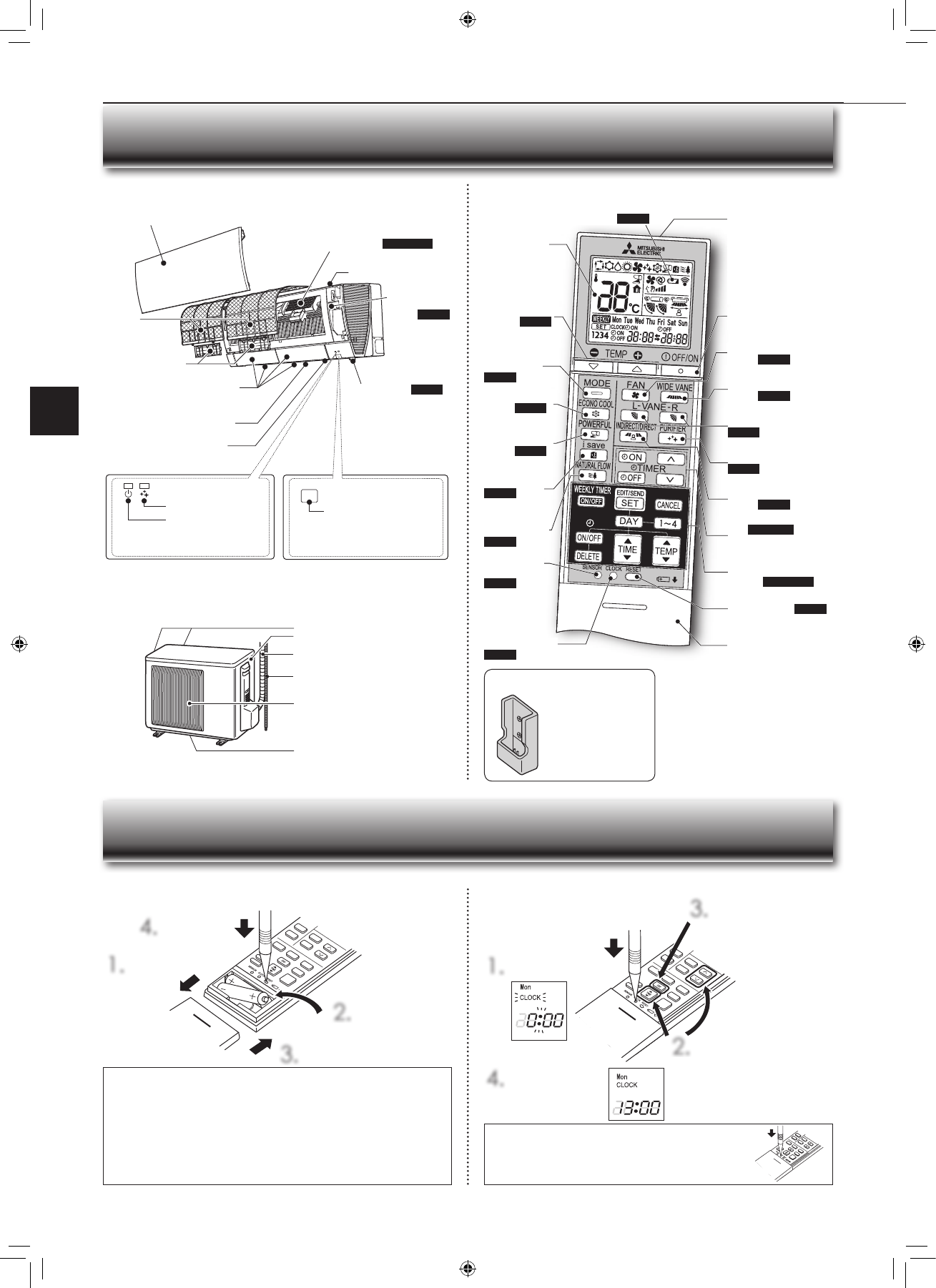

N

AME OF EACH PART

P

REPARATION BEFORE OPERATION

Indoor unit

Remote controller

1.

 Remove the front lid.

2.

 Insert the negative

pole of AAA alkaline

batteries fi rst.

3.

 Install the front lid.

4.

 Press RESET.

1.

 Press CLOCK.

4.

 Press CLOCK again.

2.

 Press either the TIME button

or the TIMER buttons to set

the time.

Each press increases/decreas-

es the time by 1 minute (10

minutes when pressed longer).

3.

 Press the DAY button

to set the day.

Remote controller holder

Signal transmitting

section

Distance of signal :

About 6 m

Beep(s) is (are) heard from
the indoor unit when the
signal is received.

Operation dis-

play section

OFF/ON (stop/operate)

button

Temperature

buttons

 Page 6

Operation

select button

 Page 6

ECONO COOL

button

 Page 8

FAN speed control

button

 Page 7

VANE control button

 Page 7

TIME, TIMER set but-

tons

 Pages 3, 9

  Increase time

  Decrease time

CLOCK button

 Page 3

RESET button

 Page 3

Lid

Slide the lid down

to open the remote

controller. Slide it down

further to get to the

weekly timer buttons.

•  Install  the  remote  con-

troller  holder  in  a  place

where the signal can be

received  by  the  indoor

unit.

•  When  the  remote  con-

troller is not used, place

it in this holder.

Only  use  the  remote  controller  provid-

ed with the unit.

Do not use other remote controllers.

If two or more indoor units are installed

in  proximity  to  one  another,  an  indoor

unit that is not intended to be operated

may respond to the remote controller.

i-save button

 Page 8

WEEKLY TIMER set

buttons

 Pages 3, 10

Air outlet

Outdoor unit

Outdoor units may be different in appearance.

Air purifying device

 Pages 9, 11

Air inlet (back and side)

Refrigerant piping

Drainage hose

Air outlet

Drain outlet

WIDE VANE

button

 Page 7

PURIFIER button

 Page 9

INDIRECT/DIRECT

button

 Page 5

POWERFUL

button

 Page 9

NATURAL

FLOW button

 Page 9

SENSOR (i-

see) button

 Page 5

i-see sensor

 Page 5

(Air purifying)
(Power)

Spec name plate *1

Spec name plate *1

*1 The manufacturing year and month is indicated on the spec name plate.

Battery replacement indicator

 Page 3
