6.

Electric  air conditioner (split system)

7.

Electric  air conditioner (split system)

EN

EN

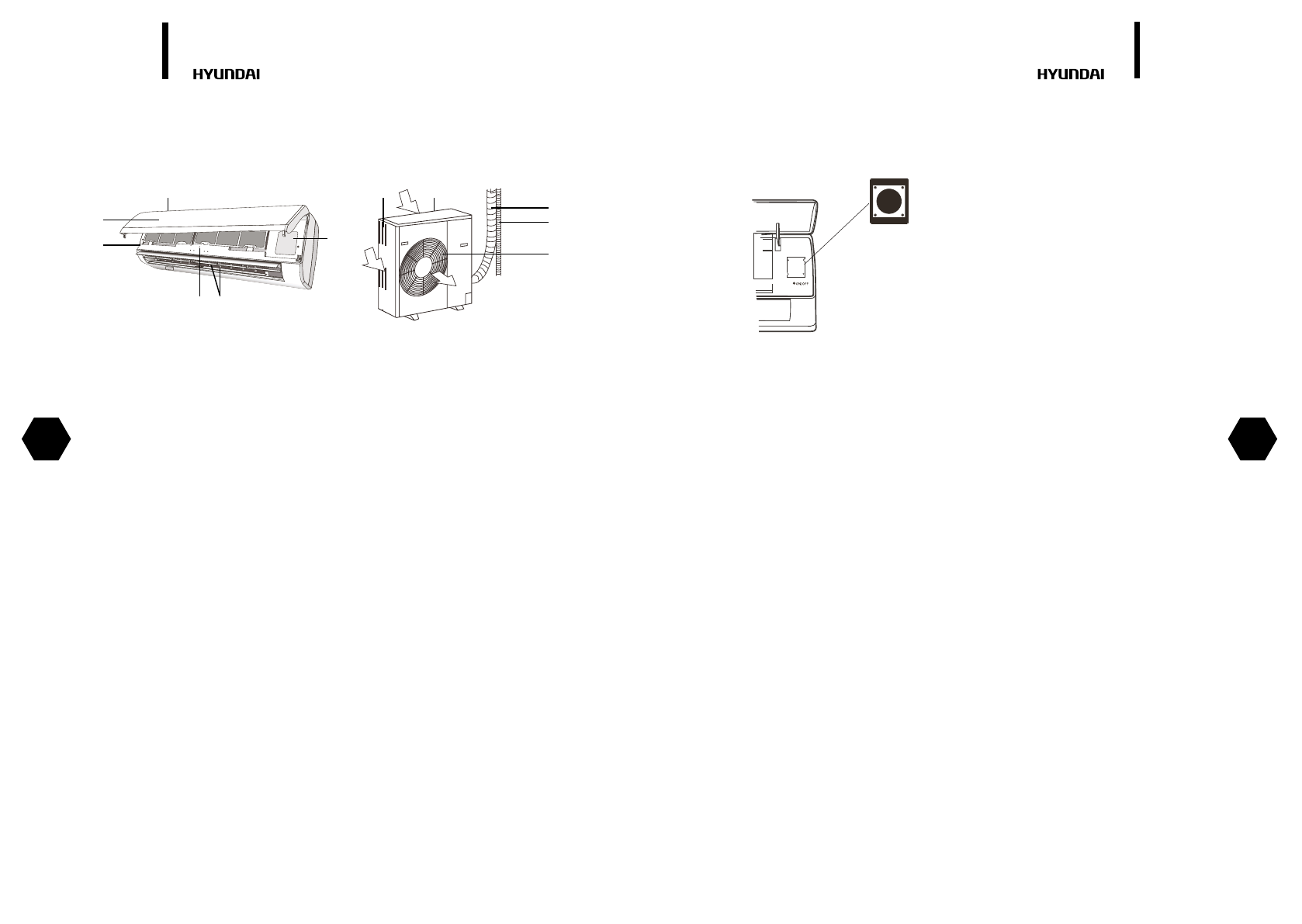

4. APPLIANCE DESCRIPTION

The conditioner consists of indoor and outdoor units connected by pipelines. The conditioner may
be controlled from a remote control board or from an indoor unit control panel.

1.  Conditioner unit for indoor installation.
2.  Front panel.
3.  Air-intake grille of the indoor unit.
4.  Control panel (start/stop button, mode selection button) if there is no remote control board.
5.

Blinds (delectors) for distribution of treated air.

6.  Air outlet of the indoor unit.
7.  Copper tube for gas (freon), connection line*.
8.  Tube for condensate removal*.
9.  Air-outlet grille of the outdoor unit.
10. Conditioner unit for outdoor installation.
11. Air-intake grilles of the outdoor unit.

5. DELIVERY SET

Complete set of air conditioner (split system) includes:
Conditioner unit for indoor installation -1 piece
Conditioner unit for outdoor installation -1 piece
Remote control board -1 piece
Batteries for remote control board - 2 pcs.
User manual -1 piece
Guarantee slip -1 piece
Packing of indoor-installation unit -1 piece
Packing of outdoor-installation unit -1 piece

* not supplied

6. APPLIANCE CONTROL

The conditioner may be controlled from a remote control board or from an indoor unit control
panel.

If the remote control board is lost or cannot be used at the moment, you may use a control

button «on/of» located behind the front panel.

For that, open the front panel carefully by pulling it from the let and right.

1.  Press once to activate the automatic mode.
2.

Press again within ive seconds to activate the forced cooling mode.

The front panel of air conditioner there is a display that shows the current temperature and

deined, and indicators* display modes and settings: power, night mode, temperature, timer,

compressor operation (see Fig. 3**).

The front panel of the conditioner comprises a display showing speciied and current tempera

-

ture, as well as indicators* relecting modes and parameters of work: power supply, sleep mode,

temperature, timer, compressor operation (see Fig. 3**).

* Presence of this function depends on the delivery lot.

Fig. 1

Fig. 2. Description of indoor unit control panel

3

10

11

9

7

8

4

5

6

1

2
