6.

Electric air conditioner

portable type

EN

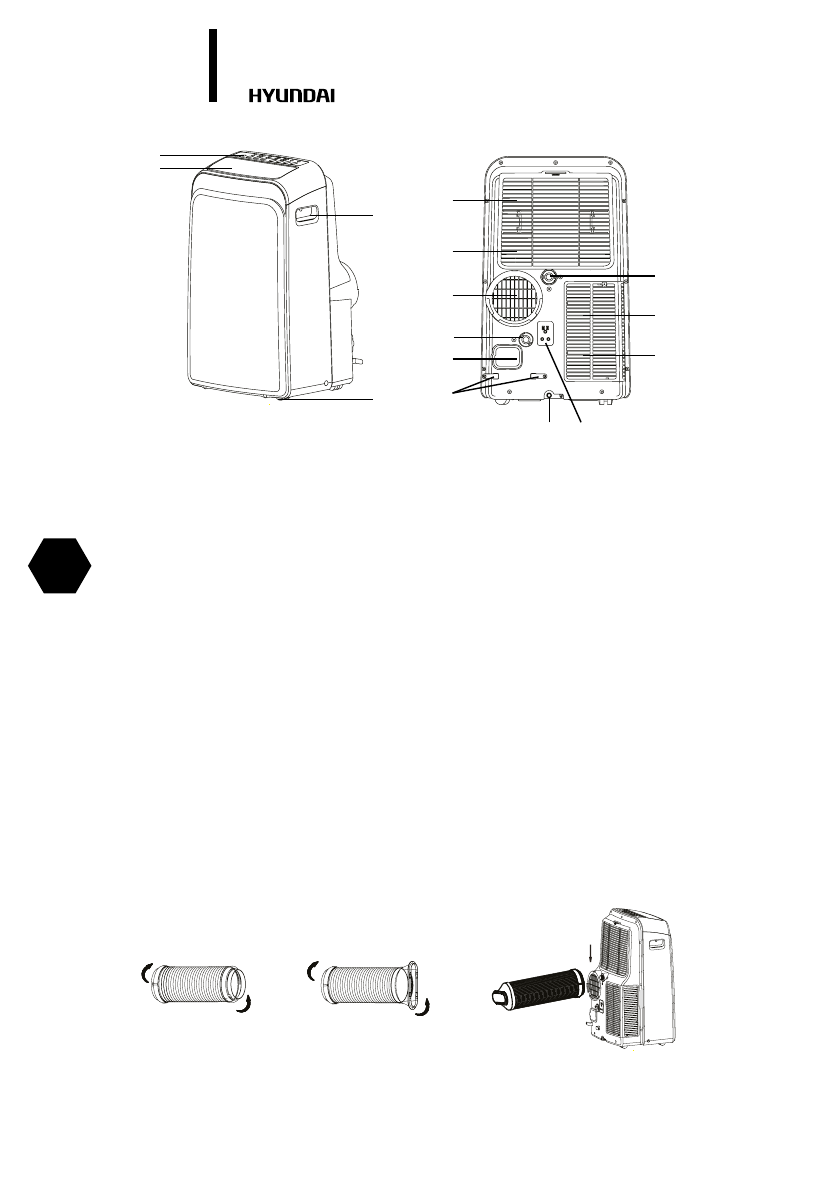

4. DEVICE DESCRIPTION (Fig. 2 and 3)

1.  Control panel

2.  Horizontal louver

3.  Rollers

4.  Handle for transportation

5.

Air filter

6.  Air Inlet grille

7.  Air outlet grille

8.   Condensation drain hole

9.  Power cord

10. Power cord  buckle

11. Condensation drain hole

12. Power plug socket

13.

Air filter

14. Air intake grill

15. Condensation drain hole

Installation of air outlet hose (Fig. 4)

1. Before using  install the adapter on hose for air outlet (Fig. 4-2)

2. Install hose for air outlet  into the hole ( Fig. 4-3).

Fig. 2

Fig. 4-2

Fig. 4-1

Fig. 4-3

Fig. 3

3

13

14

15

4

1

2

5

6

7

9

10

11 12

8
