6.

EN

Electric air conditioner

portable type

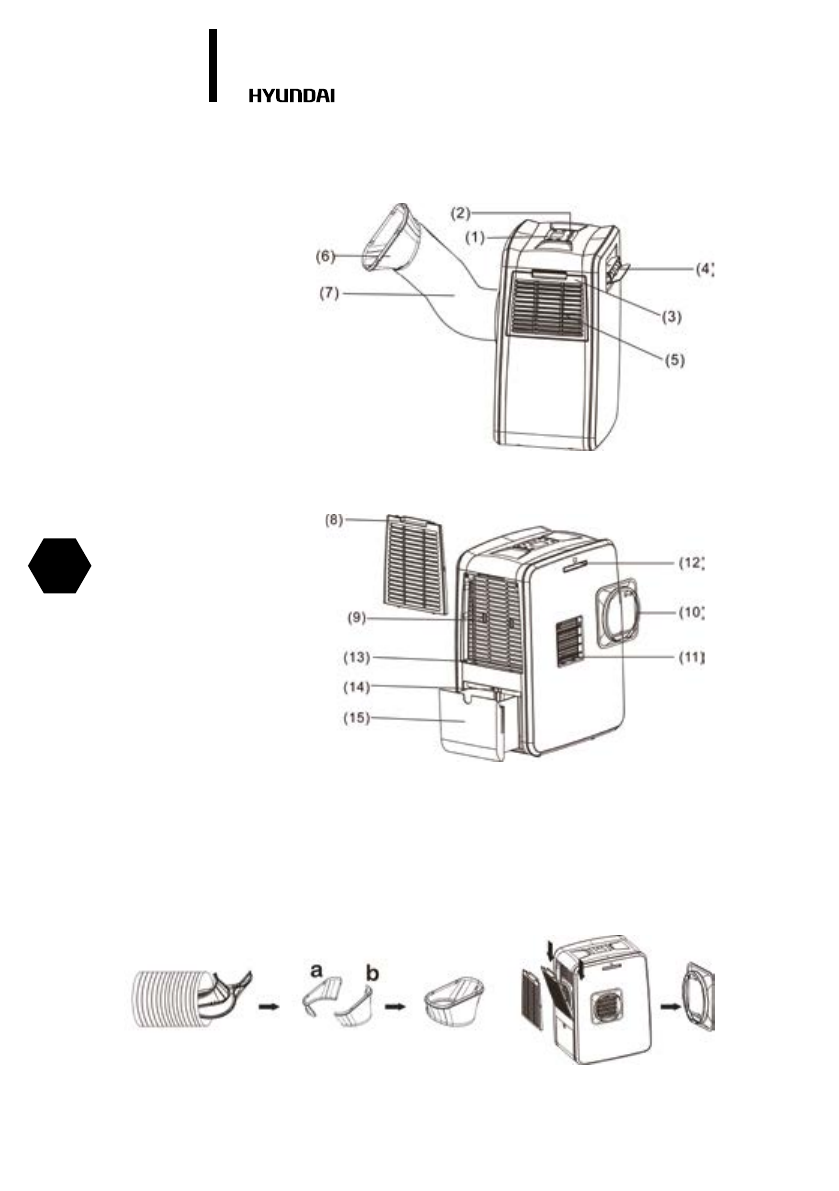

4. NAME OF THE PARTS (Fig. 2 and 3)

1. Control panel

2. Remote control receiver

3. Filter of EVA

4. Cool air outlet

5. Cool air inlet

6. Joint tube

7. Exhaust hose

8. Filter of COND

9. Hot air inlet

10. Hot air outlet  joint

11. Hot air outlet

12. Remote control location

13. Filler*

14. Drain hole

15. Water tank

*Not used

Installation of air outlet hose (Fig. 4)

1. Take out the joint tube from the exhaust pipe(see picture 4-1) and fix a part and b part together.

2. Press the right side filter downwards as showing in fig. 4-2 and take off the hot air outlet joint.

Fig. 4-1

Fig. 4-2

Fig. 2

Fig. 3
