8.

Electric  air conditioner (split system)

EN

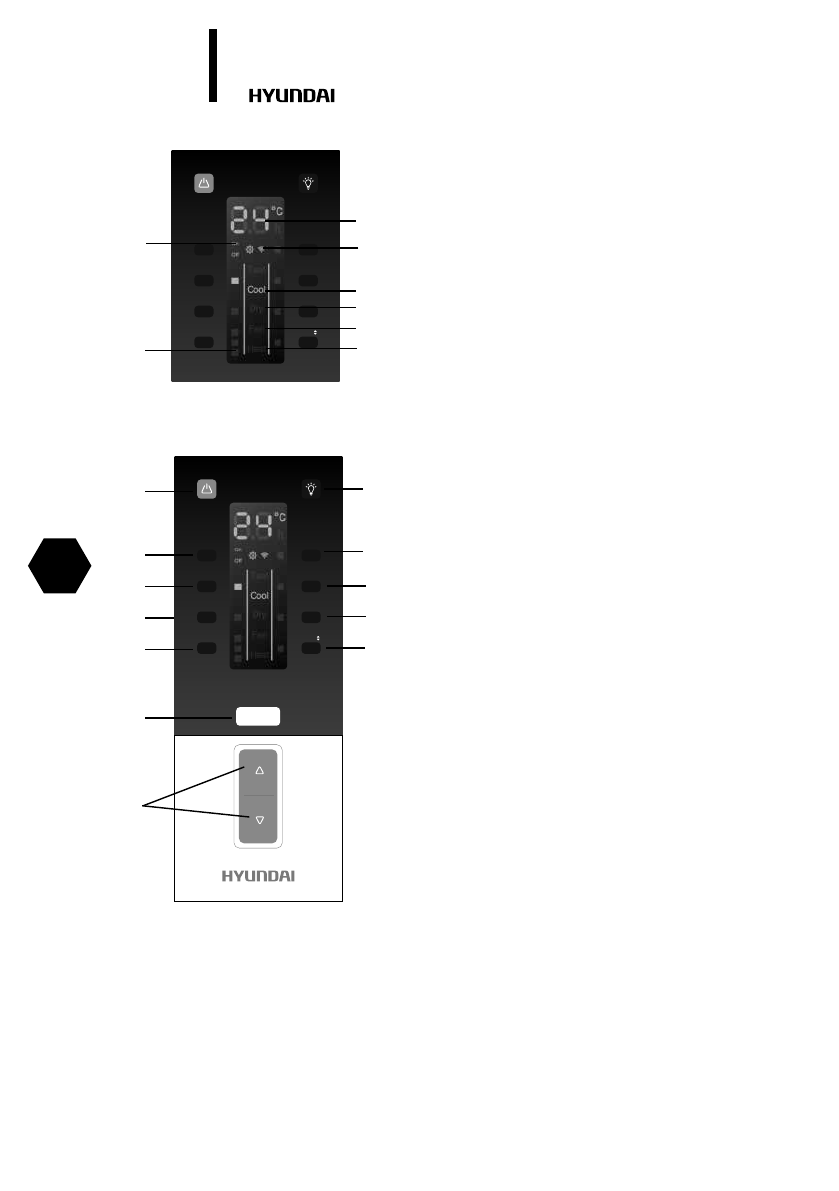

REMOTE CONTROL

Fig. 3

Fig. 4

Indication of the control board display shall

correspond to selected modes.

1.  Button “ON/OFF” (Power). Using this but-

ton, you may turn the conditioner on or off.

2.  Button for selection of operating mode -

“MODE”. Using this button, you may select

a needed operating mode: AUTO, COOL,

DRY, HEAT, FAN.

3.  Button “SLEEP”. Using this button, you

may turn the sleep mode on and off. In this

mode the fan speed will be low.

4.  Button “SWING”.Using this button, you

may regulate position of air-outlet blinds

and forward treated air up and down, left

and right.

5.  Button “Health. Using this button, you may

turn on or off the ion funtion. (In this model

the function is not available).

6.  Button “SUPER”. With this button you can

enable or disable the intensive mode. When

swithing modes, or when you increase /

decrease the fan speed, the function is

automatically disabled.

7.   Button “TIMER”. This button sets the

automatic swich-on (set the desired time by

pressing button “SET”, “MODE”, “SPEED” or

button “TIMER”). The device automatically

turns on after a selected period of time.

8.   Button “INDICATORS LIGHT”. Using this

button you may disable the backlight of the

display of the indoor unit. By re-pressing

the button, you can turn on the display

backlight.

9.  Кнопка «INCREASE THE TEMPERATURE».

With this button, you can control the

temperature.

10.  Button «ECO».
11.  Button «OPTION». This option is not

available for conditioner H-AR10-H.

Work with remote control
board

Mounting and replacement of batteries:
mount two LR03 alkaline batteries, ac-
cording to polarity indicated on the remote

а) Temperature indicator

b) Indicators timer

с) Indicator operation indicator functions

d) Indicators Cooling

e) Indicators dry

f)  Indicators fan

j) Indicators  heat

h) Indicators speed

* use of particular indicators depends on

model and series.

** design of indicator symbols may differ

depending on model and series.
