 Power

The Switch can be used with AC power sources 100 - 240 VAC, 50 - 60 Hz. The Switch’s

power supply will adjust to the local power source automatically and may be turned on

without having any or all LAN segment cables connected.

B.

 Ethernet Ports

These ports support network speeds of 10Mbps, 100Mbps or 1000Mbps, and can operate

in half- and full- duplex transfer modes. These ports also support automatic MDI/MDIX

crossover detection, which gives the Switch true, “plug and play” capabilities. Just connect

any network cable between the Switch and the device, and The Switch will automatically

detect the settings of the device and adjust itself accordingly.

The LED Indicators will allow you to monitor, diagnose and troubleshoot any potential problem

with the switch, connection or attached devices.

A.

 Power

This lights green while the Switch is receiving power.

B.

 Link/Act/Speed

When connected to a 1000Mbps device, this LED indicator light is green when the port is

connected to a device and will blink as data is transmitted or received.

When connected to a 10/100Mbps device, this LED indicator light is amber when the port

is connected to a device and will blink as data is transmitted or received.

C.

 Cable Diagnostics (during boot up only)

Open or short circuit  Link/Act/Speed LED light amber.

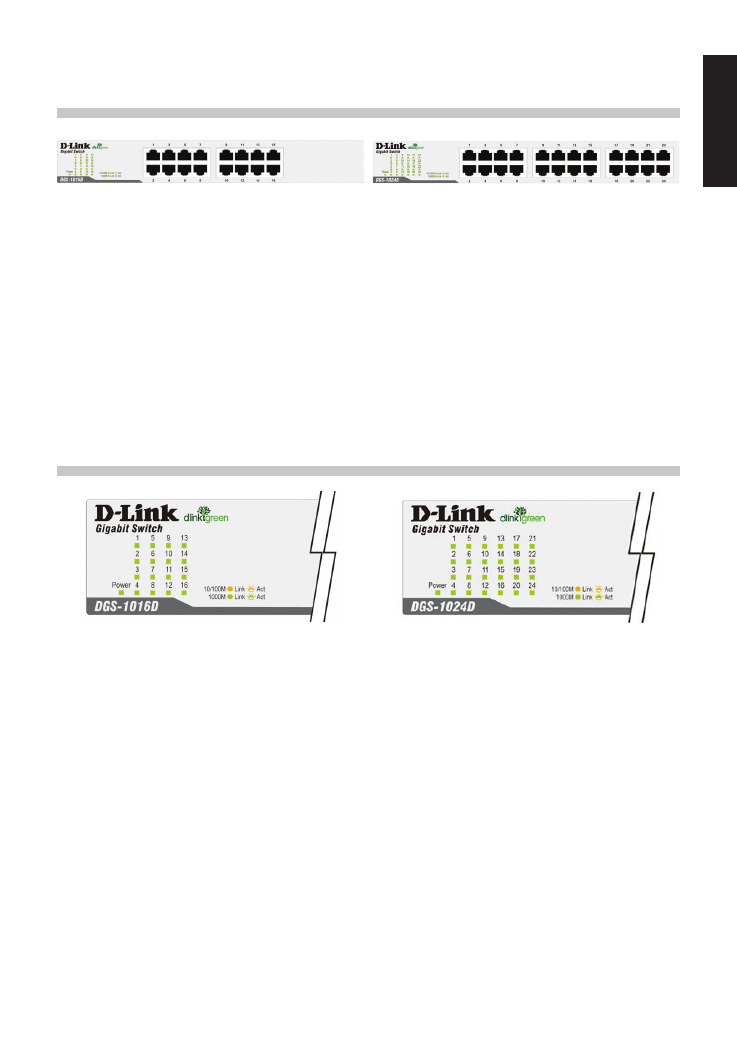

Connecting the DGS-1016D / DGS-1024D Gigabit

Ethernet Switch to Your Network

LED Indicators

DGS-1016D

DGS-1024D

DGS-1016D

DGS-1024D
