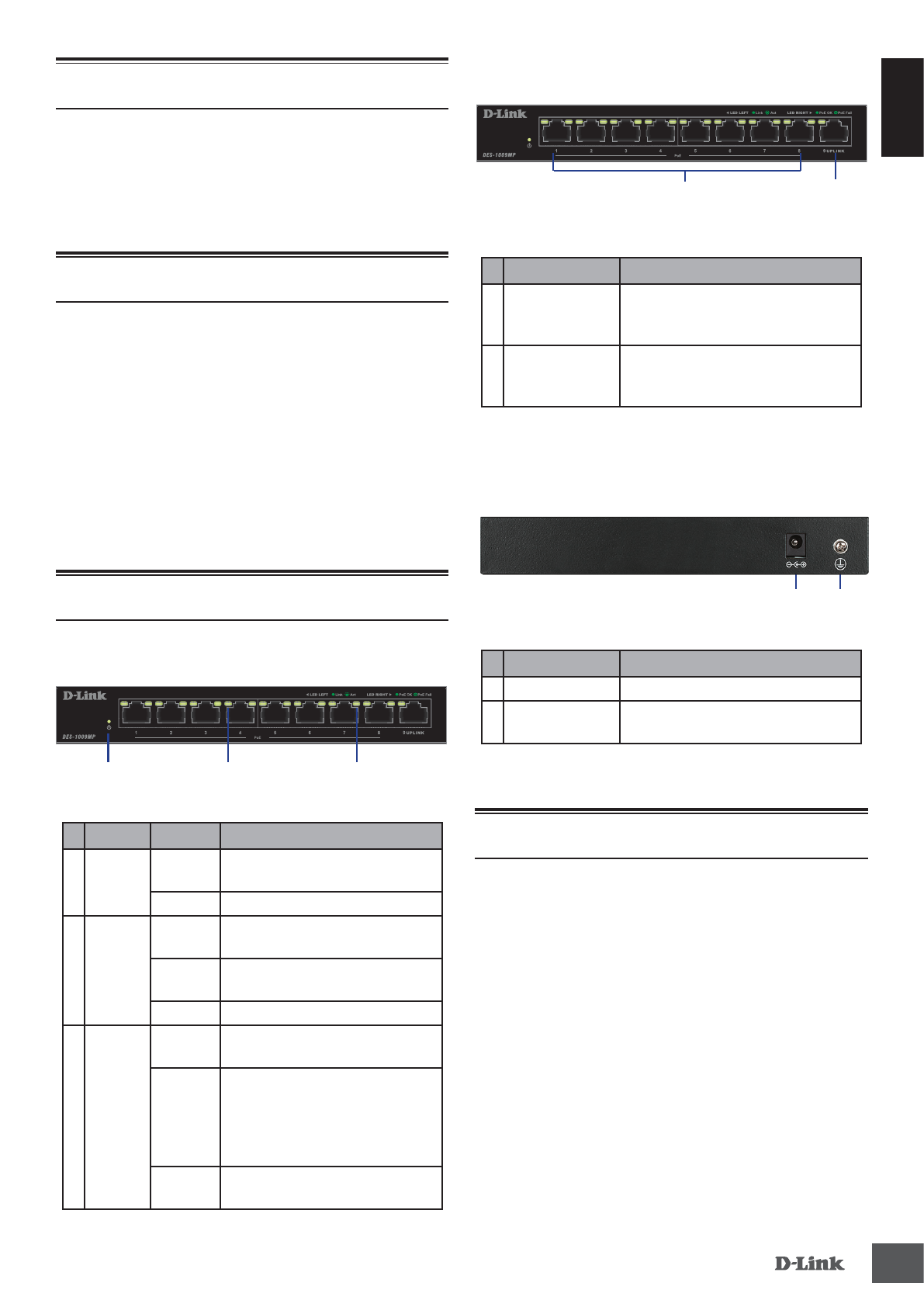

DES -1009MP
2
E
N
G
LIS
H
Front Panel Connectors
Figure 2: Front panel connectors
#
Interface
Description
1
Ports 1 - 8
10/100 Mbps PoE-capable ports,
used for connecting Ethernet
devices and PoE-powered devices.
2
Ports 9
10/100/1000 Mbps Ethernet
port for uplink connections to
NVR, storage or core switch.
Table 2: Front connector description
Rear Panel Connectors
Figure 3: Rear panel connectors
#
Connector
Description
1
DC Power Input
Input jack for the power adapter.
2
SWITCH GND
Screw used to secure a grounding
wire to connect the switch to ground.
Table 3: Rear connector description
Hardware Installation
Installation Precautions
For safe switch installation and operation, it is
recommended to:
• Visually inspect the DC power jack and make sure
that it is fully secured to the power adapter.
• Make sure that there is proper heat dissipation
and adequate ventilation around the switch.
• Install the switch in a site free from strong
electromagnetic sources, vibration, dust, and
direct sunlight.
• Not place heavy objects on the switch.
Before You Begin
This Quick Installation Guide gives you step-by-step
instructions for setting up your DES-1009MP 9-port
10/100 PoE Switch. The model you have purchased
may appear slightly different from the one shown
in the illustrations.
Package Contents
This DES-1009MP package should include the
following items:
• 1 x DES-1009MP
•
1 x Power adaptor
•
1 x Quick Installation Guide
If any of the above items are damaged or missing,
please contact your local D-Link reseller.
Hardware Overview
LED Indicators
Figure 1: Front panel LEDs
#
LED
Status
Description
1
Power
Solid
green
The switch is powered on.
Off
The switch is turned off.
2
Link/
ACT/
Speed
(Left
Led)
Solid
green
There is an active link negotiated
on this port.
Blinking
green
There is traffic on the port.
Off
There is no active link on this port.
3
PoE
(Right
Led)
Solid
green
The port is providing power to the
connected PoE-powered device.
Blinking
green
Indicates a PoE-powered device
is connected to this PoE port,
but the switch has insufficient
re m a i n i n g p owe r b u d g e t to
power the device.
Off
There is no PoE-powered device
connected to this port.
Table 1: LED overview
1
2
1
2
3
1
2
