Positioning and installing the appliance

2b

2a

2e

2

P

D

2c

2d

2f

H

C

2i

2h

P D

2g

2m

C

L

2l

S

EN

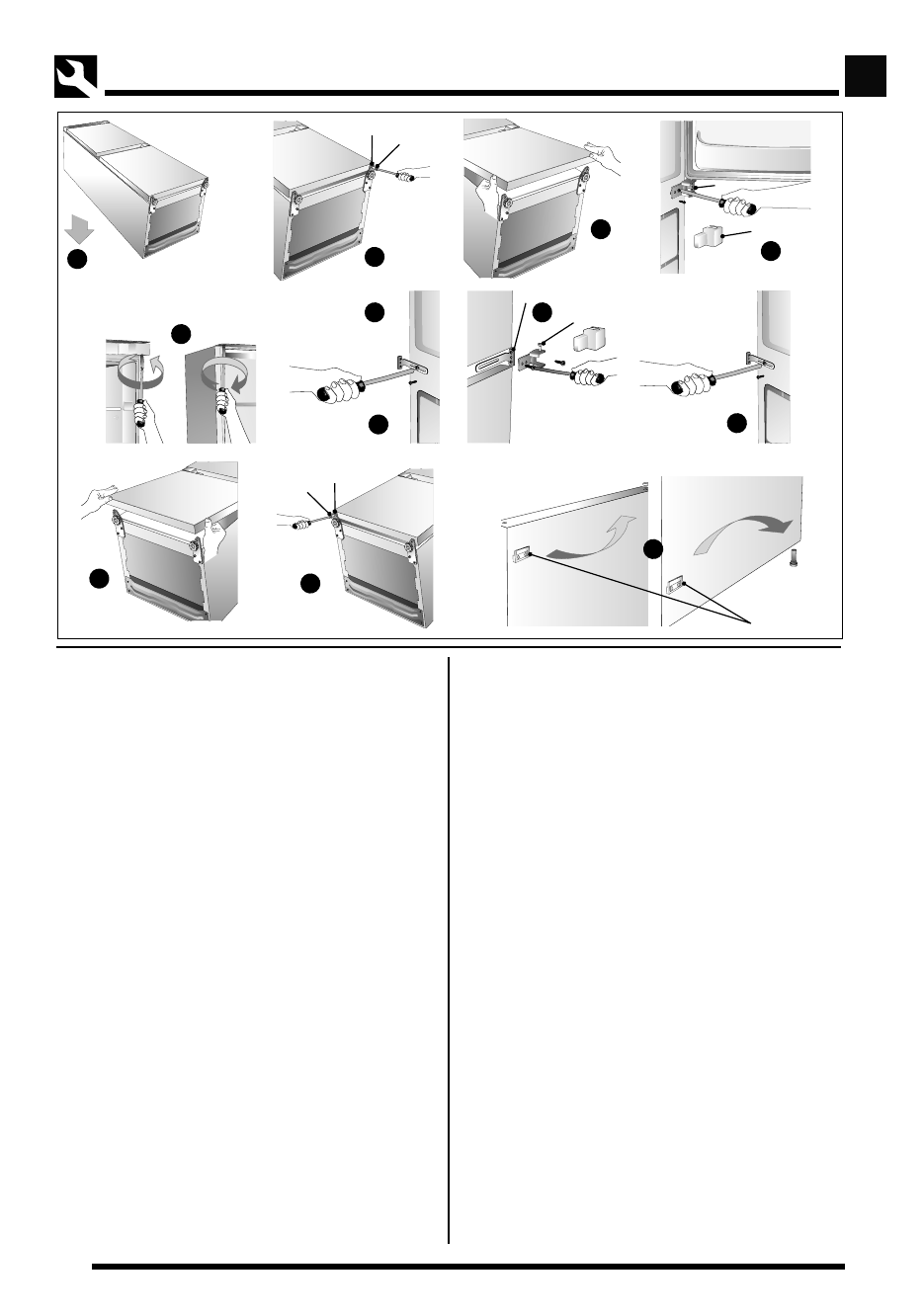

REVERSING THE DOOR OPENING

1  Once the appliance has been unpacked, check that

the mains voltage is the same as that indicated on

the rating plate.

2   If the door opening direction is as required, go to

Point 3.

Otherwise, reverse the position of the hinges.

To do this, carefully place the appliance on its back.

Use spacers to prevent crushing the condenser

pipes and damaging the compressor unit.

2a  Remove the lower hinge pin P and the distance

spacer D.

2b   Remove the lower door.
2c   Slide off hinge cover H; remove the middle hinge

C, then free the upper door.

2d   Remove the upper hinge pin K and fit it to the op-

posite side.

2e   Remove the central support L.
2f   Refit the upper door.
2g   Fit hinge C and support L on the left side. (The hinge

cover H, must be refitted at the end of installation).

2h   Refit the middle support L on the right side.

2i   Refit the lower door.
2l   Insert pin P and spacer D.
2m  Remove the door opening/closing elements S and

reassemble them on the opposite side.
