WARNING

Risk of injury due to the door dropping out!

If  the  bearing  parts  are  not  screwed  into  place  firmly  enough,

the  door  may  drop  out.  This  may  lead  to  severe  injuries.  What

is  more,  the  door  may  not  close  and  therefore  the  appliance

may fail to cool properly.

u

Screw the turn hinges firmly into place with 4 Nm.

u

Check all of the screws and retighten if necessary.

4.4 Insertion into a row of kitchen units

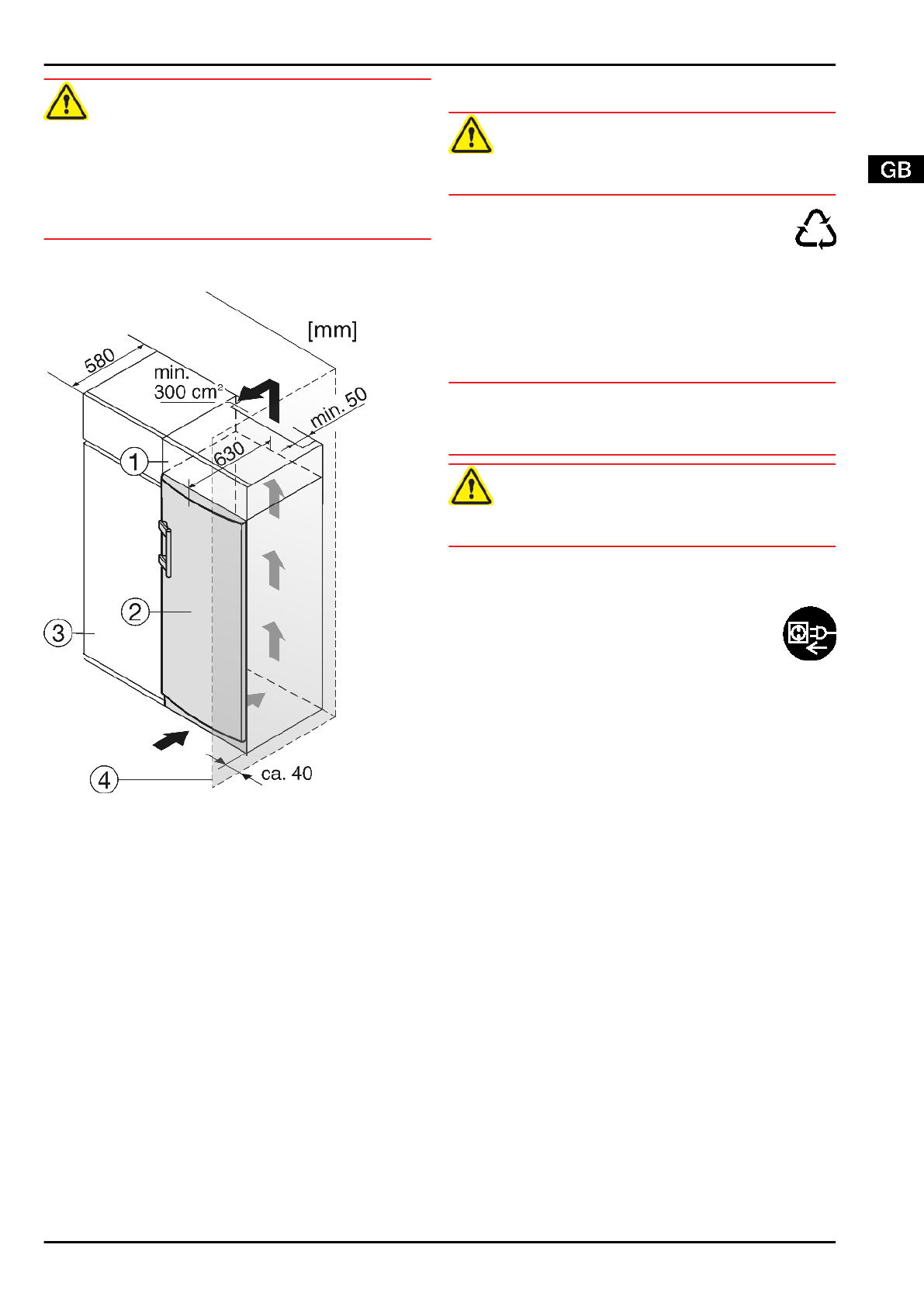

Fig. 9

(1) Stack cabinet

(3) Kitchen cabinet

(2) Appliance

(4) Wall

When  inserting  the  appliance  into  a  row  of  kitchen  units  (max.

depth  580  mm),  the  appliance  can  be  installed  directly  next  to

the  kitchen  unit

  Fig.  9  (3).  The  appliance  door  projects  relative

to  the  front  of  the  kitchen  unit  by  34  mm  at  the  side  and  by

50  mm  in  the  middle  of  the  appliance.  It  can  be  opened  and

closed perfectly as a result.
Important for the ventilation:

-

At the back of the stack cabinet there has to be a ventilation

duct  of  at  least  50  mm  depth  throughout  the  width  of  the

stack cabinet.

-

The  ventilation  space  under  the  ceiling  has  to  be  at  least

300 cm

2

.

-

The larger the ventilation space, the more energy-saving the

appliance is in operation.

If  the  appliance  is  installed  with  the  hinges  next  to  a  wall

Fig. 9 (4), the distance between appliance and wall has to be at

least  40  mm.  This  corresponds  to  the  projection  of  the  handle

when the door is open.

4.5 Disposing of packaging

WARNING

Danger of suffocation due to packing material and plastic film!

u

Do not allow children to play with packing material.

The packaging is made of recyclable materials:

-

corrugated board/cardboard

-

expanded polystyrene parts

-

polythene bags and sheets

-

polypropylene straps

-

nailed wooden frame with polyethylene panel*

u

Take the packaging material to an official collecting point.

4.6 Connecting the appliance

NOTICE

Risk of damage to the electronic control system!

u

Do  not  use  stand-alone  inverters  (conversion  of  d.c.  to  a.c./

three-phase) or energy saving plugs.

WARNING

Fire and overheating hazard!

u

Do not use extension cables or multiple socket outlets.

The  type  of  current  (alternating  current)  and  voltage  at  the

installation site have to conform with the data on the type plate

(see Appliance at a glance).

Connect  the  appliance  only  with  a  properly  installed

socket outlet with earthing contact. The socket outlet

must be fused with 10 A or higher.
It must be easily accessible so that the appliance can

be quickly disconnected from the supply in an emer-

gency.

u

Check the electrical connection.

u

Plug in the power plug.

4.7 Switching on the appliance

u

Press On/Off button

 Fig. 3 (3).

w

The temperature display indicates the current temperature.

w

The interior light is on when the door is open.

5 Control

5.1 Brightness of the temperature

display

You can adjust the brightness of the temperature display to the

light conditions of the room in which the appliance is installed.

5.1.1 Adjusting the brightness

The  brightness  is  adjustable  between

h0

  (no  illumination)  and

h5

 (maximum luminosity).

u

To  activate  the  setting  mode:  press  SuperCool  button

Fig. 3 (2) for about 5s.

w

The display indicates

c

.

w

The menu symbol

 Fig. 3 (5) shines.

u

Using  the  Up  setting  button

  Fig.  3  (7)  and  Down  setting

button

 Fig. 3 (6), select

h

.

u

To confirm: briefly press the SuperCool button

 Fig. 3 (2).

Control

7
