RU - 14
Customer Helpline
0845 600 4632
9
Installation
Installation
Installation

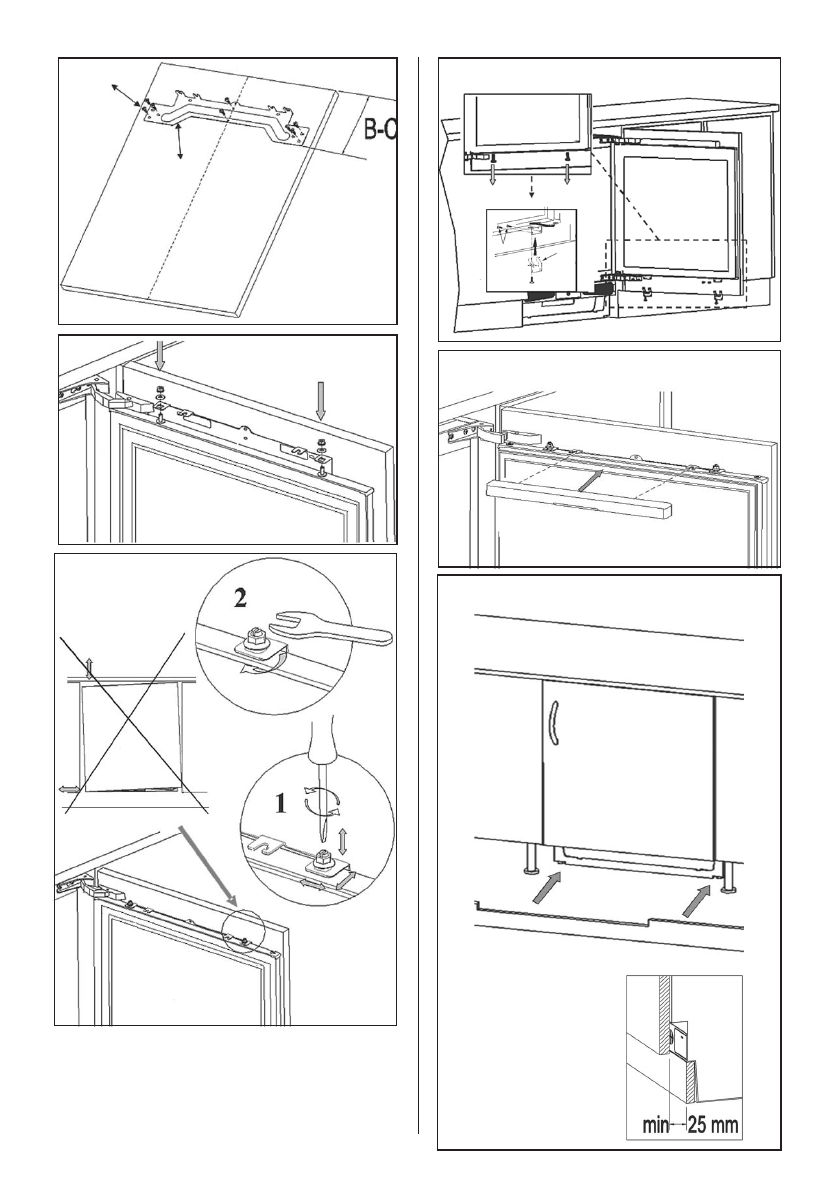

Fitting the cabinet door
a: Unscrew and remove the nuts and washers
from the appliance door.
b: Place door hang on the appliance door by
inserting the holes to adjustment bolts.
c: Dimension B= Measure from the underside
surface of kitchen unit to the bottom of door
hang.Dimension C= Measure from the underside
surface of kitchen unit to the top of next unit
door.
d: Subtract C from B and place door hang (B)
using this dimension for vertical position and
place to the centre for horizontal position.
e: Screw the door hang (B) using screws (A).
f: Place the cabinet door onto the appliance door
by inserting adjustment bolts into the slots on the
door hang.
g: Place the washers and screw the nuts onto the
adjustment bolts.
Continued on next page
7
8
9
B
A
Customer Helpline
0845 600 4632
9
Installation
Installation
Installation
Fitting the cabinet door
a: Unscrew and remove the nuts and washers
from the appliance door.
b: Place door hang on the appliance door by
inserting the holes to adjustment bolts.
c: Dimension B= Measure from the underside
surface of kitchen unit to the bottom of door
hang.Dimension C= Measure from the underside
surface of kitchen unit to the top of next unit
door.
d: Subtract C from B and place door hang (B)
using this dimension for vertical position and
place to the centre for horizontal position.
e: Screw the door hang (B) using screws (A).
f: Place the cabinet door onto the appliance door
by inserting adjustment bolts into the slots on the
door hang.
g: Place the washers and screw the nuts onto the
adjustment bolts.
Continued on next page
7
8
9
B
A
10
Customer Helpline
0845 600 4632
Installation
h: Close the door and check the alignment with
the other cabinet doors.
i: Make the adjustment of the unit door by
screwing or unscrewing the adjustment bolts for
vertical adjustment and by the help of the slots
on the door hang for other directions.
j: Tighten the nuts to fi x the bracket.
k: Remove the screws at the bottom of the
appliance door.
l: Place the door bottom fi xings (C) and screw
the fi xings to the appliance door and the cabinet
door using screws (
A).
Continued on next page
10
11
A
C
10
Customer Helpline
0845 600 4632
Installation
h: Close the door and check the alignment with
the other cabinet doors.
i: Make the adjustment of the unit door by
screwing or unscrewing the adjustment bolts for
vertical adjustment and by the help of the slots
on the door hang for other directions.
j: Tighten the nuts to fi x the bracket.
k: Remove the screws at the bottom of the
appliance door.
l: Place the door bottom fi xings (C) and screw
the fi xings to the appliance door and the cabinet
door using screws (
A).
Continued on next page
10
11
A
C
Customer Helpline
0845 600 4632 11
Installation
m: Slide the hang cover (D) onto the door hang
(
B).
a: Position the plinth providing minimum 25 mm
gap between the cabinet door and fi x it.
12
13
D
Installation
Installation
Installing the plinth
Customer Helpline
0845 600 4632 11
Installation
m: Slide the hang cover (D) onto the door hang
(
B).
a: Position the plinth providing minimum 25 mm
gap between the cabinet door and fi x it.
12
13
D
Installation
Installation
Installing the plinth
Customer Helpline
0845 600 4632 11
Installation
m: Slide the hang cover (D) onto the door hang
(
B).
a: Position the plinth providing minimum 25 mm
gap between the cabinet door and fi x it.
12
13
D
Installation
Installation
Installing the plinth
