3. OPERATION

Before you do operation:

WARNING! Risk of physical injury!

 Cut injury when the blade turns or the product starts

accidentally.

v

  Wait for the blade to stop, disconnect the product from

the mains and use gloves before you connect or transport

the product.

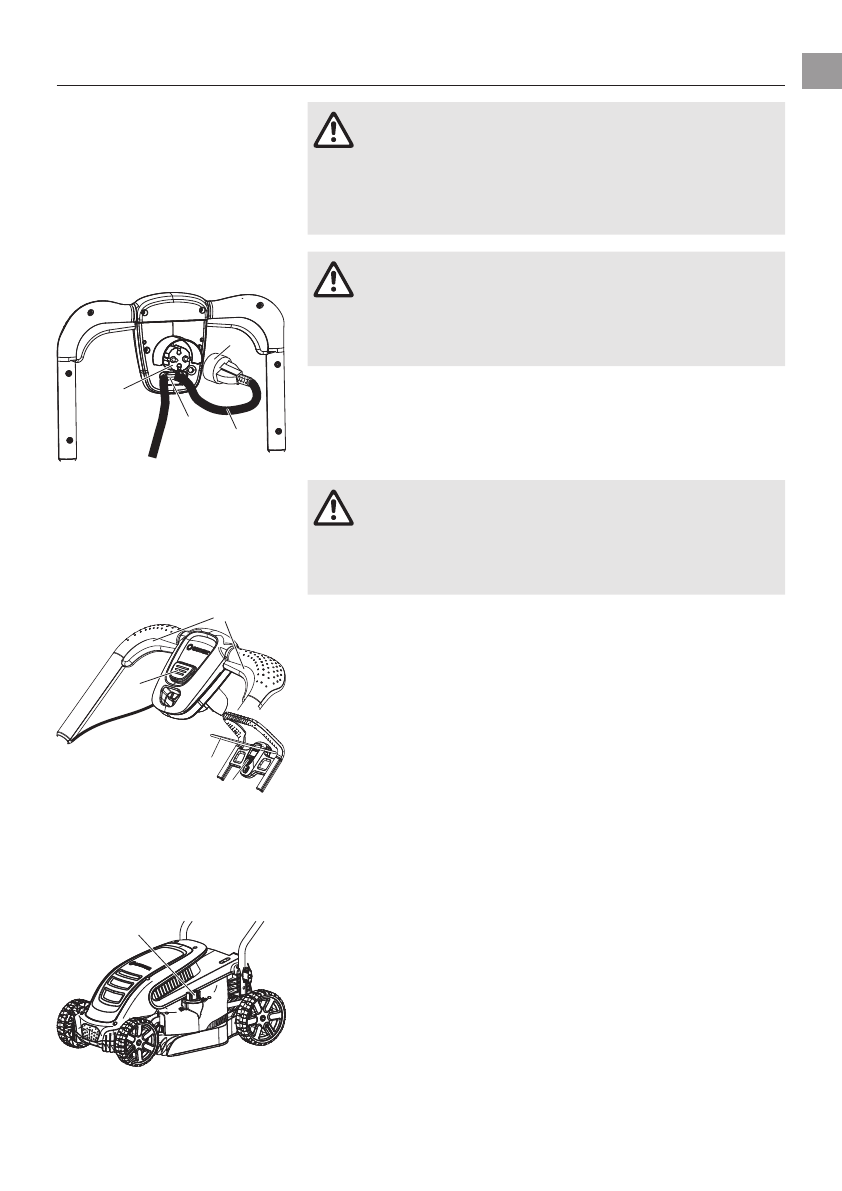

To connect the mower:

r

t

e

w

WARNING! Risk of electric shock!

 To avoid damage to the plug

(14)

 the extension cable

(13)

must be inserted into the cable lock

(15)

.

v

  Before you operate insert the extension cable

(13)

 into the

cable lock

(15)

.

1.  Connect the socket

(12)

 of the extension cable

(13)

 to the plug

(14)

.

2.  Loop the extension cable

(13)

, insert the loop into the cable lock

(15)

and pull tight.

3.  Connect the extension cable

(13)

 into a 230 V mains socket.

To start the mower:

z

u

z

u

WARNING! Risk of physical injury!

 Risk of injury if the product does not stop when you

release the start lever.

v

  Do not bypass the safety devices or switches.

For example do not attach the start lever

(17)

 to the handle.

To start:
The product is fitted with a two-handed safety device (start

lever

(17)

 with safety interlock

(16)

) to prevent the product from

being turned on by accident. Contact the GARDENA service

if this is not garanteed.
There are two start levers

(17)

 fitted. Either one have to be used to

start.
1.  Push the safety interlock

(16)

 with one hand and pull the start

lever

(17)

 with the other hand.

2.  Release the safety interlock

(16)

.

The product will start.

To stop:
1.  Release the start lever

(17)

.

To adjust the cutting height:

o

The cutting height can be adjusted from 2 to 6 cm in 12 positions.
1.  Push and turn the adjust wheel

(19)

 clockwise to lower the cutting

height.

2.  Push and turn the adjust wheel

(19)

 counterclockwise to increase

the cutting height.
