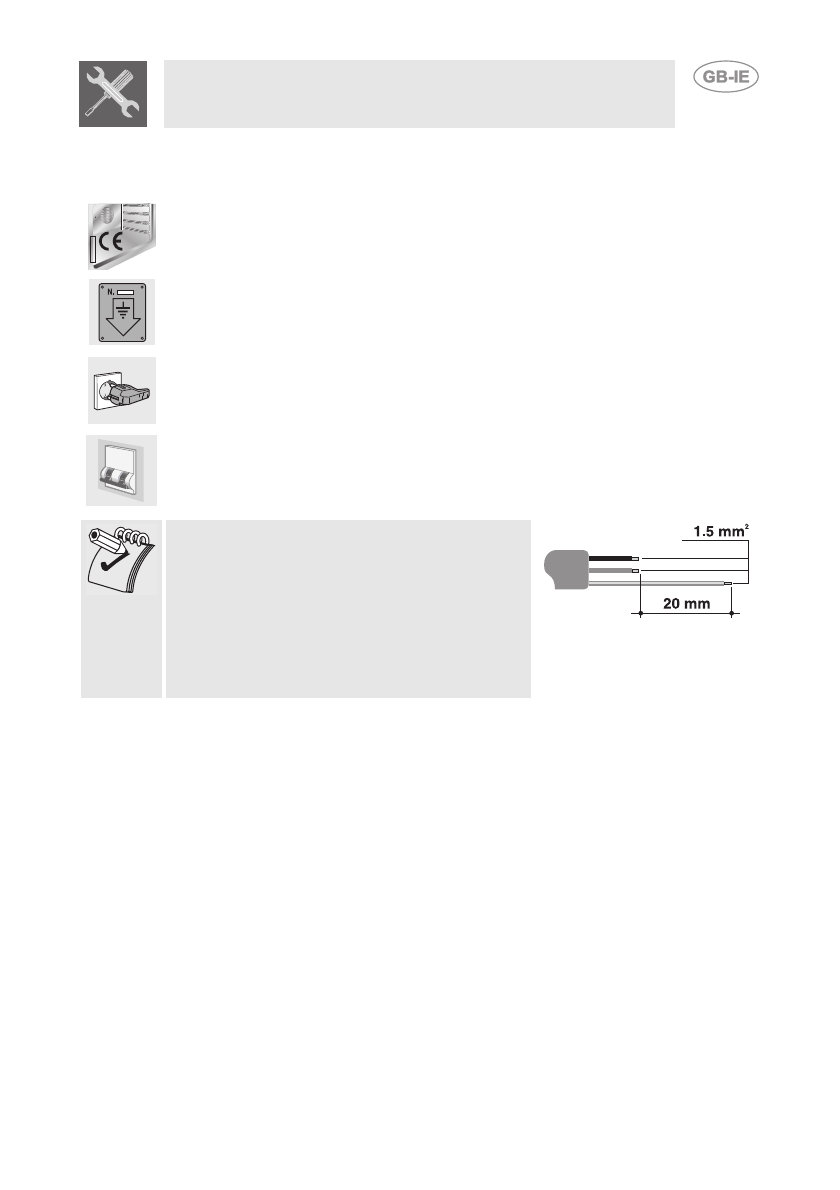

Instructions for the installer

14. INSTALLING THE APPLIANCE

14.1 Electrical connection

The I.D. plate with technical data, registration number and brand name is
positioned visibly on the oven door frame.
The plate must not be removed.

It is obligatory for all electrical system to be grounded according to the
methods required by safety rules.

If a fixed connection is being used fit power line with an omnipolar circuit
breaker with a contact opening gap equal to or greater than

3 mm

, in an

easily accessible position in proximity to the oven.

If a plug and socket connection is being used make sure that the plug and
socket are compatible. Avoid use of adapters and shunts as these could
cause overheating and risk of burns.

For operation on 220-240V~:

 use an

H05RR-F / H05RN-F type three-core cable (3

x 1.5 mm

2

).

The cable end to be connected to the
appliance must be provided with a ground
wire (yellow-green) at least 20 mm longer.

14.2 Positioning the oven

The oven is designed for mounting into any piece of furniture as long as it
is heat-resistant. Proceed acording to the dimensions shown in Figures

1

,

2

 and

3

. For installing under a work top, follow the dimensions given in

Figure

1

-

3

. For installing under a work top with combined heating plates,

ensure a minimum clearance from any side walls of at least 110 mm as
shown in Figure

1

. For installing in a column, follow the dimensions given

in Figure

1

-

2

, allowing for a clearance of 80 to 90 mm at the top and sides

of the column. Tighten the 4 screws

A

inside the frame (fig.

1

). For

installing beneath a non-integrated top, allow for a rear and bottom
clearance as shown in Figure

1

(ref.

B

). See relevant instructions for fitting

and securing the cook top.
