SM-07

7

8

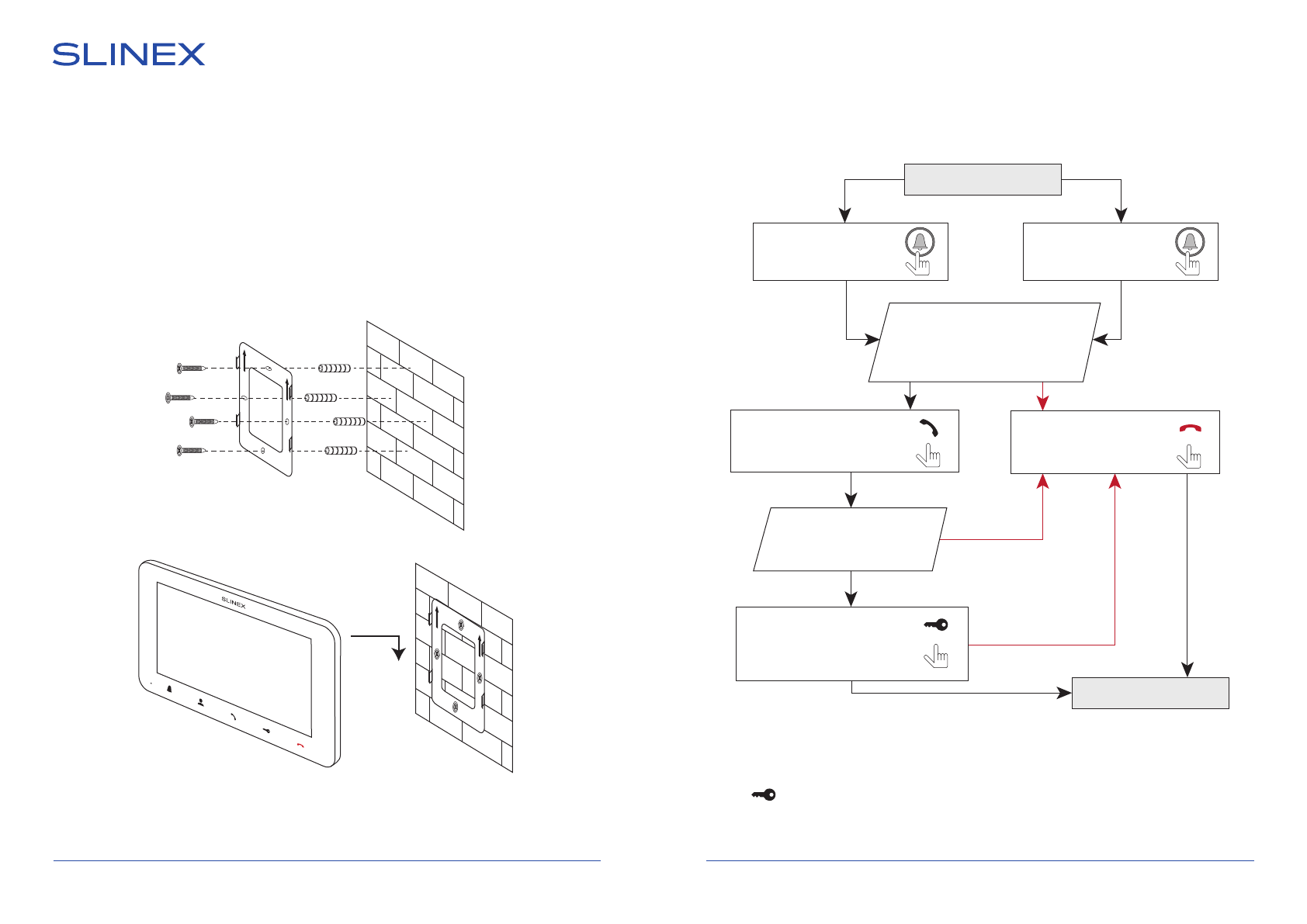

5. Operation

5.1. Incoming call

Standby mode

Standby mode

Melody is ringing on the

monitor and door panel,

image from the door panel

appears on the monitor screen

Visitor presses call button
on the first door panel

Visitor presses call button
on the second door panel

Press «Answer» button to start
conversation with the visitor

Melody stops ringing and

conversation starts,

talking  time is 120 seconds

Press «Hang up» button to
stop conversation or
incoming call

Press «Unlock» button to open
lock connected to the current
door panel, relay built into the
panel will open the lock

Notes:

1) Monitor will be automatically switched into standby mode if the user doesn’t answer incoming call
during 60 seconds;
2) Image and sound from the door panel will be active during 20 seconds after the moment  user   presses
                      button. It let the user know if the visitor passed through the door.

20 seconds

4.3. Unit mount

1) Take the surface mount bracket from the kit and place it 150-160 cm from the floor line;
2) Mark and drill four halls in the wall;
3) Take four nuts from the kit and hammer them into the drilled halls;
4) Fix surface mount bracket on the wall by four screws from the kit;
5) Connect all communication wires and fix the monitor on the surface mount bracket.
