Before making connections, make sure that the amplifier is
switched off.

• Connect the screw-type input terminals at the rear of the

speakers to the speaker output terminals of the amplifier (or
receiver) with the speaker cable.

• Connect the (+) terminals on the amplifier (or receiver) to the

(+) terminal of each speaker, making sure to confirm the color-
coded wire of the cable at each end. Use the other wire of the
cable to connect the (–) terminals of the components.

• Connect one speaker to the left (marked L) terminals of your

amplifier, and another speaker to the right (marked R)
terminals, making sure not to reverse the polarity (+, –). If one
speaker is connected with reversed polarity the sound will be
unnatural and lack bass.

■

How to connect

1

Loosen the knob.

2

Remove 10 mm (3/8”) of insulation from each end of the
cables, and twist the exposed conductors together neatly and
tightly, as shown below.

3

Insert the bare wire.

4

Tighten the knob and secure the cables.
Test the firmness of the connection by pulling lightly on the
cables at the terminal.

Notes

• Do not let the bare speaker wires touch each other as this

could damage the speaker or the amplifier, or both.

• Do not insert the insulation into the hole. Sound may not be

produced.

■

When using a banana plug

Note

Do not take off this cover unless using a banana plug.

1

Remove the cover by pulling it toward you.

2

Tighten the terminal knob.

3

Simply insert the banana plug into the terminal.

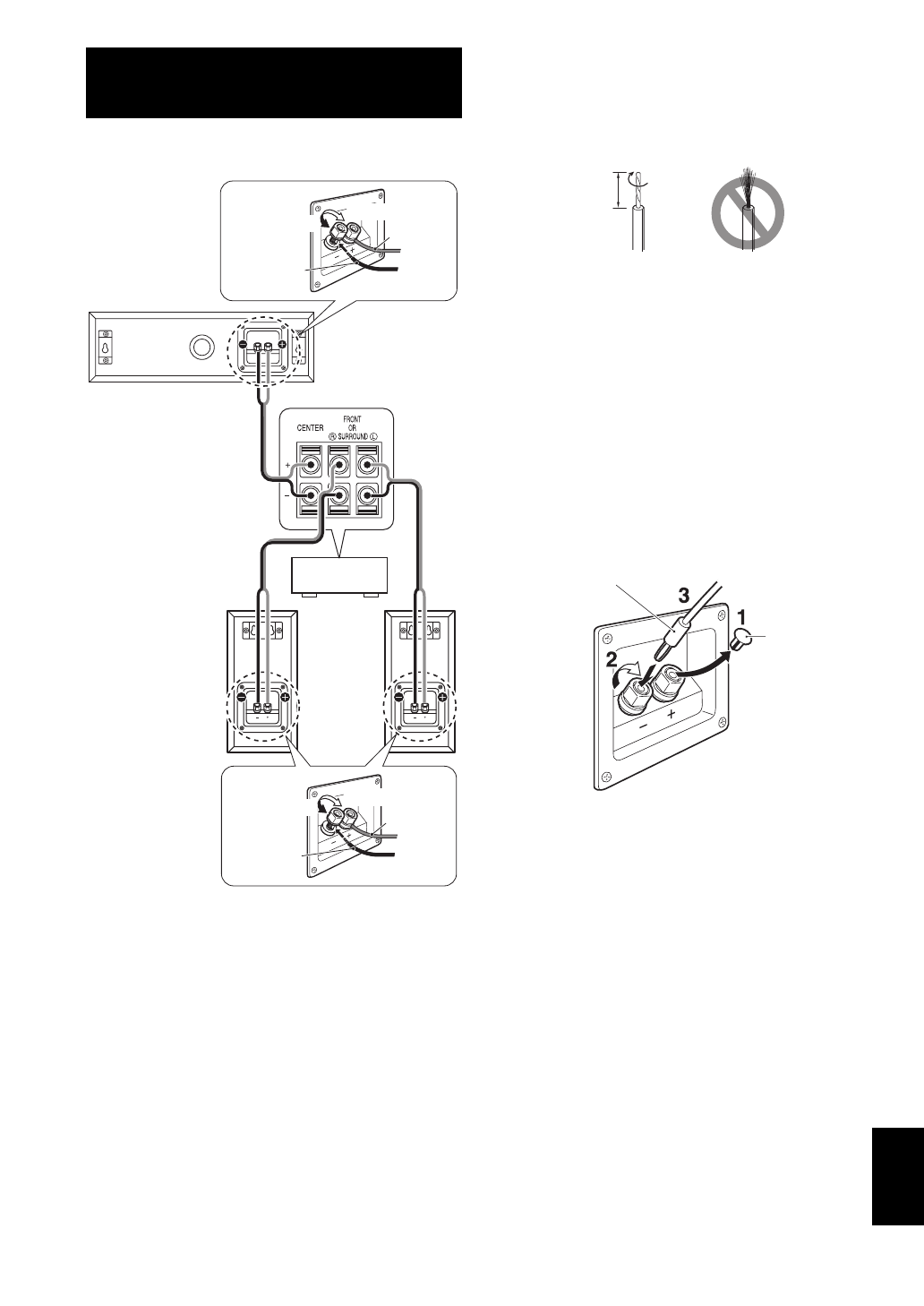

CONNECTIONS TO YOUR

AMPLIFIER

Loosen

Black (–)

Tighten

Red (+)

NS-B210

Amplifier or

receiver

NS-C210

NS-B210

Loosen

Black (–)

Tighten

Red (+)

Good

No Good

10 mm

(3/8 ”)

Banana plug

Cover
