Active speaker panels

a

 PC: PC input power indicator

b

 DVD: DVD input power indicator

c

 AUX: AUX input power indicator

d

 Bass: LF regulation indicator

e

 Treble: HF regulation indicator

f

 INPUT: standby mode/audio source  selection button:

PC/DVD/AUX

g

 MODE: mode selection button: HF timbre, LF timbre

h

 VOL-: volume up button

i

 VOL+: volume down button

j

 PC: PC input for connection audio source

k

 DVD: DVD input for connection audio source

l

 AUX: AUX input for connection audio source

m

 POWER ON/OFF:  power switch

n

 Power cable jack

o

 Output jack for passive speaker connection

Remote control

(Fig. 3)

a

    : Standby mode button

b

     : Mute button

c

 RESET: reset button

d

 VOLUME +/-: volume up/down button

e

 TREBLE +/-: treble level up/down control button

f

 BASS +/-: bass level up/down control button

g

 AUX: AUX audio source selection button

h

 DVD: DVD audio source selection button

i

 PC: PC audio source selection button

Notes:

• Before operating the RC, extract the batteries,

remove the

fi

lm protecting the batteries from dis-

charge during transportation, and insert the bat-

teries back into the RC.

• Use the remote control at an angle no more

than 30 degrees, no more than 7 meters away

from the IR receiver.

• Direct the RC at the IR receiver display on the

control panel.

• If the RC is not working, check the batteries and replace the discharged batteries with a

new ones.

• Remove the batteries from the remote control if the device is left unused for a long period

of time (more than a week).

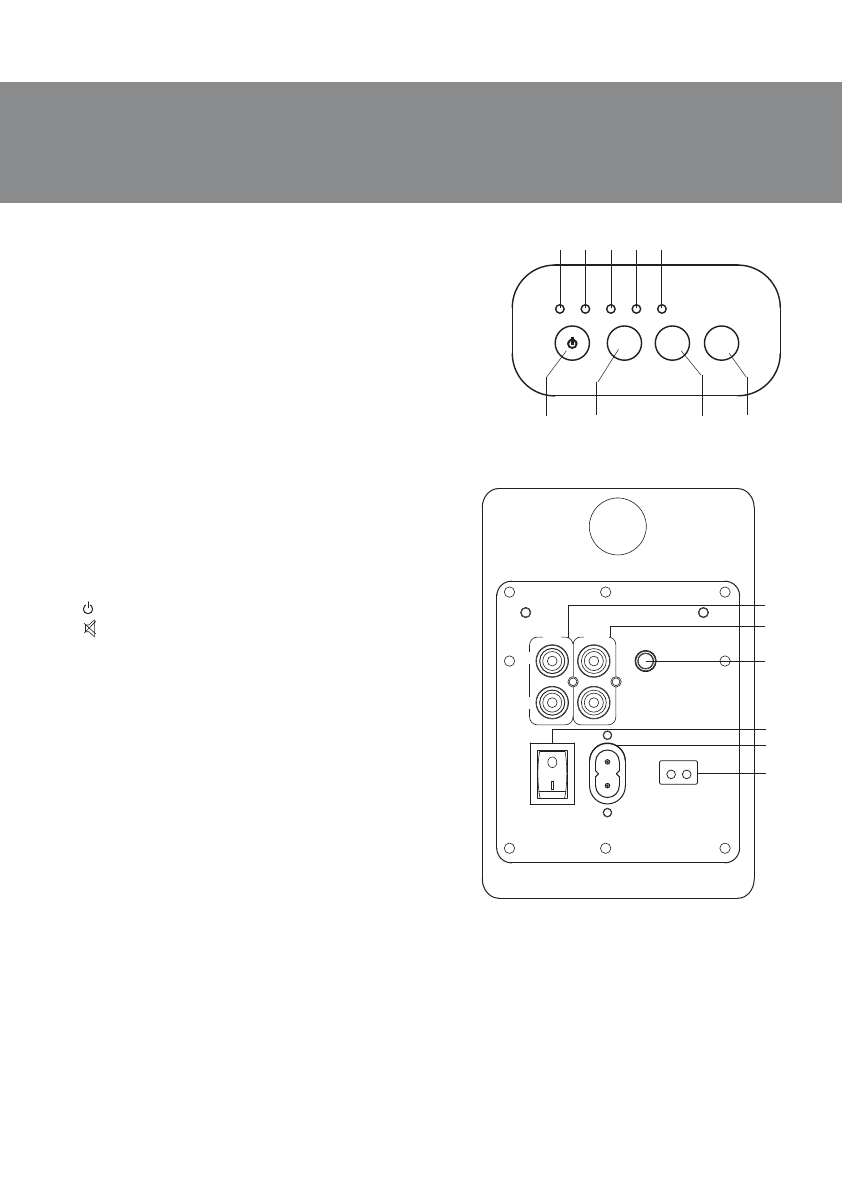

Fig. 2. Active speaker

rear panel

Fig. 1. Control panel

m

POWER

ON

OFF

PC

DVD

AUX

~100V-240V/50Hz-60Hz

R

L

–

+

n
o

l

k

j

SPEAKER OUT
