Operation Manual

MS-940

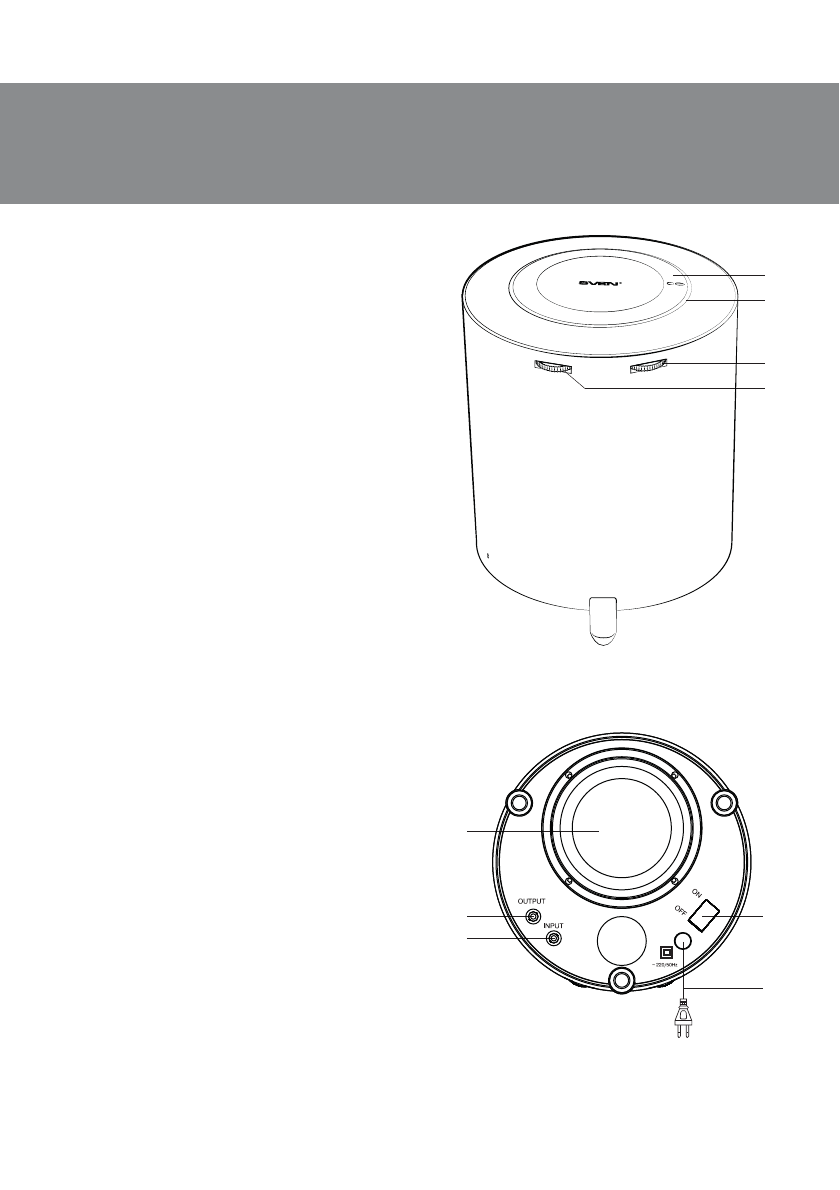

Fig. 2. Subwoofer bottom panel

Fig. 1. Subwoofer front view

c

a
b

d

BASS

+

–

TREBLE

–

+

VOLUME

+

–

POWER

f

e

g

i

h

Subwoofer front view

a

 VOLUME:  master volume control knob

b

 Power LED

c

 TREBLE: treble level control wheel

d

 BASS: subwoofer volume control wheel

e

 Woofer

Subwoofer bottom panel

f

 OUTPUT: speaker output

g

 INPUT: audio source input

h

 POWER ON/OFF:  power switch

i

 Power cord

5. PREPARATION AND OPERATION

Speaker placement

•

Place speakers symmetrically to the listener at

the distance not less than one meter. Subwoofer

emits non-directional sound, therefore it can be

located in any place of the room, where it will sound

to the best advantage.

•

Place MSS far away from monitors and TV sets,

as insigni

ԛ

cant image distortion in these supersen-

sitive devices is possible.

Installation and operation

MS-940 Multimedia Speaker System can be con-

nected to virtually any audio source: DVD/CD, PC

sound card, etc. (see Fig. 3).

Note! Before connecting, make sure that the

device is unplugged.

•

Connect audio cable built-in speakers into OUTPUT

f

 of subwoofer bottom panel, as shown in Fig. 3.

•

Insert mini-jack of signal cable (included) into

subwoofer INPUT

g

 and opposite mini-jack of

signal cable connect into LINE OUT port of PC sound

card or OUTPUT of

ǀDŽ

3/CD-player (see Fig. 3). To

connect MSS to DVD-player or TV use stereo signal

cable mini-jack to 2RCA (not included) or adapter

mini-jack to 2RCA (not included) with stereo signal

cable mini-jack to mini-jack (included).

•

Insert plug of power cord

i

 on the b

Ǣ

ttom panel

of subwoofer into the socket (see Fig. 2).

•

 Adjust master volume level to its minimum by

turning master volume control VOLUME

a

 coun-

terclockwise until it stops.
