L

R SUB OUT

~220V/50Hz

AUDIO INPUT

Power cord

2RCA to mini-jack

signal cable

2RCA to 2RCA

signal cable

SUBWOOFER

Audio cable

CD

PC

DVD

Player

MSS Connecting

MS-230 Multimedia Speaker System can be connected to virtually any audio source: DVD/CD, PC

sound card etc. (see connection diagram below, Fig. 3) and also an active subwoofer if necessary.

•

 Before making any connections, make sure that the speaker system is unplugged. Then connect

the speakers to each other: insert the positive wire of the audio cable into the red jack «+» and the

negative wire into the white jack «-» of the connection terminals (see Connection diagram above).

Start with the passive speaker, then connect the cable to the active one.

•

 Connect the RCA jacks of the signal cable to the L and R terminals

k

, then connect the mini-jack

(Ø 3,5 mm) of the included 2RCA to 3.5 mm mini-jack signal cable to the output of the PC sound card

or audio output of another sound source. An active subwoofer can be connected (see connection

diagram Fig. 3).

Notes:

•

To connect the speaker system to a DVD/CD-player, use a 2RCA to 2RCA stereo signal

cable (not included) or a mini-jack to 2RCA adapter (not included).

•

Check the reliable

Н

xation of wires in the connection terminals, polarity of connection and

absence of contact between the bared wires and the metal parts of the hardware.

•

Please pay special attention to reliability of cables

Н

xation in the jacks, otherwise consi-

derable noise can be observed during music reproduction.

•

 Insert the plug of the power cord

l

 into a mains socket. Adjust the volume level to its minimum

by turning the VOLUME control knob

g

 counterclockwise until it stops.

•

 Switch on the device (

e

, ON position), the power LED

d

 lights up.

•

 Switch on the audio source.

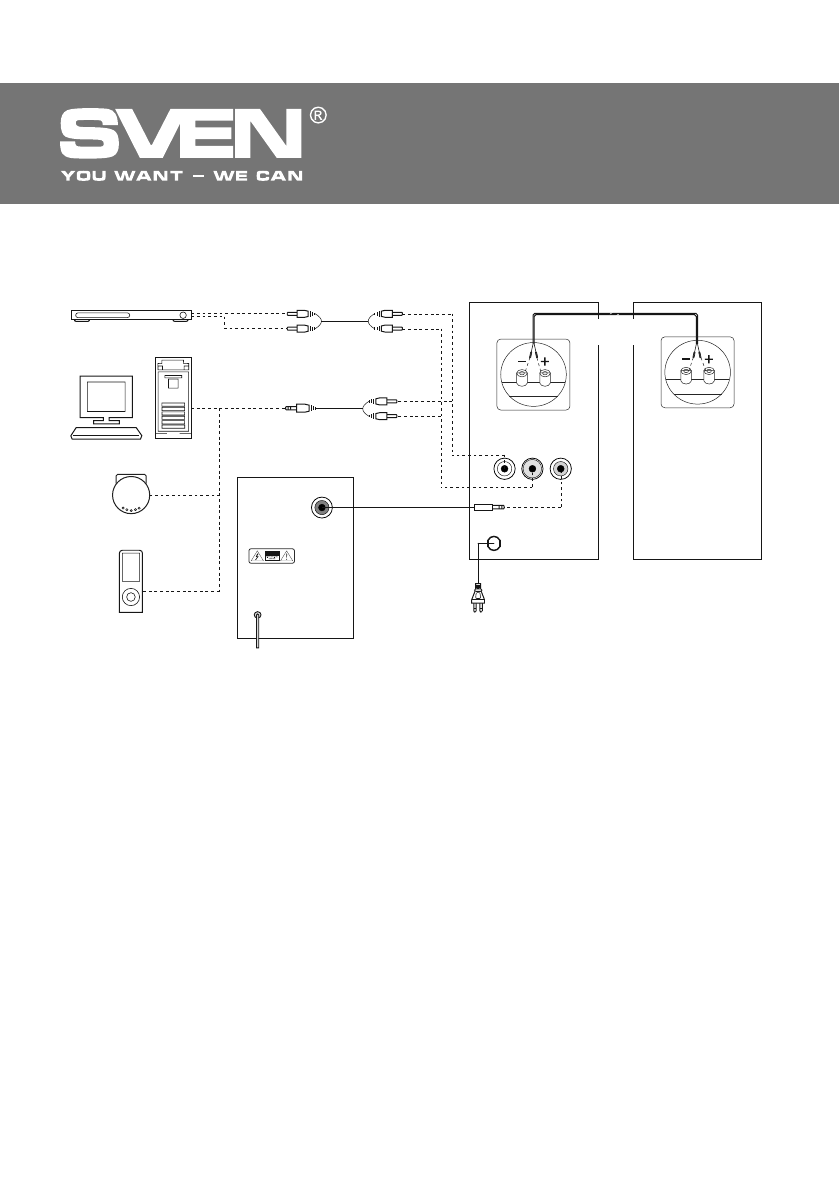

Fig. 3. Connection diagram

ENG

18

2.0 Multimedia Speaker System
