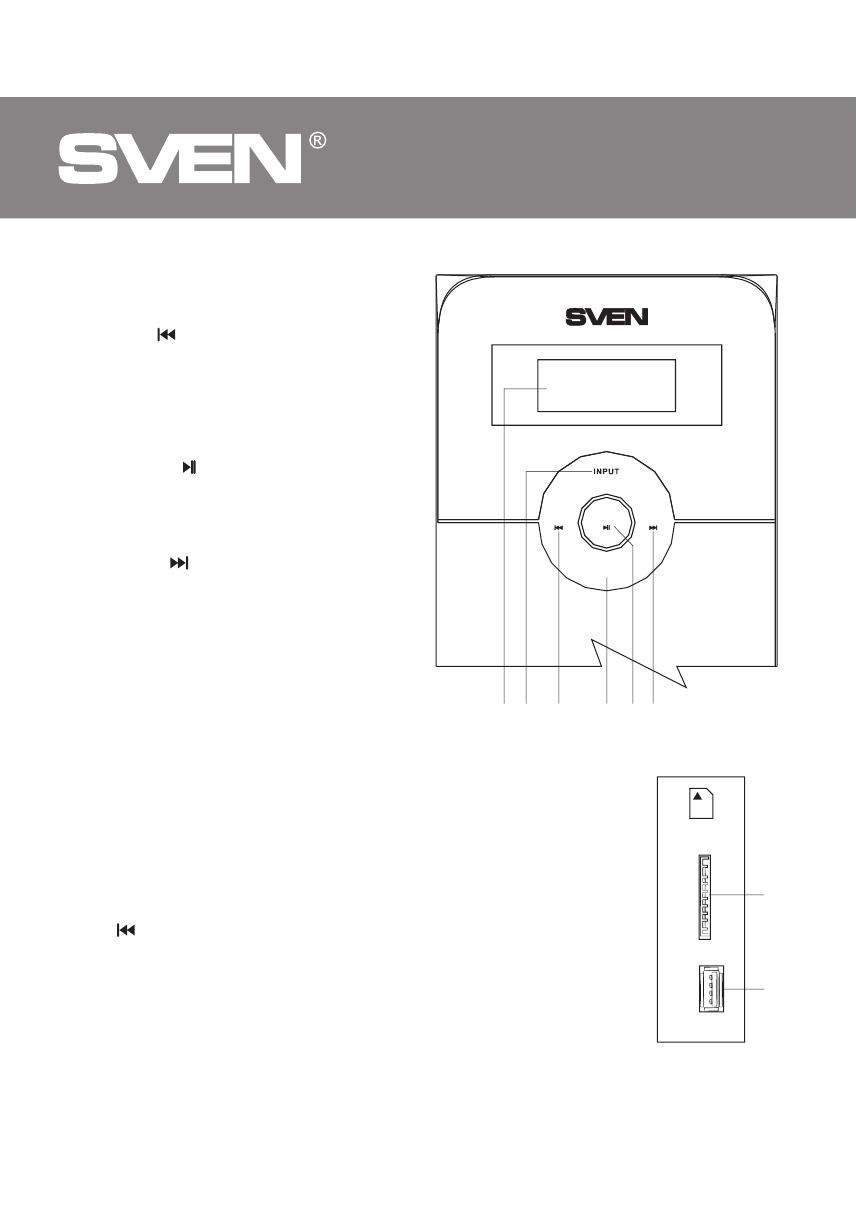

Fig. 2. Subwoofer side panel

Subwoofer control panels

a

 LED display

b

  INPUT:  input  switch,  PC/AUX/FM/Player/

Bluetooth mode switch (pressed short)

c

 VOL-/СН-/     :  previous track (pressed short in

the Player and Bluetooth mode)

;

previous  station

*

  (pressed  short  in  the  Tuner

mode)

;

volume/timbre down (pressed long)

d

 TIMBRE: bass/treble selection (pressed short

in any mode)

e

 ST-BY/AUTO/     : play/pause (pressed short in

the Player and Bluetooth mode)

;

start/stop auto scan (pressed short in the Tuner

mode)

;

Standby mode (pressed long in any mode)

f

 VOL+/СН+/         :  next  track  (pressed  short  in

the Player and Bluetooth mode)

;

next station

*

 (pressed short in the Tuner mode)

;

volume/timbre up (pressed long)

g

 SD/MMC CARD: slot for SD/MMC cards**

containing МР3 audio files

h

 USB: slot for a USB flash device** containing

МР3 audio files

i

 ON/OF

F

:  power switch

(see Fig. 3)

j

 Power cord

k

 RADIO ANT: radio antenna input jack

l

 PC AUDIO INPUT: PC input jack

m

 AUX AUDIO INPUT: line input jack

n

 AUDIO OUTPUT: satellite output terminals

Remote control

(see Fig. 4)

Fig. 1. Subwoofer control panel

ENG

22

2.1 Multimedia Speaker System

g

h

SD/MMC

CARD

USB

+

+

VOL- CH

VOL CH

-

TIMBRE

ST.BY/

/

/

AUTO

b

a

c

d e f

a

 INPUT: the MSS mode selection

b

 TREBLE-/+: treble level up/down

c

 TUNE+/-: manual band scanning (in the Radio mode)

d

 CH-/       : previous track (pressed short in the Player mode)

previous station** (pressed short in the Radio mode)

e

 BASS-/+: bass level up/down

f

 SW+/-: subwoofer volume level control

g

 0-9: numeric pad

h

 REPEAT: player operation mode selection

i

 RESET: return to default settings

j

 CLOCK: current time display

k

 VOL+/-: volume level control

l

 SET: current time setting
