2.1 Multimedia Speaker System

•

Built-in FM radio and built-in clock

•

 Alphanumeric LED display

•

USB flash port and SD card slot

•

 Two switchable inputs

•

 Remote control

•

 MUTE, SLEEP and ST-BY modes

•

 Wall mountable satellites

•

 Wooden (MDF) cabinets of the subwoofer

and satellites

Subwoofer control panels

a

 LED display

b

 MENU: shift button of timbre control modes

c

     /AUTO: Play/Pause (pressed short in the

Player mode)

;

Start/Stop auto scan (pressed short in the

Radio mode)

d

 The device switching on (the knob rotation to

any side from OFF mode);

volume level control (the knob rotation to the

right/left);

switching of inputs and PC/AUX/FM/ MP3/

Bluetooth modes (the knob pressed short)

e

 ST-BY : standby mode on / off button

f

 U DISK: port for a USB flash device*

containing  МР3 and WAV audio files

g

       /СН+: next track (pressed short in the Player

mode)

;

next station** (pressed short in the Radio mode)

h

      /СН-: previous track (pressed short in the

Player mode)

;

previous station** (pressed short in the Radio mode)

i

 SD/MMC CARD: slot for SD/MMC cards*

containing МР3, WAV audio files

j

 ON/OFF:  power switch

k

 Power cord

l

 RADIO ANT: radio antenna input jack

m

 PC AUDIO INPUT: jack to connect PC

n

 AUX AUDIO INPUT: jack to connect linear input

o

 AUDIO OUTPUT: jack to connect satellites

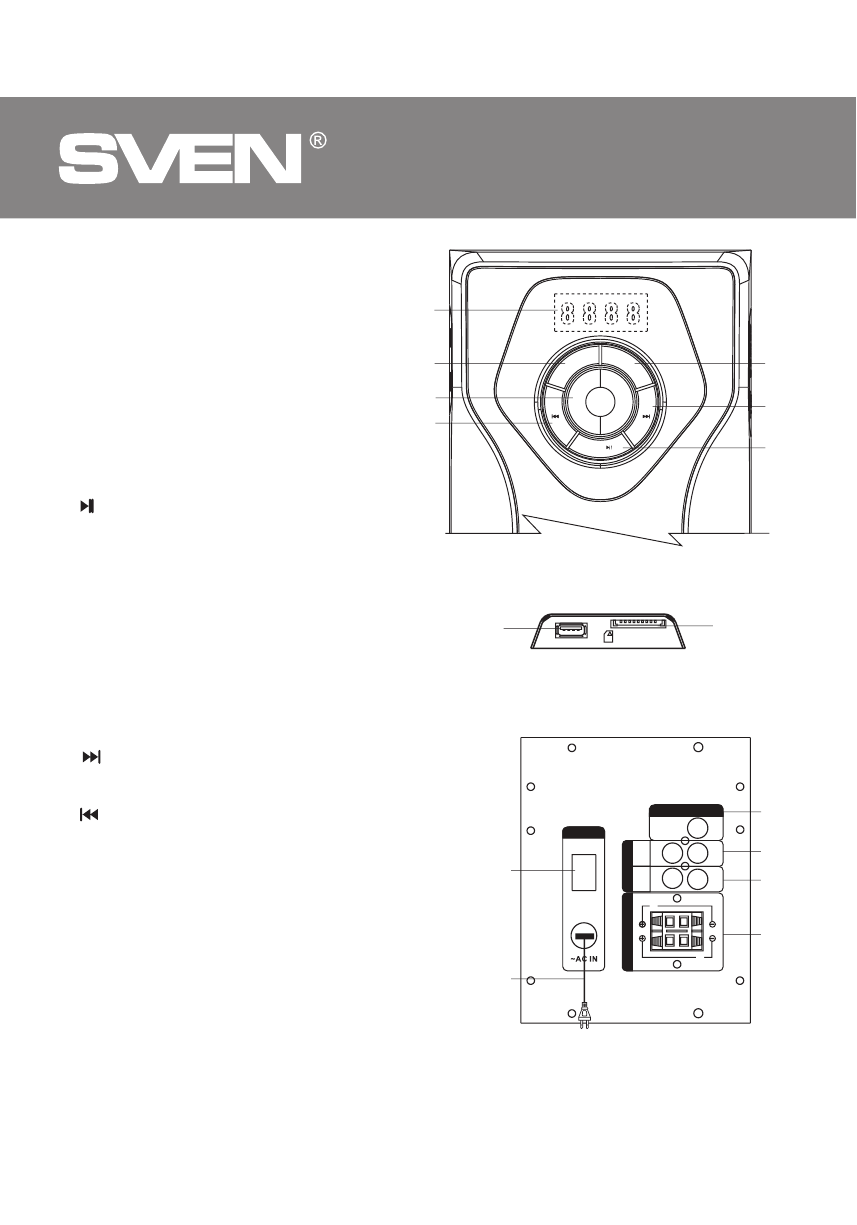

Fig. 1. Subwoofer control panel

Fig. 3. Subwoofer rear panel

 FM
ANT

l

m
n

o

k

j

A UX

PC

R

R

L

L
