HT-435D

Operation Manual

ENG

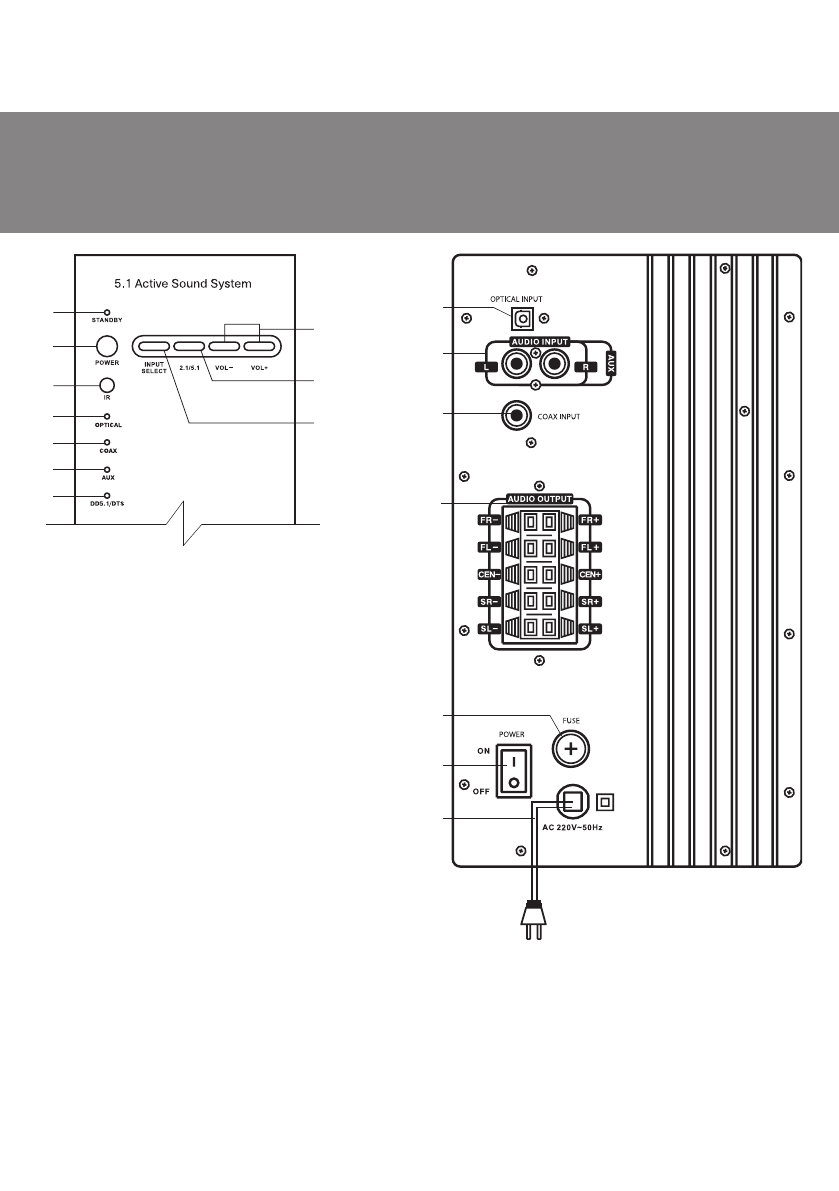

Fig. 1. Front control panel

25

•

 Remote control

•

 Wall mountable satellites

Subwoofer front panel

a

 STANDBY: STANDBY LED

b

 POWER: on/off button

c

 IR: IR window

d

 OPTICAL: OPTICAL mode LED

e

 COA X: coaxial input switch-on LED

f

 AUX: stereo input switch-on LED

g

 DD5.1/DTS: current digital signal format LED

h

 VOL-/VOL+: volume -/+ control button

i

 2.1/5.1: mode select button

j

 INPUT SELECT: input selector button

Subwoofer rear panel

a

OPTICAL INPUT: optical input

b

  AUDIO  INPUT:

  AUX  stereo  input  (left/right)  for

PC, CD/MP3 stereo players, etc.

c

 COAX INPUT: coaxial input

d

 AUDIO OUTPUT: output jacks for speakers

connection:

•

 FL/FR: left/right front channel output

•

 CEN:

center channel

output

•

 SL/SR: left/right

surround

 channel output

e

 FUSE:

safety fuse

f

 POWER: power on/off switch

g

 Power cord

Fig. 2. Rear panel

a

b

c
d
e

h

f

i

g

j

a

b

c

d

e

f

g
