Check  the  correctness  of  connection  polarity  and  the  absence  of  contact  between  bared  wires

and metal parts of the equipment (see connection diagram in Fig. 6).

Installing and connecting the FM antenna

•

Insert  the  included  indoor  FM  antenna  into  the  FM  ANT

i

  jack  on  the  subwoofer  rear  panel,  as

shown in Fig. 6. Install the FM antenna in such a way that reception quality is satisfactory, and then

fix the position of the antenna.

Note. In buildings with weak FM signal use an outdoor FM antenna.

Preparations

HT-210  speaker  system  can  be  connected  to  virtually  any  audio  source:  DVD/CD/MP3  player,  PC

sound card, etc. (see connection diagram, Fig. 7).

Caution! Before making any connections, make sure the MSS is off and unplugged.

•

 To connect the HTSS to PC sound cards, МР3/CD players, use the 2RCA to mini-jack signal cab-

les from the package. Connect the RCA jacks and mini-jacks, as shown in Fig. 7.

•

 To connect the HTSS to CD/DVD/AUX player or TV use the included 2RCA to 2RCA stereo signal

cables (not included) (see Fig. 7).

•

  To  connect  the  HTSS  to  TV  use  the  optical  cable  (included)  or  coaxial  cable  (not  included)  (see

Fig. 7).

Sound card,

CD player,

MP3 player

2RCA to mini-jack

signal cables

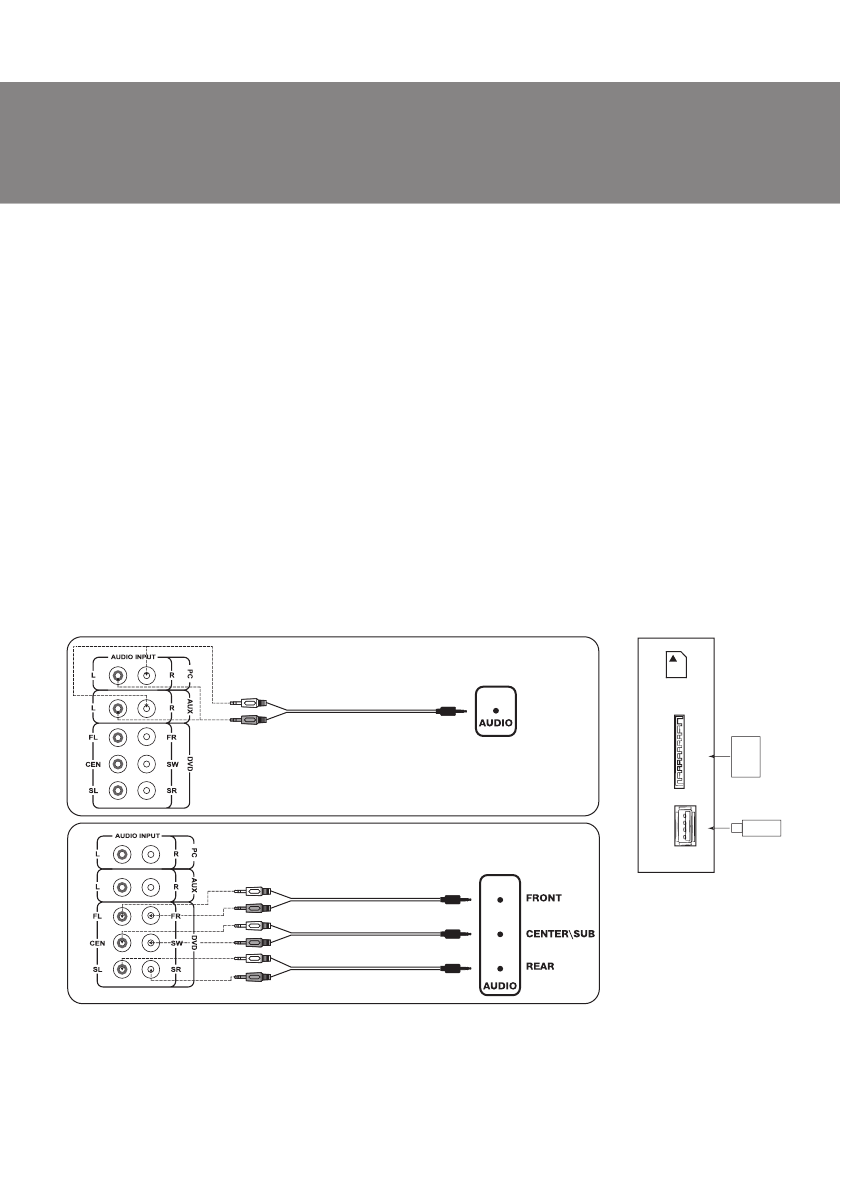

Fig. 7. Connection to audio sources

2RCA to mini-jack

signal cables

5.1-channel

sound card

SD/MMC

CARD

USВ

USB/SD-card

connection

SD

USB
