9

Operation

Use the high suction speed in cases of concentrated kitchen
vapours.  It is recommended that the cooker hood suction is
switched on for 5 minutes prior to cooking and to leave in
operation during cooking and for another 15 minutes
approximately after terminating cooking.

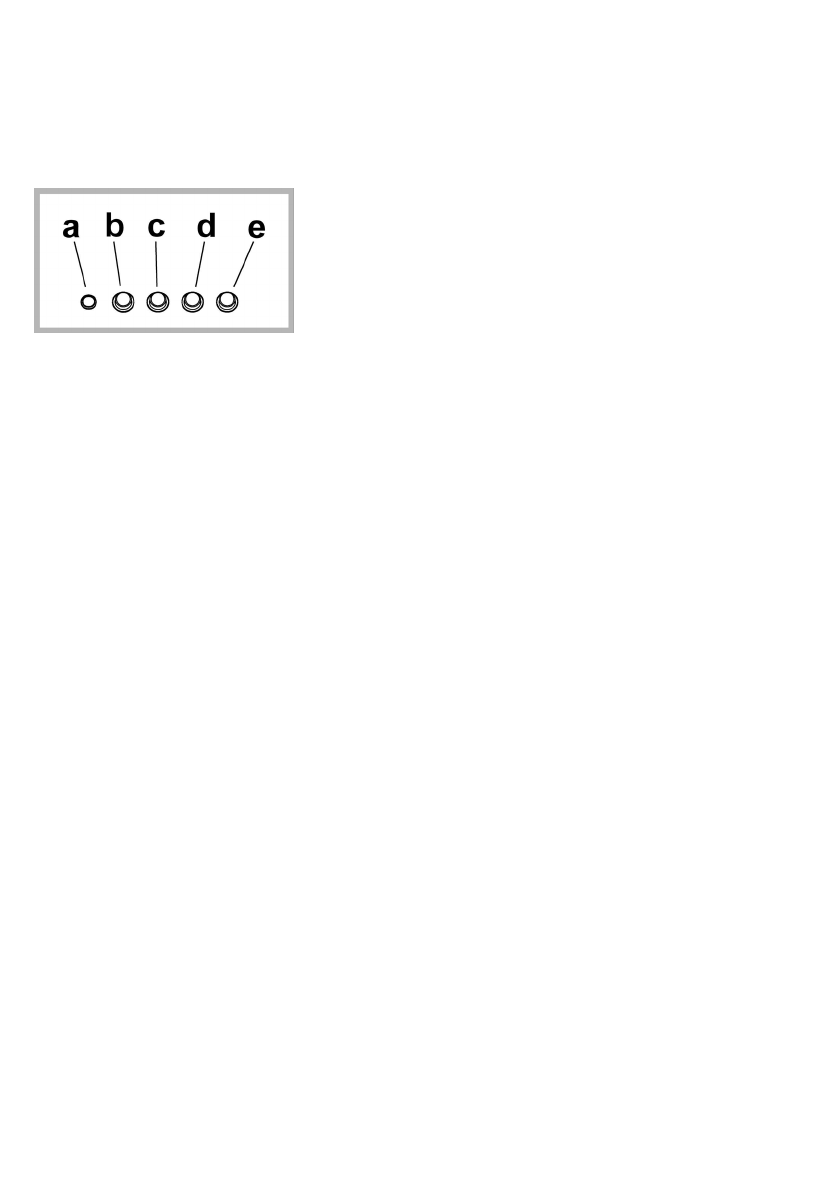

a.

 operating gauge.

b.

 on/off light switch

c.

 off aspiration switch

d.

 minimum power selection aspiration switch

e.

 medium power selection aspiration switch

f.

 maximum power selection aspiration switch

Maintenance

ATTENTION!

Before performing any maintenance operation,

isolate the hood from the electrical supply by switching off at
the connector and removing the connector fuse.
Or if the appliance has been connected through a plug and
socket, then the plug must be removed from the socket.

Cleaning

The cooker hood should be cleaned regularly (at least with the
same frequency with which you carry out maintenance of the
fat filters) internally and externally.  Clean using the cloth
dampened with neutral liquid detergent. Do not use abrasive
products.

DO NOT USE ALCOHOL!

WARNING:

Failure to carry out the basic cleaning

recommendations of the cooker hood and replacement of the
filters may cause fire risks.
Therefore, we recommend observing these instructions.
The manufacturer declines all responsibility for any damage to
the motor or any fire damage linked to inappropriate
maintenance or failure to observe the above safety
recommendations.

Grease filter

Fig. 9-24
Traps cooking grease particles.

This must be cleaned once a month (or when the filter
saturation indication system – if envisaged on the model in
possession – indicates this necessity)  using non aggressive
detergents, either by hand or in the dishwasher, which must
be set to a low temperature and a short cycle.
When washed in a dishwasher, the grease filter may discolour
slightly, but this does not affect its filtering capacity.
To remove the grease filter, pull the spring release handle.

Charcoal filter (filter version only)

Fig. 23
It absorbs unpleasant odours caused by cooking.

The saturation of the charcoal filter occurs after more or less
prolonged use, depending on the type of cooking and the
regularity of cleaning of the grease filter.
In any case it is necessary to replace the cartridge at least
every four mounths (or when the filter saturation indication
system – if envisaged on the model in possession – indicates
this necessity).The charcoal filter may NOT be washed or
regenerated.
Remove the grease filters.
Fit the charcoalfilters over the motor.
Align the

pins R

on the cowl with the

slots S

, then turn the

filter clockwise until it locks in place.
Reverse the above procedure to remove the charcoal filters.
Refit the grease filters.

Replacing lamps

Fig. 25

Disconnect the hood from the electricity.

Warning!

Prior to touching the light bulbs ensure they are

cooled down.


1.

  Using a flat head screwdriver or equivalent tool, carefully

pry loose the light cover.

2.

  Remove the damaged light and replace with a new 12

Volt, 20 Watt (Maximum) halogen light made for a G-4
base SUITABLE FOR USE IN OPEN LUMINAIRES.
Follow package directions and do not touch new light
with bare hands.

3.

  Reinstall the light  cover. (it will snap shut).


If the lights do not work, make sure that the lamps are fitted
properly into their housings before you call for technical
assistance.
